AmeriGlide Hercules II 750 Vertical Platform Lift - Residential
Call (800) 647-0916 for the absolute lowest price on this product.
| Your Price | $4,999.00 |
|---|---|
| Regular Price | $7,499.00 |
| Additional Shipping? | Yes |
|
Warranty Info Click Here |
|

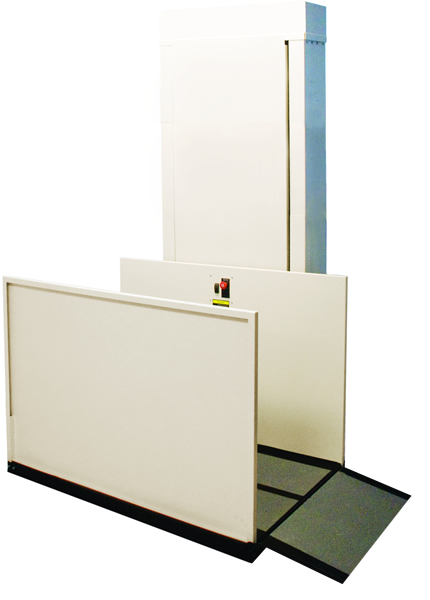

The AmeriGlide Hercules II 750 Vertical Platform Lift is a heavy duty lift that excels in residential locations. Some assembly is required, but once assembled installation consists of putting it where you want it, securing it, and plugging it in. The Hercules II 750 is weather resistant and can be installed outdoors as well as indoors. 750 lb. capacity.
Use our Virtual Designer to help visualize your lift.
- Solid platform
- Weather resistant
- Top and bottom limit switches
- 750 lb. weight capacity
- Meets ASME 18.1 - Section 5 - Private Residence VPLs
- Meets CSA B44.1 - ASME 17.5 - Elevator and Escalator Electrical Equipment
Give us a call for any help you may desire, we have a team of experts that can answer any question about applications, accessories or anything else about our vertical platform lifts.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 53" |
| Maximum Lift Height Upgrade | 171" |
| Arrives Assembled | No |
| Drive System | Ball Screw Drive |
| Optional Drive Systems | None Available |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm, Lighted Button |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional |
| Optional Call-Send Controls | Non-Keyed, Keyed, Wireless |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 54" (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, 90 Degree Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Fixed, Optional Automatic |
| Grab Rail | Included |
| Guard Panel | 42" |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 10 |
| Portable | None Available |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
-
Lifting Height
-
$0.00
53" Maximum Lift Height
-
$700.00
77" Maximum Lift Height
-
$1,800.00
101" Maximum Lift Height
-
$3,300.00
125" Maximum Lift Height
-
$4,400.00
149" Maximum Lift Height
-
$5,500.00
171" Maximum Lift Height
-
-
Assembly & Crating
-
$0.00
No Crating - Some assembly is required.
-
$0.00
36" x 54" Platform
-
$460.98
53" Unit Shipped Crated & Fully Assembled
-
$0.00
36" x 60" or 42" x 54" Platform - Requires Extra Large Crate
-
$690.98
53" Unit Shipped Crated & Fully Assembled
-
-
Tower Orientation
-
$0.00
Tower On The Left -
$0.00
Tower On The Right
-
-
Power Source
-
$0.00
AC Powered
-
$983.98
DC Battery Powered - Battery provides 15-20 cycles during power outage.
Batteries included.
-
-
Platform Access
-
$0.00
Straight Through
-
$368.98
Same Side Entry & Exit - Lift height must be 101" or greater.
-
-
Platform Type
-
$0.00
36" x 54" Straight Thru (34" Usable Width)
-
$244.98
36" x 60" Straight Thru (34" Usable Width)
-
$491.98
42" x 54" Straight Thru (40" Usable Width)
-
$652.98
42" x 60" Straight Thru (40" Usable Width)
-
$367.98
36" x 54" 90 Degree (34" Usable Width)
-
$491.98
36" x 60" 90 Degree (34" Usable Width)
-
$737.98
42" x 54" 90 Degree (40" Usable Width)
-
$860.98
42" x 60" 90 Degree (40" Usable Width)
-
-
Platform Controls
-
$0.00
Paddle Controls with Emergency Stop Button
-
-
Platform Gate
-
$0.00
Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate.
-
$0.00
No Platform Gate
-
$614.98
Left Swing 36" Wide Straight Thru Platform Gate with Interlock
-
$614.98
Right Swing 36" Wide Straight Thru Platform Gate with Interlock
-
$860.98
Left Swing 42" Wide Straight Thru Platform Gate with Interlock
-
$860.98
Right Swing 42" Wide Straight Thru Platform Gate with Interlock
-
$983.98
Left Swing 90 Degree Platform Gate with Interlock
-
$983.98
Right Swing 90 Degree Platform Gate with Interlock
-
-
Platform Control Options
-
$121.98
Emergency Stop Alarm
-
$184.98
Emergency Stop Alarm & Lighted Button
-
$39.00
Keylocks for Controls
-
-
Platform Options
-
$0.00
Solid Platform with Safety Pan
-
$0.00
Inside Grab Bar
-
$0.00
42" High Side Walls
-
-
Ramp Type
-
$0.00
Fixed Ramp
-
$121.98
Automatic Ramp
-
-
Landing Controls
-
$129.00
Call/Send Control Station (each)
-
$39.00
Keylocks for Controls (each)
-
$430.98
Wireless Call/Send Control Stations (pair)
-
-
Landing Gate
-
$0.00
Landing gates below include an interlock and a call/send control built into the gate.
-
$859.00
Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
-
$859.00
Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each)
-
$1,039.00
Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
-
$1,039.00
Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each)
-
$39.00
Keylocks for Controls (each)
-
$0.00
Landing gates below include an interlock only.
-
$779.00
Left Swing 36" Wide Landing Gate with Interlock Only (each)
-
$779.00
Right Swing 36" Wide Landing Gate with Interlock Only (each)
-
$959.00
Left Swing 42" Wide Landing Gate with Interlock Only (each)
-
$959.00
Right Swing 42" Wide Landing Gate with Interlock Only (each)
-
$39.00
Keylocks for Controls (each)
-
-
Interlocks
-
$0.00
Surface mount EMI interlocks below are for a customer provided door or gate.
-
$279.00
Left Swing Top Landing Door/Gate EMI Interlock (each)
-
$279.00
Right Swing Top Landing Door/Gate EMI Interlock (each)
-
$0.00
Flush mount electric strike interlocks below are for a customer provided door or gate.
-
$639.00
Top Landing Electric Strike Interlock - Metal Frame (each)
-
$639.00
Bottom Landing Electric Strike Interlock - Metal Frame (each)
-
$639.00
Top Landing Electric Strike Interlock - Wood Frame (each)
-
$639.00
Bottom Landing Electric Strike Interlock - Wood Frame (each)
-
$0.00
Other Interlock Options
-
$159.00
Wiring For Interlock (per landing)
-
$129.00
Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)
-
-
Accessories
-
$0.00
Anchor Bolt Kit
-
$153.98
Tower Braces
-
$614.98
3rd Stop Wiring Charge
-
$121.98
Phone Jack
-
$121.98
Emergency Light
-
$65.00
Fascia Panel (per foot)
-
-
Additional Delivery Services
-
$0.00
Free Liftgate Service on 53" Units As Requested
-
