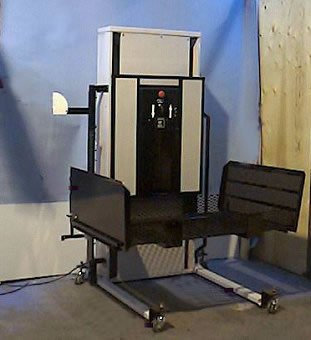

Atlas Portable Vertical Platform Lift
Call (800) 647-0916 for the absolute lowest price on this product.
| Your Price | $5,499.00 |
|---|---|
| Regular Price | $7,500.00 |
|
Warranty Info Click Here |
|
We recommend the AmeriGlide Atlas Portable Vertical Platform Lift when you need a lift for regular scheduled use, but need it out of the way when not in use. We also recommend it for multiple locations on one venue because it can be easily moved about and plugged in whenever it's needed.
- Standard lifting height of 52"
- 550 lb. weight capacity
- Non-load-bearing safety nut on lift shaft
- Automatic folding entry and exit ramps
- Emergency manual operation
- 8 feet/minute lift speed
- Expanded metal platform with full under platform visibility and non-skid surface
- U.L. and C.S.A. certified
- Requires minimal maintenance
Please call us if you need assistance. We have a team of experts that can answer any questions about your specific application, the accessories you need, or anything else about the vertical platform lifts we sell.
| Lifting Capacity | 550 lb |
| Standard Lift Height | 52" |
| Maximum Lift Height | 52" |
| Portable | Yes |
| Arrives Assembled | No |
| Drive System | Direct Worm-Gear & Screw-Nut |
| Optional Drive Systems | None |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Standard |
| Alarm Button | None Available |
| Keyed Platform Control | Standard |
| Call-Send Controls | None Available |
| Optional Call-Send Controls | None Available |
| Platform Type | Expanded Metal |
| Platform Size | 34" x 54" |
| Optional Platform Sizes | None Available |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | None Available |
| Upper Landing Gate | None Available |
| Upper Access Ramp | Automatic Folding |
| Lower Access Ramp | Automatic Folding |
| Grab Rail | Optional |
| Guard Panel | None Available |
| Maximum Stops | 2 |
-
Lifting Height
-
$0.00
52" Maximum Lift Height
-
-
Tower Orientation
-
$0.00
Tower On The Right
-
-
Power Source
-
$0.00
AC Powered
-
$1,357.15
AC Powered with DC Battery Backup (Batteries Not Included)
-
-
Platform Size
-
$0.00
34" x 54" Platform
-
-
Platform Access
-
$0.00
Straight Through
-
-
Platform Gate
-
$0.00
No Platform Gate
-
-
Platform Controls
-
$0.00
Paddle Controls with Emergency Stop Button
-
-
Platform Control Options
-
$0.00
Keylock for Platform Controls
-
-
Platform Options
-
$0.00
Automatic Ramp for Ground to Platform Transition
-
$0.00
Automatic Ramp for Platform to Landing Transition
-
-
Accessories
-
$0.00
Portable Package
-
$222.98
Batteries for Backup System
-
-
Additional Delivery Services
-
$0.00
Trucking Terminal or Commercial Location with Loading Dock
-
$279.00
Liftgate Delivery
-
$109.00
Limited Access Delivery Charge
-
$0.00
AK, HI, PR, or International - Please Call for Quote
-
