AmeriGlide Express Dumbwaiter

spacer

model: EXPRESS

AmeriGlide Express Dumbwaiter
Click to enlarge
spacer
Additional Images

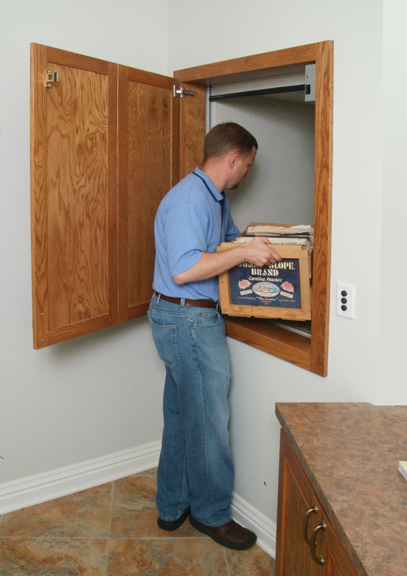

  • Load items upstairs

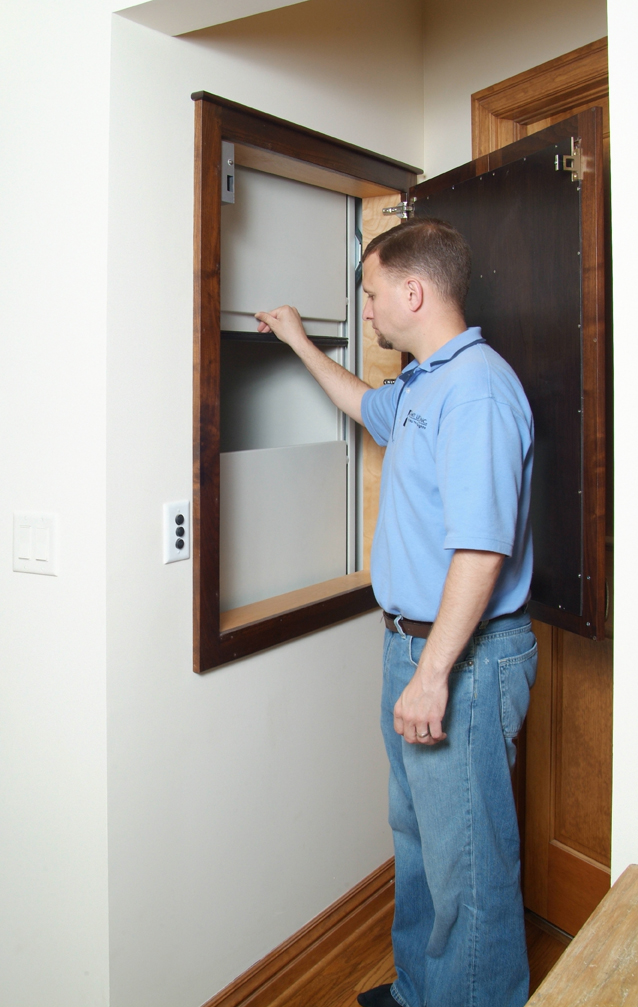

  • Close and send

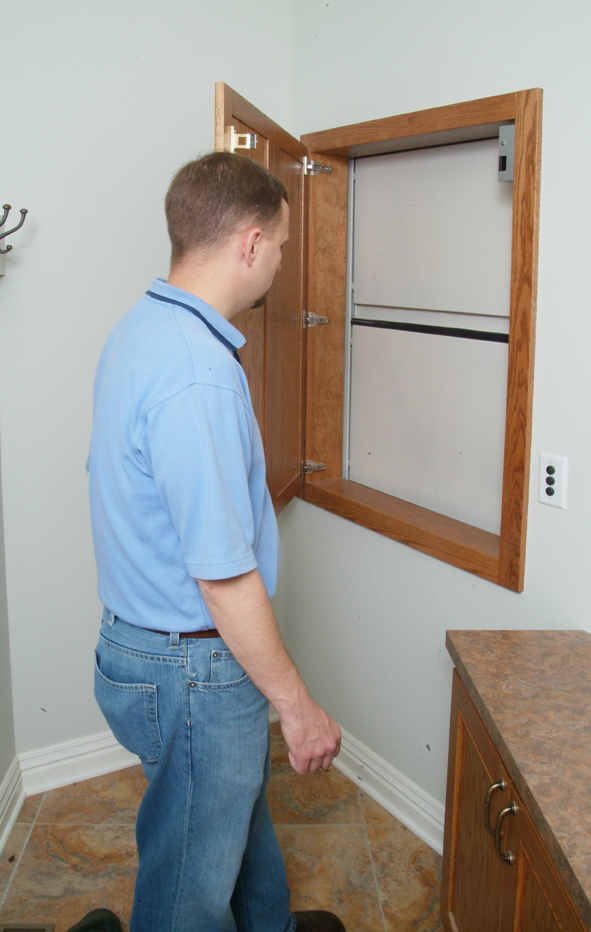

  • Retrieve items downstairs

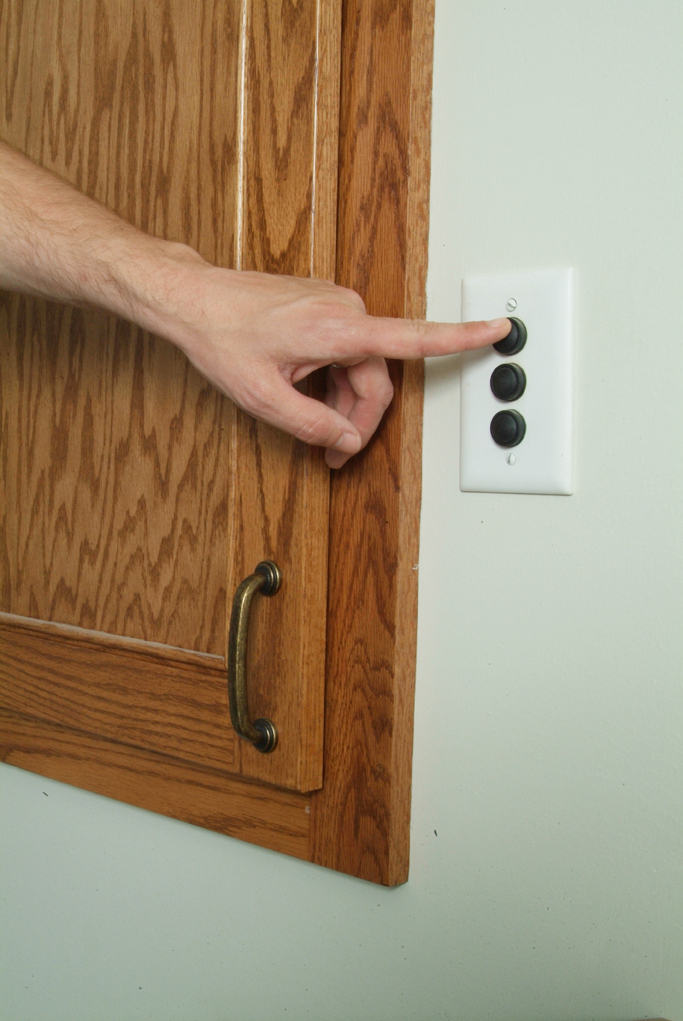

  • Easy to use buttons
Call (800) 794-9769 for the absolute lowest price on this product.
Your Price$3,679.00
Regular Price$5,500.00
Additional Shipping?Yes
*Non-Continental U.S. States & Territories - please call for shipping charges.
Product Review
(0)
(93.3)
No Sales Tax in most states.
Unlike any other dumbwaiter, the AmeriGlide Express Dumbwaiter uses a special drive train and track system that makes it easier to install compared to the competitor's units and makes it economical to own with virtually no maintenance required.

Typical dumbwaiters are built like mini-elevators with complex pulley systems, guide rails and traveling control cables. The AmeriGlide Express comes from the factory with the entire drive system pre-installed on the underside of the car, and the car chassis/trolley system pre-installed on a section of the track. Most of the installation entails just connecting sections of track, securing the drive cable to the header, and routing the wires to the control buttons and door interlocks. In many cases, a full day of installation time can be cut from the process.

  • Reduced installation time
  • Comes with car and drive system factory installed on the track
  • No pulleys to install
  • Cable drive system factory installed on car
  • No complex rail system to assemble
  • Simplified wiring
  • Lower overall cost
  • Reliable drive system design
  • Made in the USA
  • Best warranty: 2 year parts / 5 year drive train
  • 20" wide x 20" deep x 30" high standard car
    (custom sizes available up to 30" x 30" x 36")
  • Durable ivory powder coated steel panel walls and doors
    (stainless steel available)
  • Car and drive system are factory installed on a section of track
  • Automatic, low voltage control switches
  • Low voltage hoistway door interlocks
  • Standard and final limit switches
  • Plug-in temporary bypass control to facilitate installation and maintenance

General Specifications:

  • Car interior dimensions - 20"wide x 20"deep x 30"high
    • custom sizes available up to 30" x 30" x 36"
  • Finish - Car interior and doors feature a durable ivory powder coat finish
  • Capacity - 100 lbs.
    • available up to 200 lbs.
  • Travel - Up to 32'
  • Track - Extruded aluminum
  • Stops - 2, 3, or 4
  • Speed 20 feet per minute
  • Hoistway door interlocks - G.A.L. interlocks or electromechanical interlocks
  • Controls - 2 Call-Send controls, 24V
  • Cable - Aircraft cable rated at 1,800 lb. breaking strength
  • Motor - 1/3 hp, 90 VDC motor
  • Warranty - 2 year warranty on parts and 5 years on the drive train
  • Electric supply - 115 VAC grounded outlet
  • Designed to meet ANSI standards
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Car Configuration

    • $0.00
      Single Opening - Front
      Single Opening - Front
      spacer
    • $0.00
      Single Opening - Left
      Single Opening - Left
      spacer
    • $0.00
      Single Opening - Right
      Single Opening - Right
      spacer
    • $255.98
      Straight Through
      Straight Through
      spacer
    • $384.98
      90° Opening - Left and Front
      90° Opening - Left and Front
      spacer
    • $384.98
      90° Opening - Right and Front
      90° Opening - Right and Front
      spacer
  • Stops

    • $0.00
      No Image
      2 Stops
      spacer
    • $512.98
      No Image
      3 Stops
      spacer
    • $1,065.98
      No Image
      4 Stops
      spacer
  • Options

    • $127.98
      No Image
      Intermediate Car Shelf
      spacer
    • $294.98
      No Image
      Stainless Steel Intermediate Car Shelf
      spacer
    • $513.98
      No Image
      Floor Mount Drive Unit (includes Remote Mount Control Pkg)
      spacer
    • $255.98
      No Image
      Remote Mount Control Package
      spacer
    • $191.98
      No Image
      Automatic Homing Device
      An automatic homing device returns the car to a set stop after approximately 5 minutes. This prevents unauthorized access to the unit in case you forget to return the car yourself.
      spacer
  • Call-Send Control Options

    • $35.00
      No Image
      Keylocks (per control)
      spacer
    • $35.00
      No Image
      "Car Here" Indicators (per control)
      spacer
  • Car Size

    • $0.00
      No Image
      Ivory Powder Coated
      spacer
    • $0.00
      No Image
      20"W x 20"D x 30"H - 100 Lb. Capacity
      spacer
    • $191.98
      No Image
      24"W x 24"D x 30"H - 150 Lb. Capacity
      spacer
    • $384.98
      No Image
      30"W x 30"D x 36"H - 200 Lb. Capacity
      This car size has a travel limitation of 20 feet.
      spacer
    • $1,027.98
      No Image
      Custom
      spacer
    • $0.00
      No Image
      Stainless Steel Cars
      spacer
    • $1,348.98
      No Image
      Stainless Steel - 20"W x 20"D x 30"H - 100 Lb. Capacity
      spacer
    • $1,991.98
      No Image
      Stainless Steel - 24"W x 24"D x 30"H - 150 Lb. Capacity
      spacer
    • $1,991.98
      No Image
      Stainless Steel - 30"W x 30"D x 36"H - 200 Lb. Capacity
      This car size has a travel limitation of 20 feet.
      spacer
    • $2,570.98
      No Image
      Staineless Steel Custom
      spacer
  • Custom Car Measurement

    • $0.00
      No Image
      Width (min. 16" - max. 30")
      spacer
    • $0.00
      No Image
      Depth (min. 16" - max. 30")
      spacer
    • $0.00
      No Image
      Height (30" or 36")
      spacer
  • Weight Capacity

    • $0.00
      No Image
      100 Lb. Capacity
      spacer
    • $127.98
      No Image
      150 Lb. Capacity
      spacer
    • $191.98
      No Image
      200 Lb. Capacity
      This weight capacity has a travel limitation of 20 feet.
      spacer
  • Interlocks

    • $0.00
      No Image
      GAL's (2 units)
      spacer
    • $259.00
      No Image
      Additional Landing Openings - Includes GAL, Call-Send, & Wiring (each)
      spacer
    • $199.00
      No Image
      EMI's - 24V AC - Required for 90° Cars (each)
      spacer
    • $0.00
      No Image
      No Interlocks - Wired for EMI
      spacer
  • Unfinished Maple Hoistway Doors

    • $419.00
      No Image
      Landing Doors (each)
      spacer
    • $219.00
      No Image
      Machine Access Doors (each)
      spacer
  • Travel Measurements

    • $0.00
      No Image
      1st Floor Sill Height
      spacer
    • $0.00
      No Image
      1st Floor to 2nd Floor (inches)
      spacer
    • $0.00
      No Image
      2nd Floor Sill Height
      spacer
    • $0.00
      No Image
      2nd Floor to 3rd Floor (inches)
      spacer
    • $0.00
      No Image
      3rd Floor Sill Height
      spacer
    • $0.00
      No Image
      3rd Floor to 4th Floor (inches)
      spacer
    • $0.00
      No Image
      4th Floor Sill Height
      spacer
  • Total Travel

    • $0.00
      No Image
      Up To 12'
      spacer
    • $320.98
      No Image
      Up To 18'
      spacer
    • $641.98
      No Image
      Up To 26'
      spacer
    • $962.98
      No Image
      Up To 32'
      spacer
  • Hoistway Door Swing 1st Floor

    • $0.00
      1st Floor - Right Hand Swing
      1st Floor - Right Hand Swing
      spacer
    • $0.00
      1st Floor - Left Hand Swing
      1st Floor - Left Hand Swing
      spacer
  • Hoistway Door Swing 2nd Floor

    • $0.00
      2nd Floor - Right Hand Swing
      2nd Floor - Right Hand Swing
      spacer
    • $0.00
      2nd Floor - Left Hand Swing
      2nd Floor - Left Hand Swing
      spacer
  • Hoistway Door Swing 3rd Floor

    • $0.00
      3rd Floor - Right Hand Swing
      3rd Floor - Right Hand Swing
      spacer
    • $0.00
      3rd Floor - Left Hand Swing
      3rd Floor - Left Hand Swing
      spacer
    • $0.00
      Door Swing - N/A
      Door Swing - N/A
      spacer
  • Hoistway Door Swing 4th Floor

    • $0.00
      4th Floor - Right Hand Swing
      4th Floor - Right Hand Swing
      spacer
    • $0.00
      4th Floor - Left Hand Swing
      4th Floor - Left Hand Swing
      spacer
    • $0.00
      Door Swing - N/A
      Door Swing - N/A
      spacer
  • 1st Floor Hoistway Door Location

    • $0.00
      No Image
      Left
      spacer
    • $0.00
      No Image
      Front
      spacer
    • $0.00
      No Image
      Right
      spacer
  • 2nd Floor Hoistway Door Location

    • $0.00
      No Image
      Left
      spacer
    • $0.00
      No Image
      Front
      spacer
    • $0.00
      No Image
      Right
      spacer
  • 3rd Floor Hoistway Door Location

    • $0.00
      No Image
      Left
      spacer
    • $0.00
      No Image
      Front
      spacer
    • $0.00
      No Image
      Right
      spacer
  • 4th Floor Hoistway Door Location

    • $0.00
      No Image
      Left
      spacer
    • $0.00
      No Image
      Front
      spacer
    • $0.00
      No Image
      Right
      spacer
spacer
spacer
Made in America
spacer
spacer
Product Reviews
This product currently has no reviews. Would you like to leave one?
