Viper Plus Reclining Wheelchair

spacer

model: PL4 R

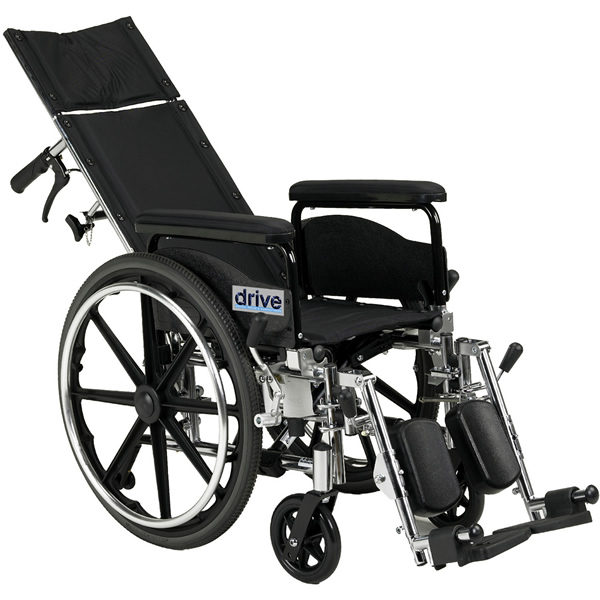

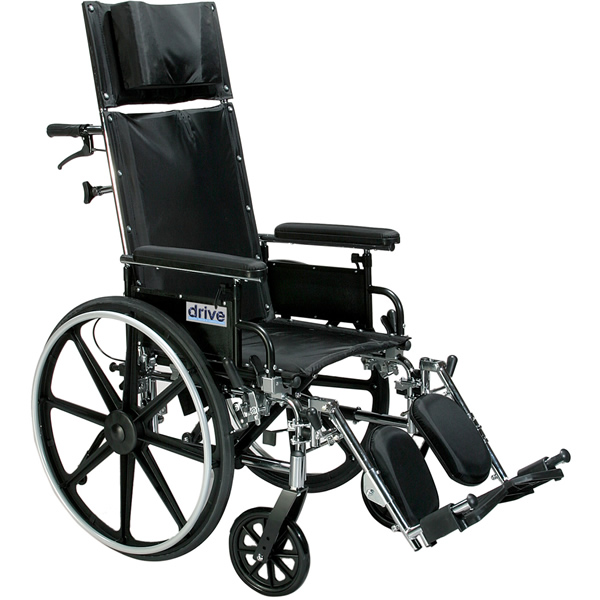

Viper Plus Reclining Wheelchair
Click to enlarge
spacer
Additional Images
  • Upright

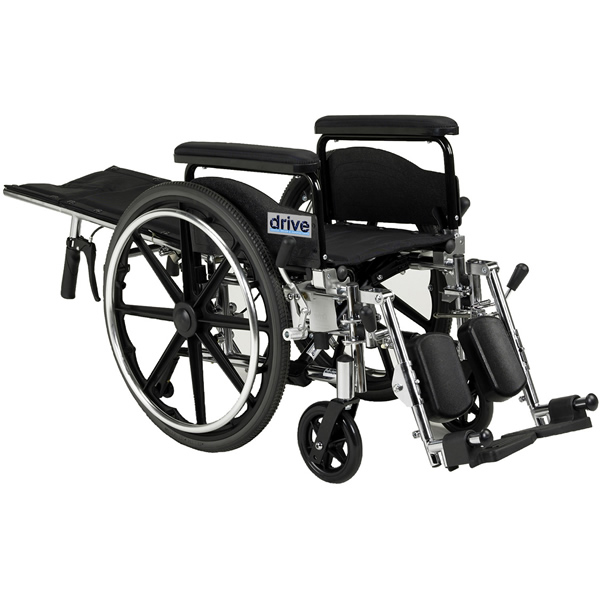

  • Full Recline

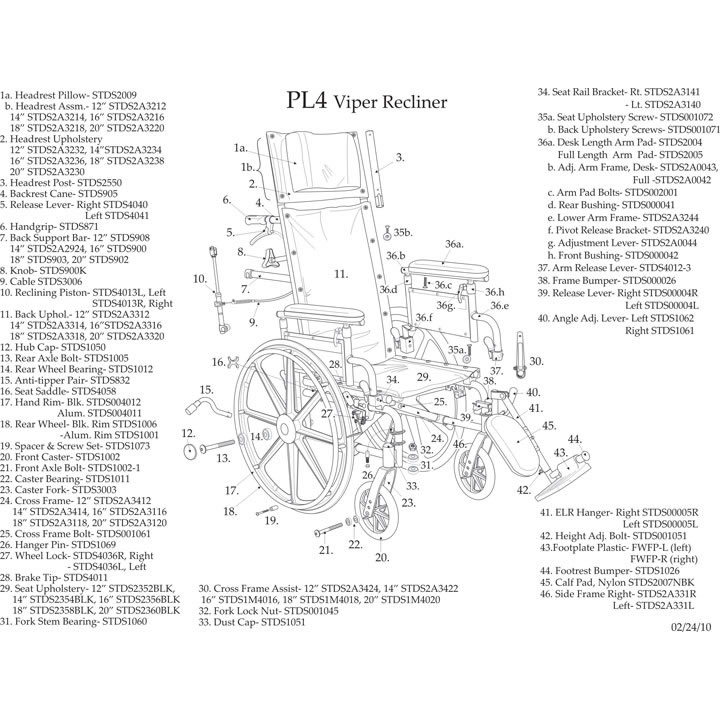

  • Parts Diagram

Additional Resources
Call (855) 207-9811 for the absolute lowest price on this product.
Your Price$674.98
Regular Price
*Non-Continental U.S. States & Territories - please call for shipping charges.
Product Review
(0)
(0)
Free Shipping
No Sales Tax in most states.
Drive's Viper Plus Reclining Manual Wheelchair uses a hydraulic reclining mechanism and precision sealed wheel bearings in front and rear to ensure long lasting performance and reliability. Standard dual axle provides easy transition of the seat to a hemi-level. Front caster forks are adjustable to 3 positions. Push-to-lock wheel locks are standard as well as swing-away elevating legrests. Limited lifetime warranties.
Product Weight - Min43 lbs.
Seat Width - Min14"
Seat Width - Max20"
Seat Depth - Min14"
Seat Depth - Max18"
Seat Height - Min15.5"
Seat Height - Max19.5"
Weight Capacity250 lb
Back Height - Min23"
Back Height - Max33"
Frame TypeFolding
Ergonomic SeatNo
Adjustable Back AngleYes
Suggested HCPCS CodeK0001 K0007
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Size

    • $59.00
      No Image
      14" - 250 Pound Capacity
      spacer
    • $0.00
      No Image
      16"
      spacer
    • $89.00
      No Image
      18"
      spacer
    • $99.00
      No Image
      20"
      spacer
  • Arms

    • $0.00
      No Image
      Detachable Desk Arms
      spacer
    • $0.00
      No Image
      Detachable Full Length Arms
      spacer
    • $76.00
      No Image
      Adjustable Height Full Length Arms
      spacer
  • Options

    • $66.98

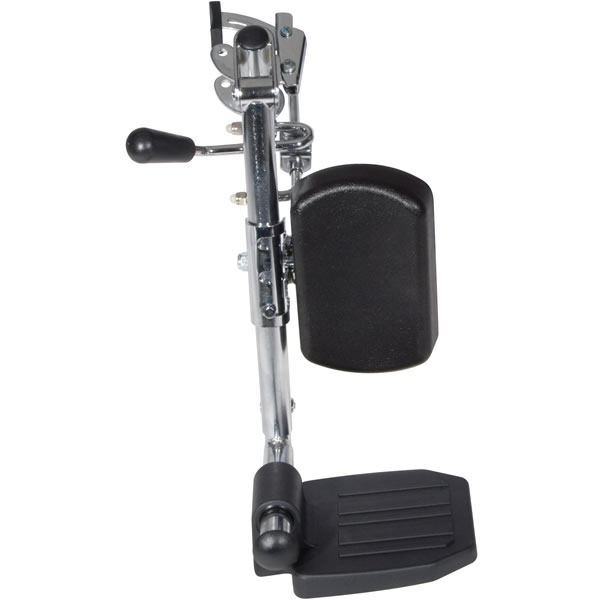

      Swing Away Elevating Legrests, Tool Free
      Elevating Legrests
      spacer
    • $90.98
      Elevating Legrests - Junior Chairs
      Elevating Legrests - 14" Chairs
      spacer
    • $14.98

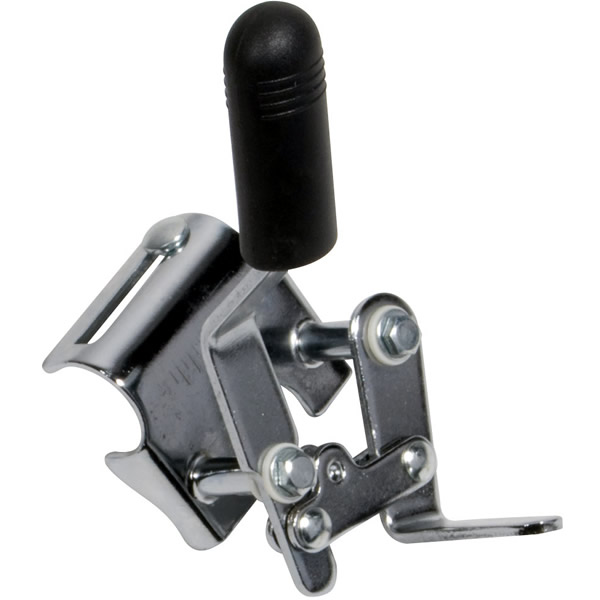

      Wheel Locks, Push To Lock
      Push-To-Lock Wheel Locks, Left
      spacer
    • $14.98
      Wheel Locks, Push To Lock
      Push-To-Lock Wheel Locks, Right
      spacer
    • $40.98

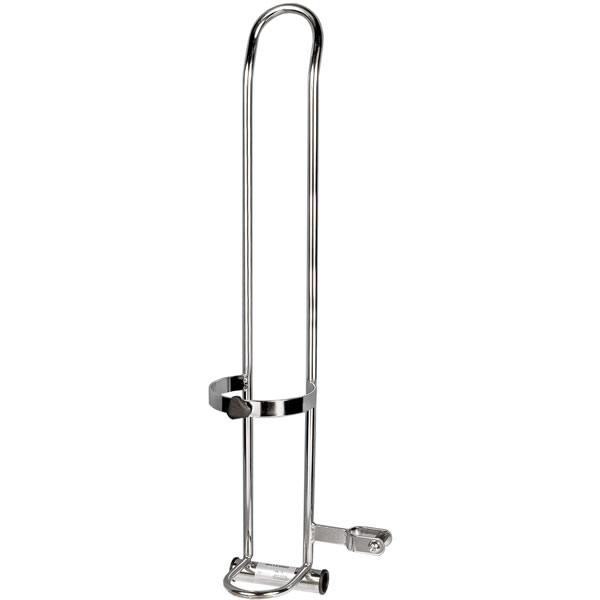

      Universal Oxygen "E" Cylinder Holder - Reclining Chairs
      Universal Oxygen "E" Cylinder Holder
      spacer
    • $66.98
      Anti-Tippers
      Ant-Tippers
      spacer
    • $16.98

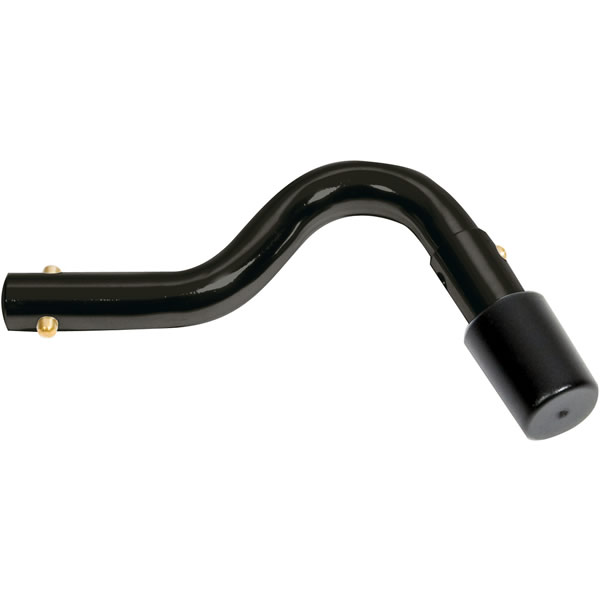

      8" Wheel Lock Extensions
      8" Wheel Lock Extensions
      spacer
    • $21.98
      Seat Belt - Auto Style
      Seat Belt, Auto Style
      spacer
    • $19.98
      Seat Belt - Velcro Style
      Seat Belt, Velcro Style
      spacer
    • $107.98

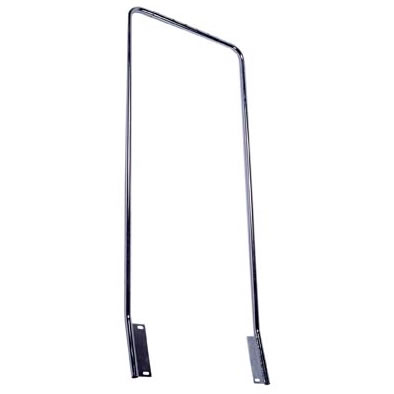

      Overhead Adjustable Anti-Theft Device
      Overhead Adjustable Anti-Theft Device
      spacer
    • $72.98

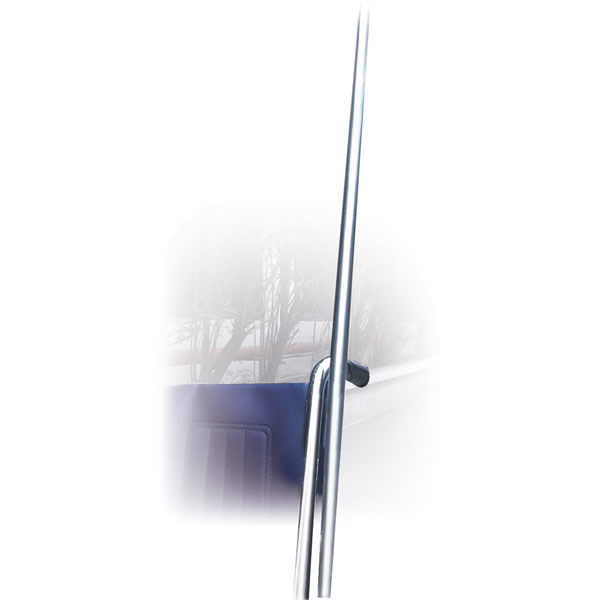

      Overhead Adjustable Anti-Theft Device Single Pole
      Overhead Adjustable Anti-Theft Device, Single Pole
      spacer
    • $27.98
      Heel Loops
      Heel Loops
      spacer
    • $31.98

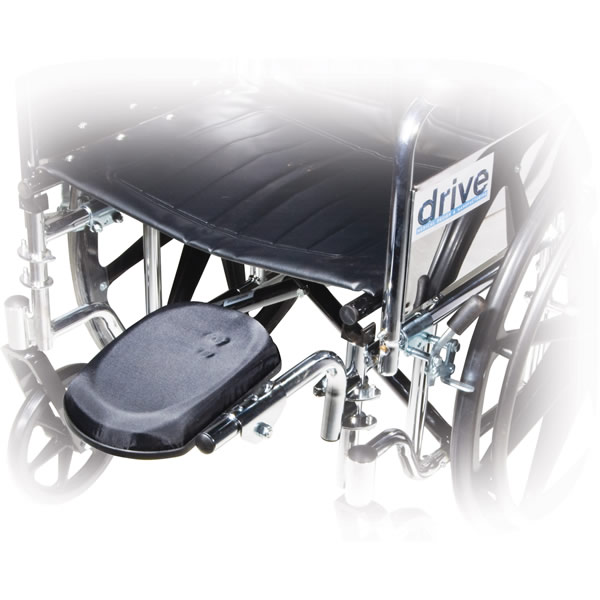

      Limb Support
      Limb Support, Left
      spacer
    • $31.98
      Limb Support
      Limb Support, Right
      spacer
    • $23.98

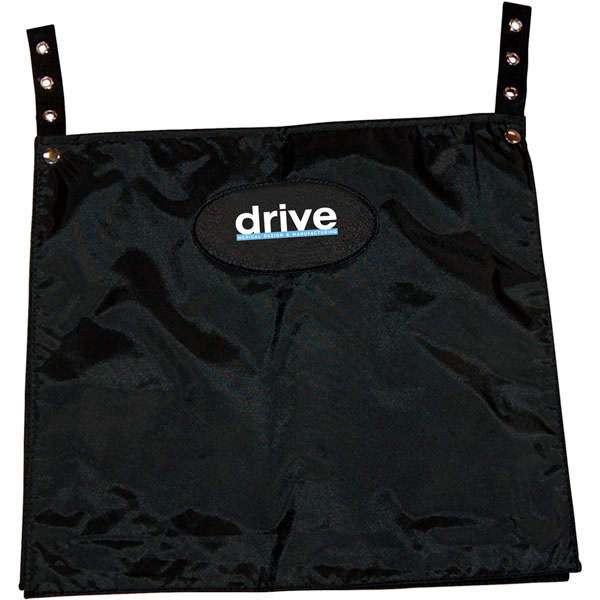

      Chart Carry Pocket
      Chart Carry Pocket
      spacer
spacer
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side



Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.



Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.



Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.



Camber: This is the term for the angle of the wheels in relation to the vertical plane of the wheelchair.  A typical wheelchair has a 3-degree positive camber; sports models tend to have greater positive camber to allow for more user agility during athletic activity. If you are unsure how much camber you require, please call out wheelchair specialists at 1 (800) 251-7250 for assistance before you place your order.



Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our manual wheelchair specialists by dialing 1 (800) 251-7250 to get the right fit.



Rear Seat to Floor: This is the distance from the ground to the rear edge of the wheelchair's seat. Comparing this measurement to the front-seat-to-floor measurement will give you an idea of the wheelchair's rearward slope - sometimes referred to as the "dump" or "squeeze". Your individual physical needs and capabilities will affect how steep you wish the rearward slope of the chair to be.



Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our manual wheelchair experts at 1 (800) 251-7250 to help you find a chair with the optimal hanger angle for your needs.
