Karman S Shape Ergonomic Wheelchair 305

spacer
Quick Ship Product
spacer

model: S-ERGO305

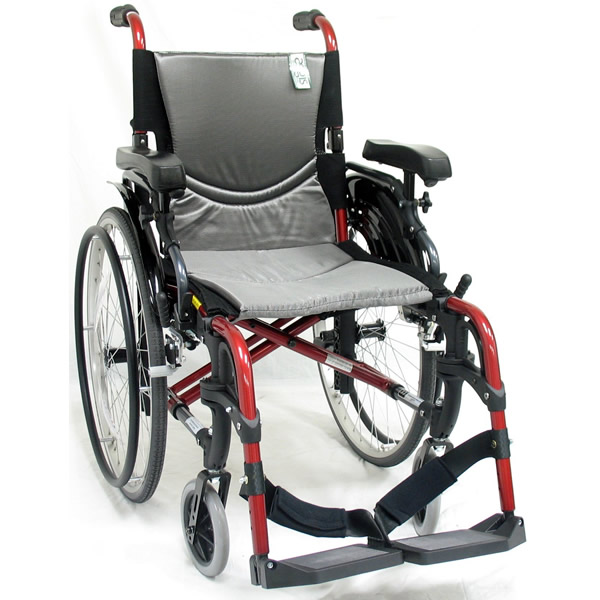

Karman S Shape Ergonomic Wheelchair 305
Best Value
Click to enlarge
spacer
Additional Images

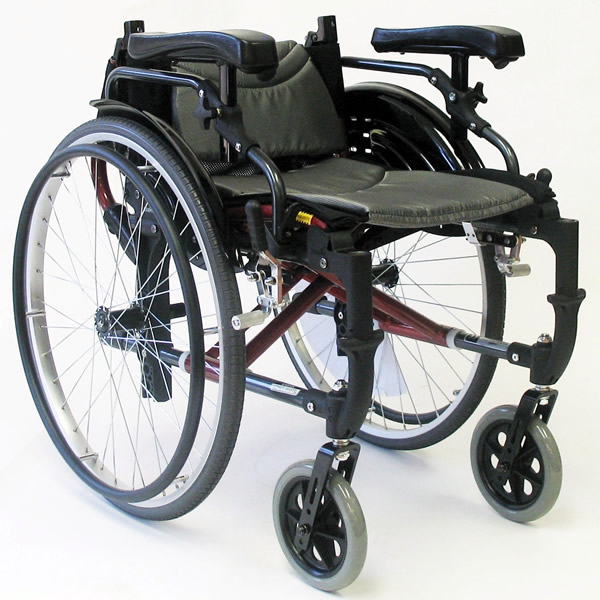

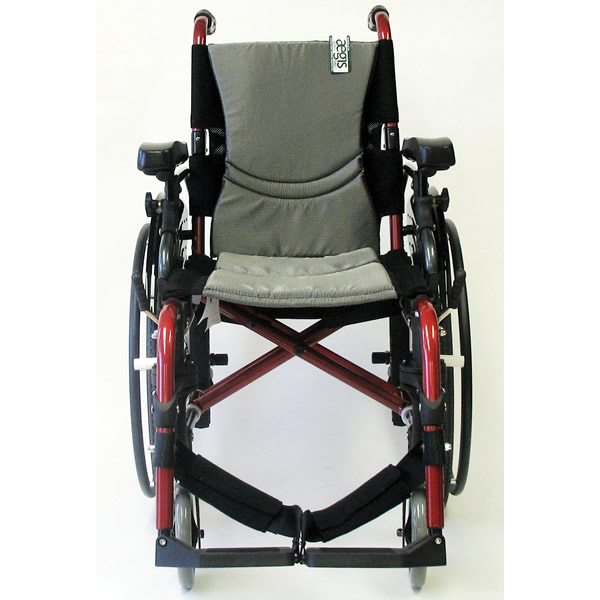

  • Front View, Red

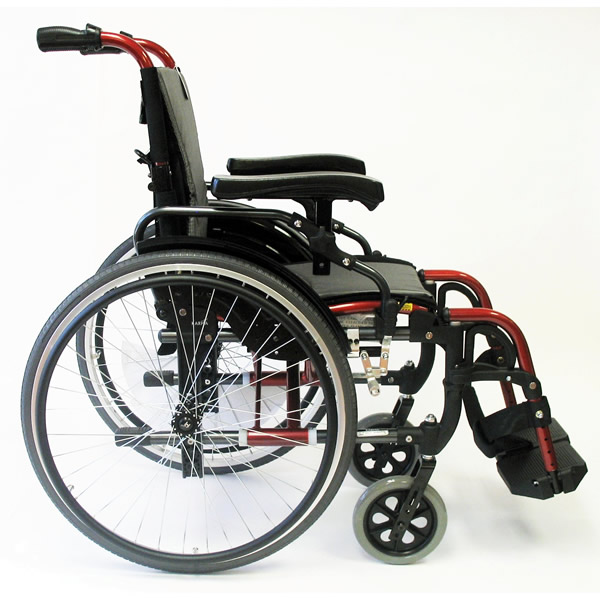

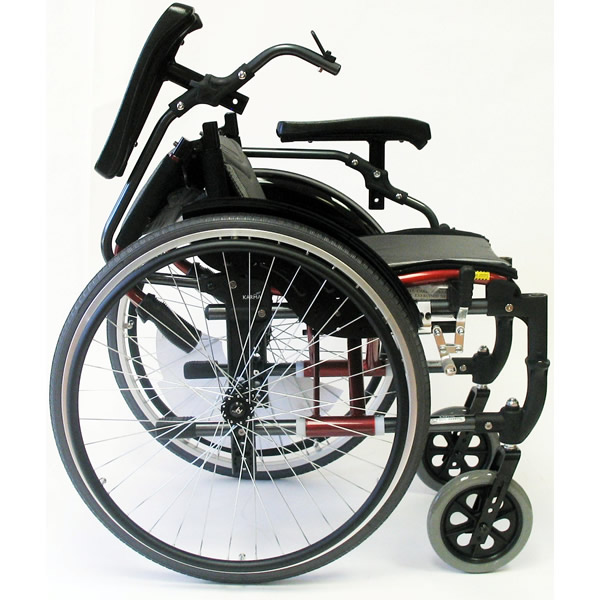

  • Side View, Red
  • Seat Down

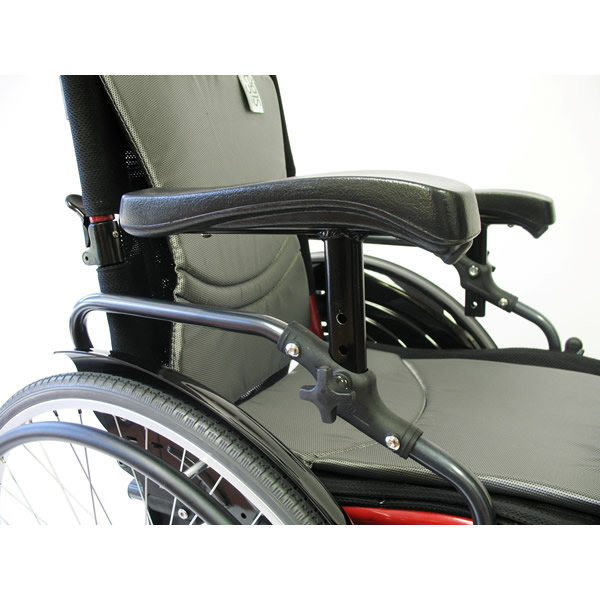

  • Arm Rest Close Up
  • Flip-Back Arm Rests

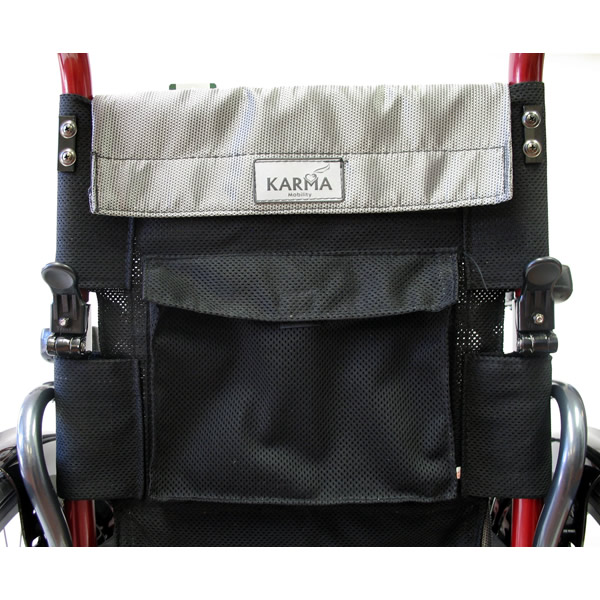

  • Seat Back

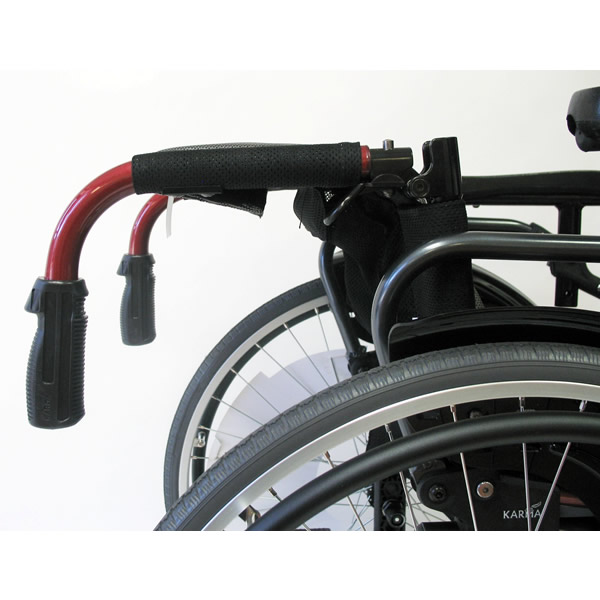

  • Push Handles with Seat Down

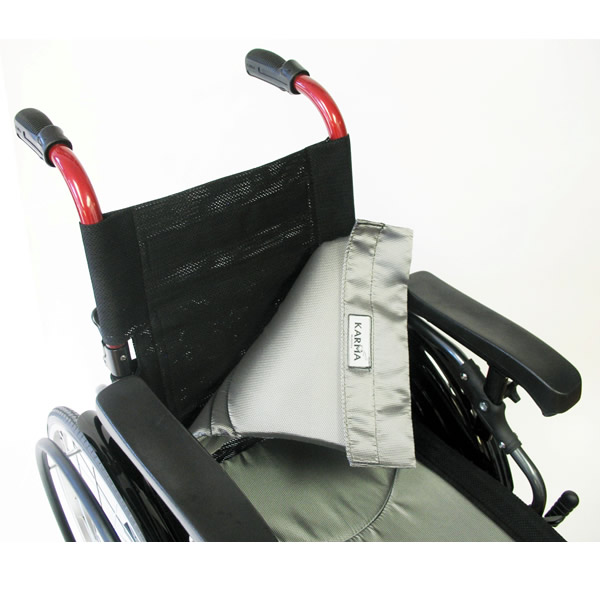

  • Seat Cushion

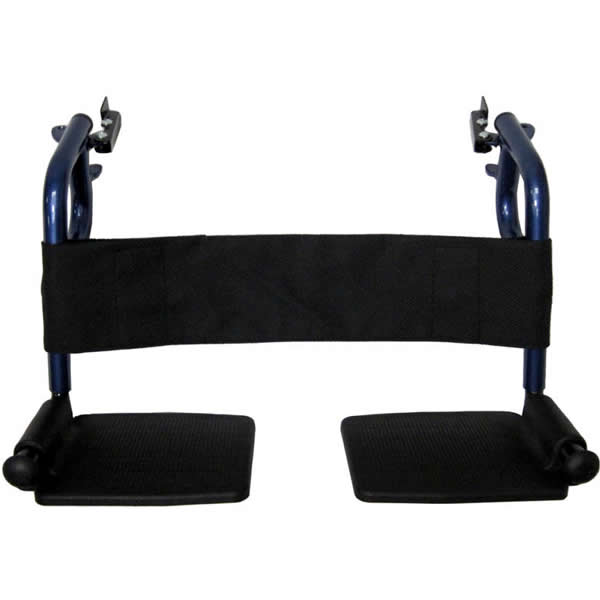

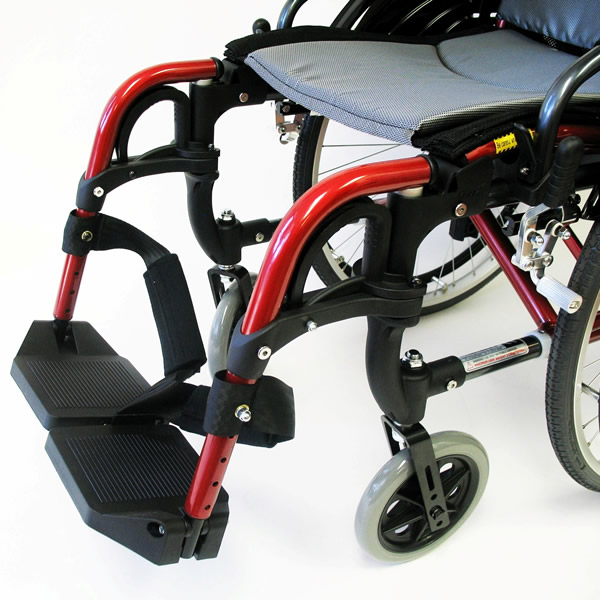

  • Foot Rests

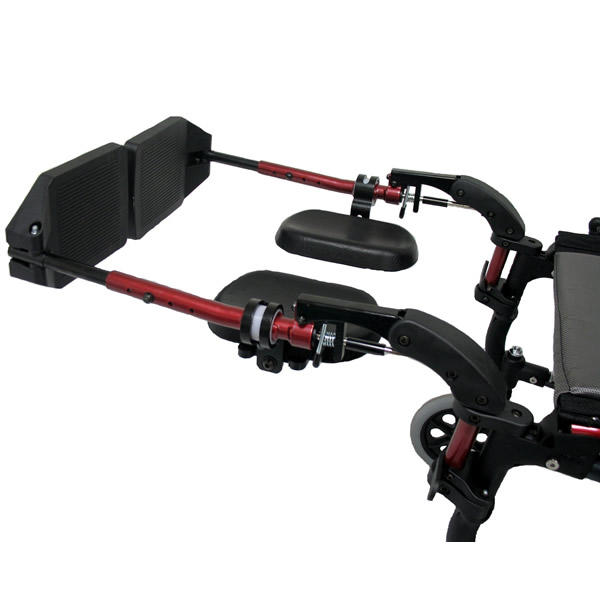

  • Elevating Leg Rests

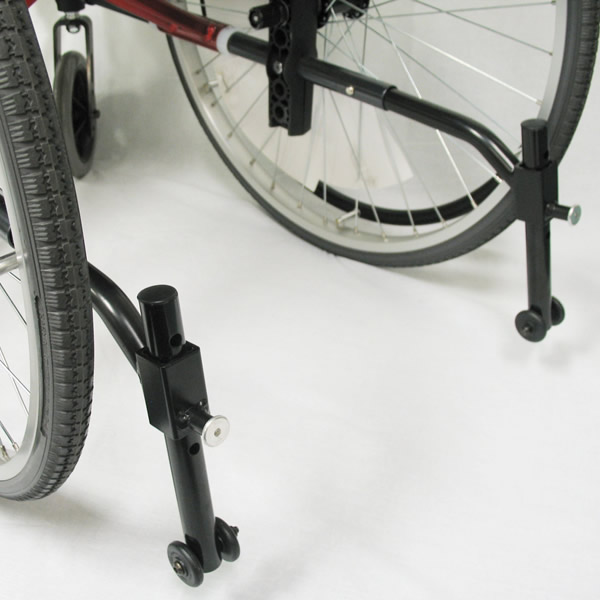

  • Anti-Tippers

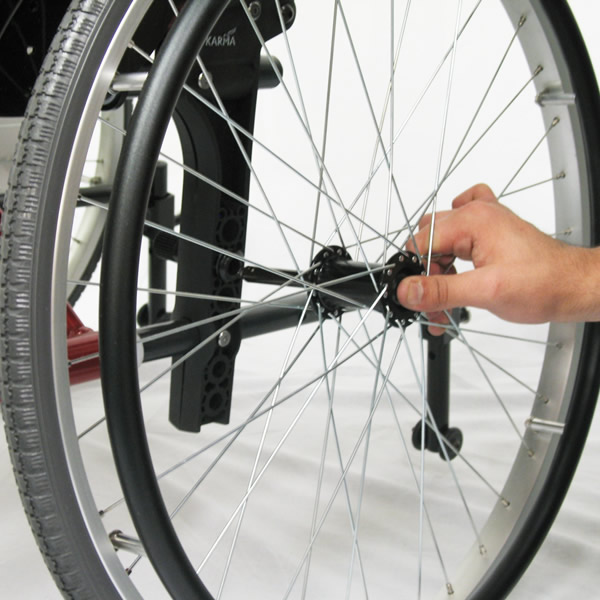

  • Quick Release Wheels 1

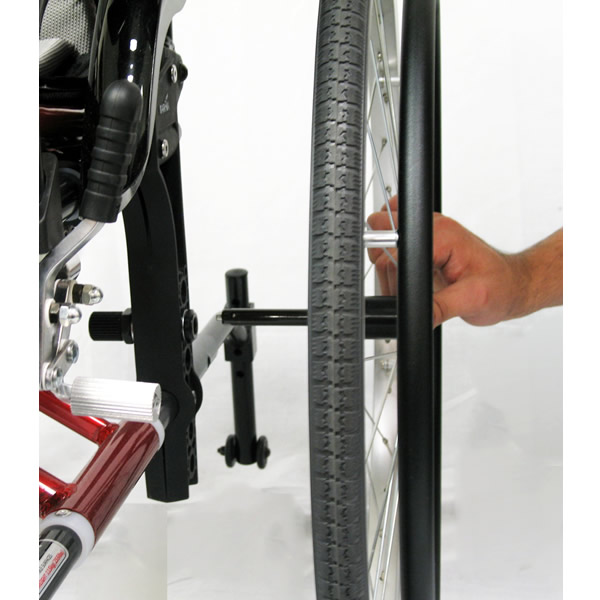

  • Quick Release Wheels 2

Additional Resources
Call (855) 207-9811 for the absolute lowest price on this product.
Your Price$659.00
Regular Price$1,227.00
*Non-Continental U.S. States & Territories - please call for shipping charges.

Warranty Info

Click Here
Product Review
(1)
(100)
Free Shipping
No Sales Tax in most states.

Features of this Karman S-Shape Ergonomic Manual Wheelchair:

  • Ergonomic seating
  • Folding frame
  • Adjustable armrests and swing-away footrests
  • Quick release rear wheels
  • Folding backrest
  • Upholstery is removable and washable
  • AEGIS Microbe Shield coated upholstery for protection against stains and odors
    AEGIS Microbe Shield

Karman Ergonomic seating offers many advantages over the standard manual wheelchair seat. Not only is pressure distributed more evenly across the legs and rear, it also offers a more stable seating surface and prevents forward slippage.

Ergonomic Seating

Ergonomic Seating

Standard Seating

Standard Wheelchair Seating

Product Weight - Min29 lbs. w/o Footrests
Seat Width - Min16"
Seat Width - Max18"
Seat Depth - Min17"
Seat Depth - Max17"
Seat Height - Min20"
Seat Height - Max20"
Weight Capacity250 lb
Back Height - Min16"
Back Height - Max16"
Frame TypeFolding
Caster Size Range7"
Rear Wheel Size Range24"
Ergonomic SeatYes
Adjustable Back AngleNo
Suggested HCPCS CodeK0004 K0005
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Frame Color

    • $0.00
      No Image
      Red
      spacer
    • $0.00
      No Image
      Silver
      spacer
  • Seat Size

    • $0.00
      No Image
      16" x 17"
      spacer
    • $0.00
      No Image
      18" x 17"
      spacer
  • Wheels

    • $0.00
      No Image
      Standard
      spacer
    • $456.98
      S-ERGO Vulcan Grip Wheels, 24" x 1"
      Aluminum Vulcan Grip, 24" x 1" Grey Tires, Quick Release
      spacer
    • $485.98
      S-ERGO Magnesium Wheels, 24" x 1"
      Magnesium, 24" x 1" Yellow Tires, Quick Release
      spacer
  • Casters

    • $0.00
      No Image
      Standard
      spacer
    • $315.98
      Karman Frog Legs Shock Absorbing Casters (S-Ergo 115 & 305, 16" & 18" Seats)
      Frog Legs - Shock Absorbing Caster Forks (16" & 18" Seats Only)
      Frog Legs absorb 76% of jolts, are 10 times stronger than traditional caster forks, and have a limited lifetime warranty. Frog Legs lower the floor-to-seat height to 18".
      spacer
  • Foot & Leg Rests

    • $0.00
      No Image
      Swing-Away Foot Rests
      spacer
    • $100.00
      No Image
      Elevating Leg Rests
      spacer
  • Belts & Straps

    • $15.98
      Karman Two-Piece Seat Belt, 45" Long
      Seatbelt, 45", Two Piece
      spacer
    • $15.98
      Karman One-Piece Seat Belt, 60" Long
      Seatbelt, 60", Two Piece
      spacer
    • $15.98
      Karman Legstraps 16" 18"
      Legstrap
      spacer
    • $15.98
      Karman Legstraps 16" 18"
      Extra Legstrap
      spacer
  • Other Options

    • $48.98
      Anti-Tippers for S-Ergo Wheelchairs (Pair)
      Anti-Tippers (pair)
      spacer
  • Translock Locking Device

    • $180.00

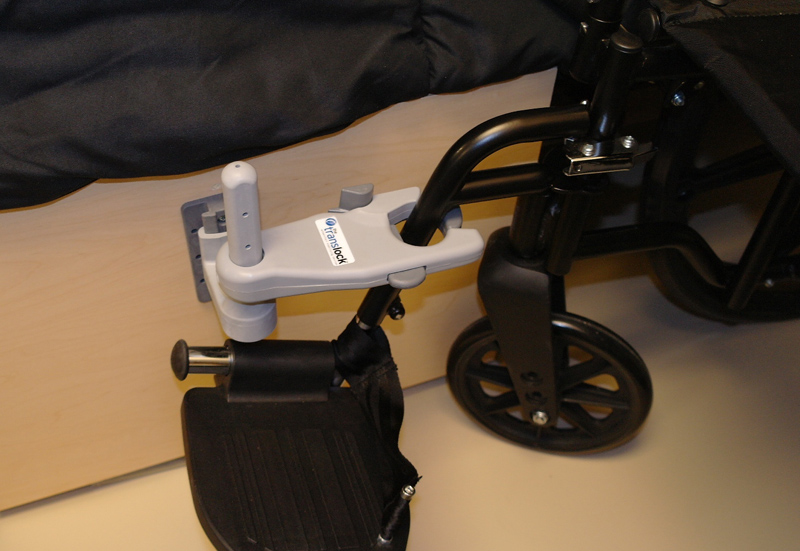

      The Translock - Bed Transfer Package 3
      Translock Bed Transfer Package
      spacer
    • $245.00

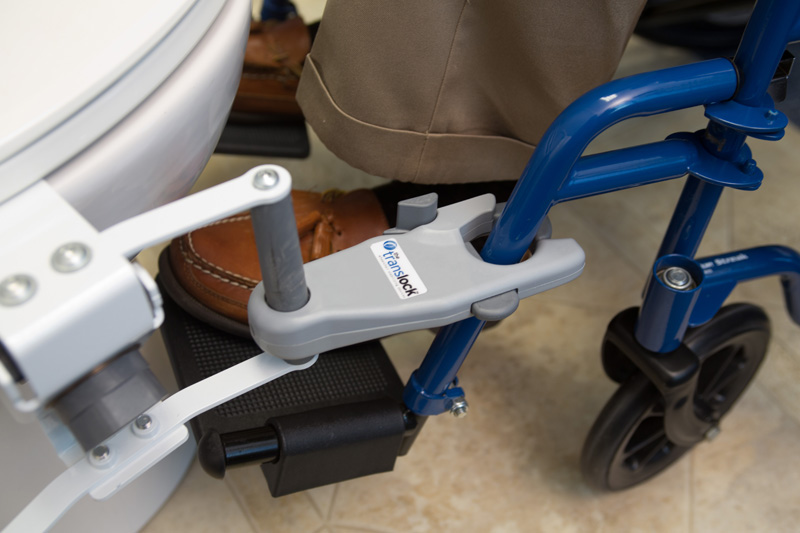

      The Translock - Toilet Transfer Package 1
      Translock Toilet Transfer Package
      spacer
  • Cushions

    • $127.40
      No Image
      Memory Foam Seat Cushion 16" x 17"
      spacer
    • $127.40
      No Image
      Memory Foam Seat Cushion 18" x 17"
      spacer
    • $101.40
      Karman S Shape Ergonomic Wheelchair 305
      16" Memory Foam Back Cushion
      spacer
    • $101.40
      Karman S Shape Ergonomic Wheelchair 305
      18" Memory Foam Back Cushion
      spacer
spacer
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side



Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.



Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.



Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.



Camber: This is the term for the angle of the wheels in relation to the vertical plane of the wheelchair.  A typical wheelchair has a 3-degree positive camber; sports models tend to have greater positive camber to allow for more user agility during athletic activity. If you are unsure how much camber you require, please call out wheelchair specialists at 1 (800) 251-7250 for assistance before you place your order.



Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our manual wheelchair specialists by dialing 1 (800) 251-7250 to get the right fit.



Rear Seat to Floor: This is the distance from the ground to the rear edge of the wheelchair's seat. Comparing this measurement to the front-seat-to-floor measurement will give you an idea of the wheelchair's rearward slope - sometimes referred to as the "dump" or "squeeze". Your individual physical needs and capabilities will affect how steep you wish the rearward slope of the chair to be.



Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our manual wheelchair experts at 1 (800) 251-7250 to help you find a chair with the optimal hanger angle for your needs.

spacer
spacer
spacer
Product Reviews
1 review

1

0

0

0

0
Great Wheelchair!
May 2, 2011 2:33 PM
A Little About Myself
Pros
Very comfortable. Removal of leg attachments is incredibly fast and easy. Seems well constructed. Highly recommend.
Cons
None so far.
Service & Delivery
Excellent
Bought this right after my 83 year-old mother-in-law had a small stroke. First time we used it was to wheel her out of the hospital to a rehab center. Beautiful wheelchair. Therapists at rehab said it was the nicest they had ever seen. Worth a little more money for something that unfortunately, looks like it will get a lot of use in the coming years.
20 of 20 people found this review helpful
