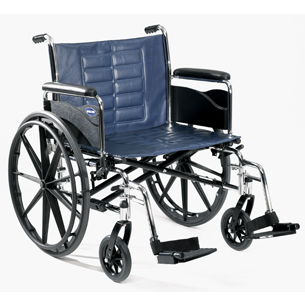

Tracer IV Wheelchair
|*Non-Continental U.S. States & Territories - please call for shipping charges.|
Warranty InfoClick Here
- Low-maintenance, dual-sealed precision bearings
- Dual axle positions for variations of seat-to-floor height
- Durable triple chrome-plated, carbon steel frame
- Reinforced frame with gussetted sides, caster journals, and dual crossbraces
|Product Weight - Min||42 Lbs.|
|Seat Width - Min||18"|
|Seat Width - Max||24"|
|Seat Depth - Min||18"|
|Seat Depth - Max||20"|
|Seat Height - Min||17.5"|
|Seat Height - Max||19.5"|
|Weight Capacity||350 lb|
|Back Height - Min||16"|
|Back Height - Max||16"|
|Caster Size Range||8"|
|Rear Wheel Size Range||24"|
|Adjustable Back Angle||No|
|Suggested HCPCS Code||K0007|
Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.
Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.
Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.
Camber: This is the term for the angle of the wheels in relation to the vertical plane of the wheelchair. A typical wheelchair has a 3-degree positive camber; sports models tend to have greater positive camber to allow for more user agility during athletic activity. If you are unsure how much camber you require, please call out wheelchair specialists at 1 (800) 251-7250 for assistance before you place your order.
Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our manual wheelchair specialists by dialing 1 (800) 251-7250 to get the right fit.
Rear Seat to Floor: This is the distance from the ground to the rear edge of the wheelchair's seat. Comparing this measurement to the front-seat-to-floor measurement will give you an idea of the wheelchair's rearward slope - sometimes referred to as the "dump" or "squeeze". Your individual physical needs and capabilities will affect how steep you wish the rearward slope of the chair to be.
Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our manual wheelchair experts at 1 (800) 251-7250 to help you find a chair with the optimal hanger angle for your needs.
Mar 22, 2013 4:40 PM
|gege43 from Ardmore, OK would recommend this to a friend.|
|A Little About Myself|
Good product for the money. They got it to me in two days.
Considering this is a heavy duty chair the seat upholstery was sagging in the second day of use. Seems like they could use a product that doesn't stretch like the plastic they use.
|Service & Delivery|
Ordered this chair on Monday at about 11AM and it was on my front porch Wednesday. They said about 4-5 days to ship but they got it here fast.
Very good wheelchair to replace her 8 year old Tracer IV.We got the wide 24 and the seat stretched in the 2nd day. This is the problem we had with the old one and the replacement seats are $100. Wish they would find something better than the plastic they use. BUT it's really a GREAT chair.
|14 of 14 people found this review helpful|
