$1,949.00
+shipping
*Non-Continental U.S. States & Territories - please call for shipping charges.

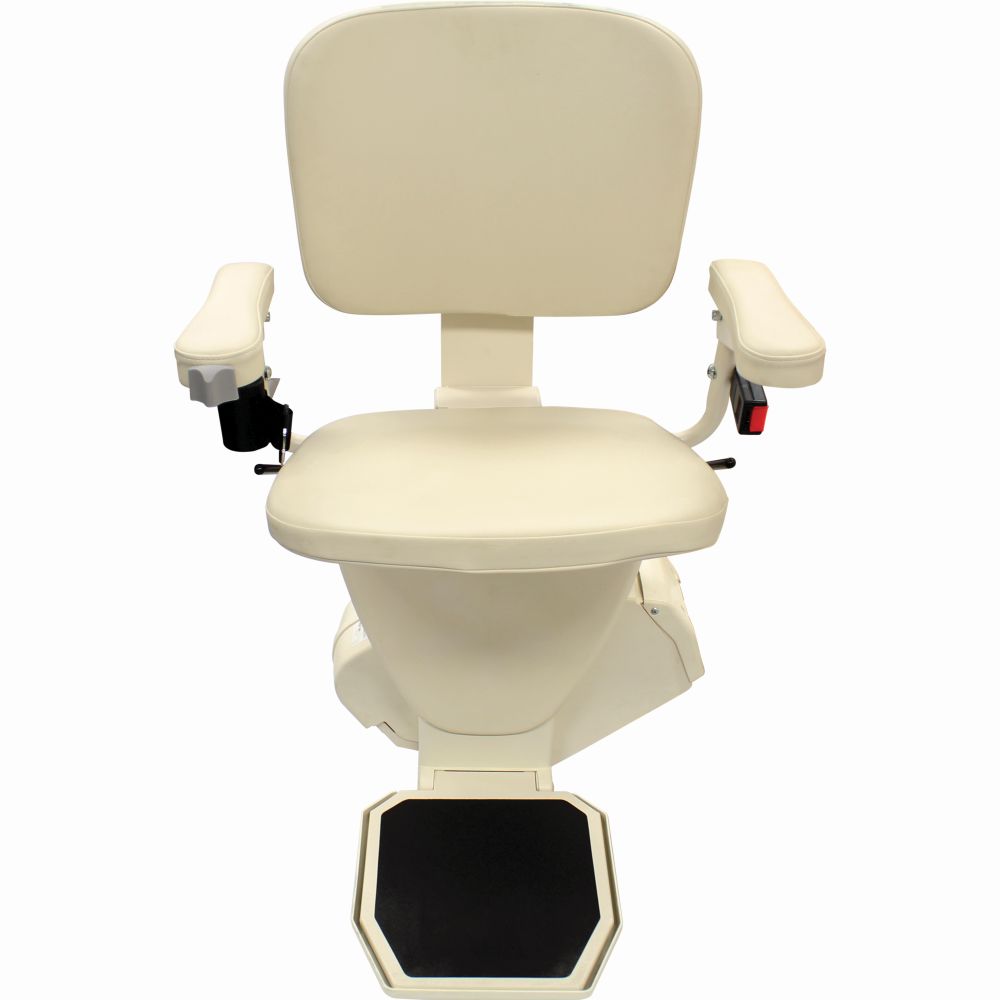

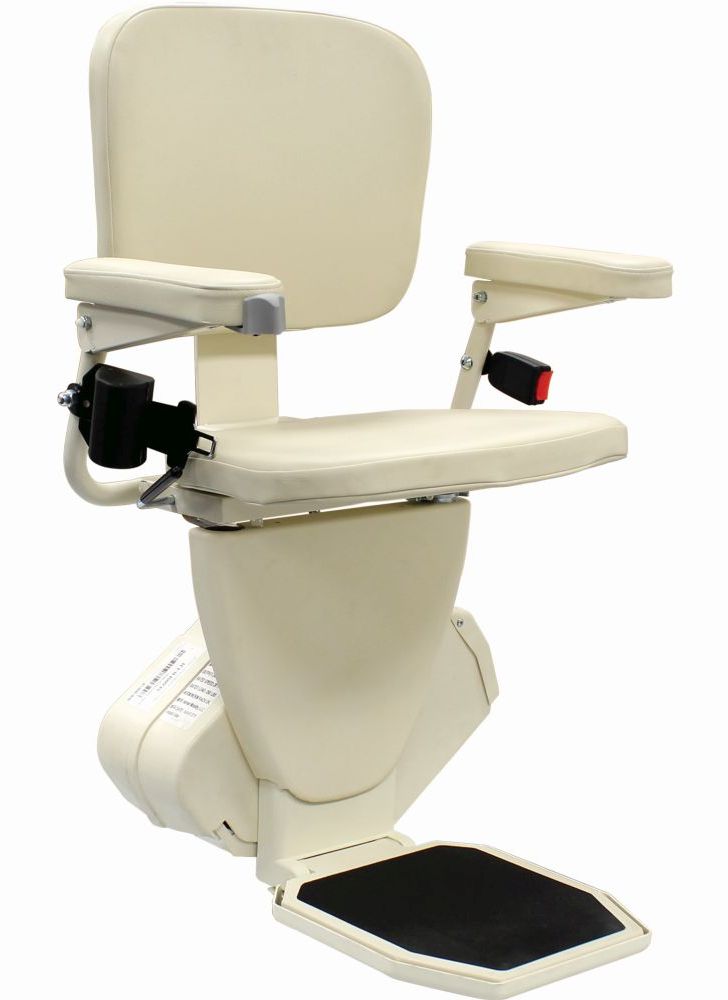

The AmeriGlide Rave is an ultra-compact stair lift designed to make restoring accessibility to your multi-level home as convenient and easy as possible! Homeowners with exceptionally narrow stair cases will love the ultra-thin design of this stair lift. The lift unit takes up only slightly more than 11 inches when folded, allowing able-bodied housemates and guests optimal access to the stairs. The AmeriGlide Rave is built for durability, with a tough all-metal case construction that withstands normal wear-and-tear far better than other comparable stair lift brands. The powerful worm-rack system can safely transport up to 350 pounds of user weight, and an adjustable-height padded seat with durable folding arms ensures that you will remain comfortable during transit - the seat measures in at 19.5 inches wide and 14 inches deep.

The AmeriGlide Rave differs from many of our competitors' stair lift units in that the track attaches to the stairs themselves rather than the wall, and every point of contact uses a single bracket, making installation easier on homeowners and handymen. The Rave is compatible with any standard household power outlet, and the battery that powers the unit charges at the top or bottom of the track, providing a reserve of power that keeps your stair lift going even in the event of a power outage. An arm-mounted operation switch is included as a standard feature, along with AmeriGlide's standard array of safety switches that prevent the lift from operating if an obstruction blocks your path. The seat swivels at the top, away from the steps, so the rider can safely exit or enter the stair lift.

Best of all, the AmeriGlide Rave lifts are assembled in the USA, which means quality you can depend on.

Stair lift users need a unit that is safe, comfortable, reliable, and easy to install. The AmeriGlide Rave satisfies all of your needs. To order, contact our mobility specialists today!

Drive TypePolymer Worm / Worm-Rack
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15.5'
Max Track Length, Optional70'
Track MaterialAluminum
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Seat Width, Min19.5"
Unit Footprint, In Use22.5"
Unit Footprint, Parked11"
Track Footprint7"
Track Width4.875"

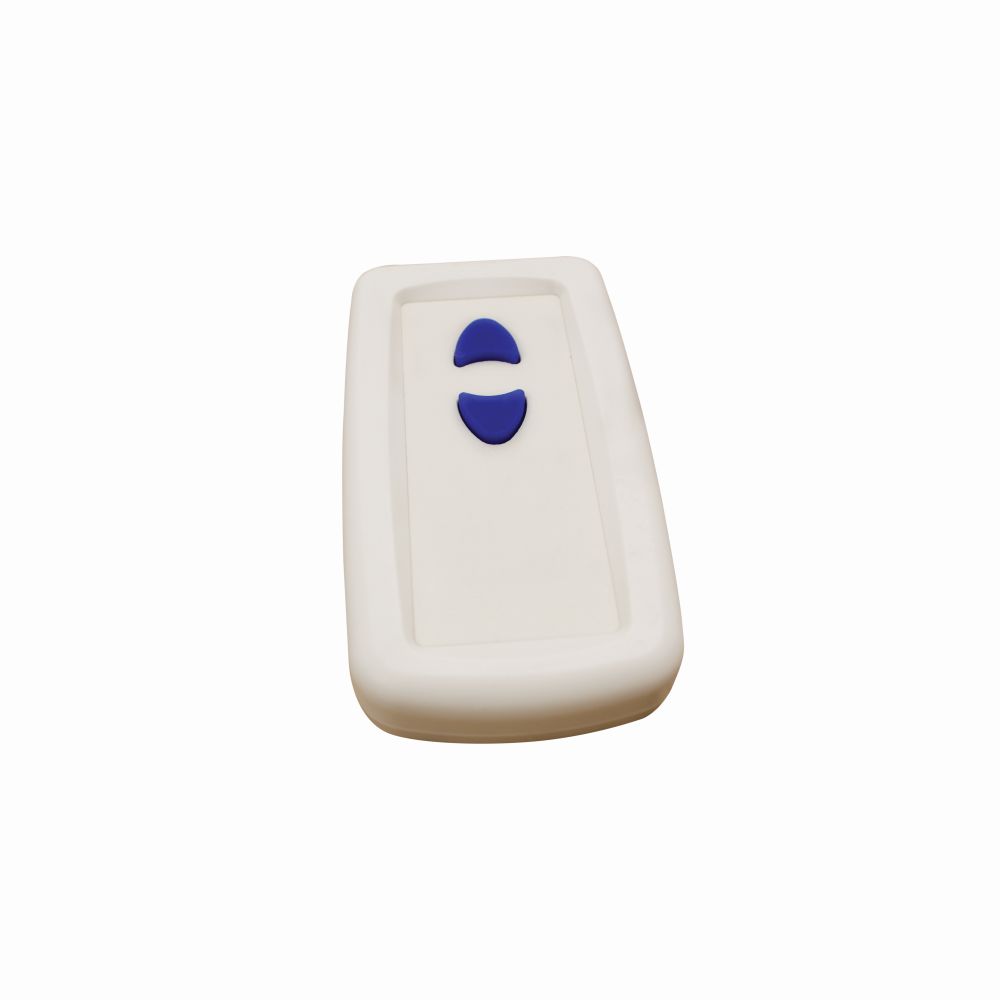

Call Stations IncludedYes - Wireless
Digital Diagnostics DisplayNo
Power Cord Lengths10' with the charger box in the middle
Key LockYes
  • Seat Style
    • Soft Vinyl Seat, Taupe - Swivels At The Top Stop Only   $0.00

      No Image
  • Track Lengths Selection: 15' (180") is Standard *
    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.   $0.00

      No Image
    • 15' (180") of Track   $0.00

      No Image
    • Length in inches if Shorter than 180" (allow +6" for entry/exit)   $0.00

      No Image
  • Additional Track (Maximum 70' Including the 15' Standard Track)
    • Up to 3' of Additional Track   $146.00

      No Image
    • Up to 5' of Additional Track   $228.00

      No Image
    • Up to 7'9" (93") of Additional Track   $345.00

      No Image
  • Bracket Length
    • Standard   $0.00

      No Image
    • Tall   $99.00

      No Image
  • Options
    • Seat Belt   $0.00

      No Image
    • Key Lock   $125.00

      No Image
    • Folding Rail   $999.00

      No Image
  • Call Stations
    • Top & Bottom Call-Send Stations   $0.00

      No Image
  • Orientation (looking UP the staircase)
    • The stair lift will be on the left   $0.00

      No Image
    • The stair lift will be on the right   $0.00

      No Image
  • Installation
    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout   $0.00

      No Image
    • Self Installation   $0.00

      No Image
    • Nationwide Installation   $575.00

      No Image
    • Nationwide Installation and Measurement Service   $725.00

      No Image
    • Double Stair Lift Installation Service - Per Stair Lift   $437.50

      No Image
    • Stair Lift Removal and Disposal   $460.00

      No Image
  • Installation Permit
    • License / Permit / Inspection   $425.00

      No Image
    • Permit and Inspection (Required in Alabama)   $285.00

      No Image
    • Permit and Inspection   $350.00

      No Image
    • Permit (Required in Kentucky for EACH item being installed)   $87.50

      No Image
    • Permit & Inspection (Required in Georgia. Additional units incur additional fee.)   $250.00

      No Image
  • Installation Special Cases
    • Installation On Concrete, Steel, or Tile Stairs   $300.00

      No Image
    • Installation In Remote or Limited Access Location   $285.00

      No Image
  • Measurements
    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   $0.00

      No Image
    • 1. Overall length   $0.00

      No Image
    • 2. Top stair to bottom stair   $0.00

      No Image
    • 3. Staircase width   $0.00

      No Image
    • 4. Bottom clearance   $0.00

      No Image
    • 5. Rise of one step   $0.00

      No Image
    • 6. Tread of one step   $0.00

      No Image
    • 7. Diagonal   $0.00

      No Image
    • 8. Door at the top   $0.00

      No Image
    • Need help measuring? Print out the "How to Measure" worksheet.   $0.00

      No Image
  • Warehouse Pickup
    • Pickup Unit from Raleigh Warehouse   $19.99

      No Image
29 reviews

22

6

1

0

0
Certified Customer
Easy install, good product
Nov 17, 2020 9:55 AM

A Little About Myself

Former carpenter. homeowner, computer engineer

Pros

easy install

Cons

Get the Harmar Instructions!!! Ameriglide are somewhat difficult to follow.

Service & Delivery

1 week delivery.
First, five (5) stars to Curtis (Tech Support) and Kevin (Sales). Remember these names if you need help. We installed 2 Ameriglide Raves ( Harmar Pinnacles). It was rather easy, with the 2nd one only taking a couple of hours. (If you don’t have any installation experiences, just really take your time and remember those names.) Some lessons I learned: 1. Get the Harmar Pinnacle installation instructions and look at the videos at least twice. 2. Check all part before doing anything. I missed a missing “limit cam” and had to call Curtis for a quick replacement. 3. You will spend about 40%+ of your time getting the 2” clearance for the track. After over an hour playing with the rail I ripped a piece of lumber into a 2”x2”x6’ board and taped it to the bullnose of the middle threads. That gave me the correct height and I was able to easily put the bottom and top brackets on, then fill in the rest. Next time(??!!!) I will use a cinder block to hold the bottom of the rail from sliding – the rails are heavy and gravity always wins. 5 get a magnetic nut driver or extension – will have you a lot of time. 6. Check your Allen Wrench set to make sure you have a 5/16”. 7. Be careful plugging the connectors in – they can be pushed into the chassis and then you have to open the chassis and waste a lot of time. 8. Be aware that the remotes are all on one frequency, so with two stair lifts calling for one to come down brings both of them down. 9. You only need to remove 1 plastic rack in order to slide the chassis on. Be careful – the chassis is rather heavy and you don’t want it to freefall down the rail. 10. Get someone to help if possible – the parts are heavy. 11. After doing your own test, retighten brackets, seat, etc. Hope this helps, and it is a thrill when all is done and folks are using the lifts. Modification I will do is to add small paddles to the lever used to swivel the seat to make it easier for folks with shorter arms to grasp. Overall, great support, easy installation and lifts work very well – good product.
0 of 1 person found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Chair Glide
Sep 30, 2020 1:33 PM

A Little About Myself

Needing a knee replacement

Pros

Allows access to our second floor. I come down in the morning without starting off with pain.

Cons

It's a bit slow and bigger then we had hoped.

Service & Delivery

We had installation and were not disappointed in our installer. The delivery of the unit was problematic. It was dropped off at the door. There were several huge boxes and, with both of us being in our 70's, it proved difficult to move it all in the house. Our installer showed up quickly, did a remarkable job and was pleasant to be around.
We ordered double seats due to cost and a staircase that turns and has a landing. Works well for us.
2 of 2 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Not Delivered on Time
Sep 6, 2020 10:49 PM

A Little About Myself

84 knee and foot problems

Pros

Bought two sets,easy to install 2 men 4 hours, work good , serve it’s purpose ,glade to have order them,

Cons

Got four boxes on time, Had paid a guy to come help my Son to install them on Sat cause it was suppose to arrive on Friday for $150, had to pay another $50. For a total $$200, for him to come on Tuesday after paying $400, for shipping and not arriving on time I feel they should refund me $200, for it not getting here on time

Service & Delivery

Service but delivery not so good if you are installing it your self or a family member ,you won’t mind waiting, But if you hire some one , Make sure you have all the parts ,one chair comes in 3 boxes, 2 in 6, before you get some one to install it, It will take two Man 4 hours to install Two, chairs lifts work great so far
Don’t depend on this arriving on time, other then that , it works find,
US Medical Supplies replies:
Thanks much for the review. We have often considered dropping our rush services because the carriers themselves, FedEx and UPS, often let us both down and give US Medical a bad name. Totally out of our control and the carriers will never refund any money for their poor service. Considering once again dropping "rush" service.
1 of 1 person found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Very pleased and satisfied with AmeriGlide Rave stairlift
Jun 20, 2020 6:49 PM

A Little About Myself

wife/caregiver

Pros

Ease of use

Cons

Service & Delivery

The lift was delivered timely.
My husband has Alzheimer's and using the stairs had become difficult as he would become unsure of his footing. The stairlift has removed the use of our stairs as an obstacle for his care in-home.
2 of 2 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Excellent lift
Nov 8, 2019 2:36 PM

A Little About Myself

Retired

Pros

Works well because we can't do steps

Cons

Couldn't find any.

Service & Delivery

Installed the morning after I called by very professional men.
Looks like it should last a lifetime. Well built.
3 of 3 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Love it!!
May 30, 2019 3:57 PM

A Little About Myself

Woman in her 60s

Pros

It changed my life!! I'm able to go to my basement by myself without the worry of falling. I'm so happy I made the decision to install one. The salesman was awesome...very knowledgeable and helpful...such a friendly young man! The installer did a super job as well. So happy and pleased all around!!

Cons

None

Service & Delivery

Great service
See comments above in the Pros’ section.
6 of 7 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Upstairs to my own bad for the foreseeable future!
May 19, 2019 11:28 AM

A Little About Myself

85 year old retired carpenter,retired 26 year USAF and USN vet and retired English teacher

Pros

Quality, ease of installation, and above all value for dollar spent!

Cons

Thus far, none to be seen!

Service & Delivery

Amazingly, it went just as planned! and best of all I saved $3,010:00 over what I was told was the deal for the ages by the other outfit!
I fell for a circular that invited us for a free steak dinner at the local Country Club to hear of the bargain of the year! The presenter was slick and as knowing as I thought I was I bought it the next day. almost seven weeks later a couple of "Cowboy" disheveled characters showed up and proposed to leave the lift without power for me to get it done! I chased them! and found your company on the net.
4 of 5 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
Great Purchase
Apr 15, 2019 8:27 AM

A Little About Myself

Pastor

Pros

Not bad to assemble (should have to people). Works smoothly.Easy to operate.

Cons

Service & Delivery

Excellent- ahead of schedule.
Very Satisfied.
2 of 2 people found this review helpful
Did you find this review helpful?   Yes / No

Not hard to install if you use the right instructions
Mar 26, 2019 4:50 PM

A Little About Myself

Service tech for an engineering co.

Pros

Well built

Cons

No installation video under Ameriglide. Look under pinnacle instead.

Service & Delivery

None purchased it used.
No installation video under Ameriglide. Look under pinnacle instead.
2 of 2 people found this review helpful
Did you find this review helpful?   Yes / No

Certified Customer
she loves her RAVE stair-lift!
Jul 24, 2018 11:14 AM

A Little About Myself

scientist

Pros

RAVE stair-lift works very well and flawlessly. Battery backup allows to operate even during power outage. Two Remote control units provide the capability to move the "chair" up and down remotely.

Cons

"Chair" only rotates/pivots inward.

Service & Delivery

Superb service and FAST DELIVERY!
Well designed product! User loves it! HIGHLY RECOMMENDED!
4 of 4 people found this review helpful
Did you find this review helpful?   Yes / No
