Crest Enclosed Elevator

$17,000.00
    Add to Cart

instant coupon

*Non-Continental U.S. States & Territories - please call for shipping charges.

Click Here to Submit Your Photos


Product Description
Ratings
(0)
(0)
Write a Review!

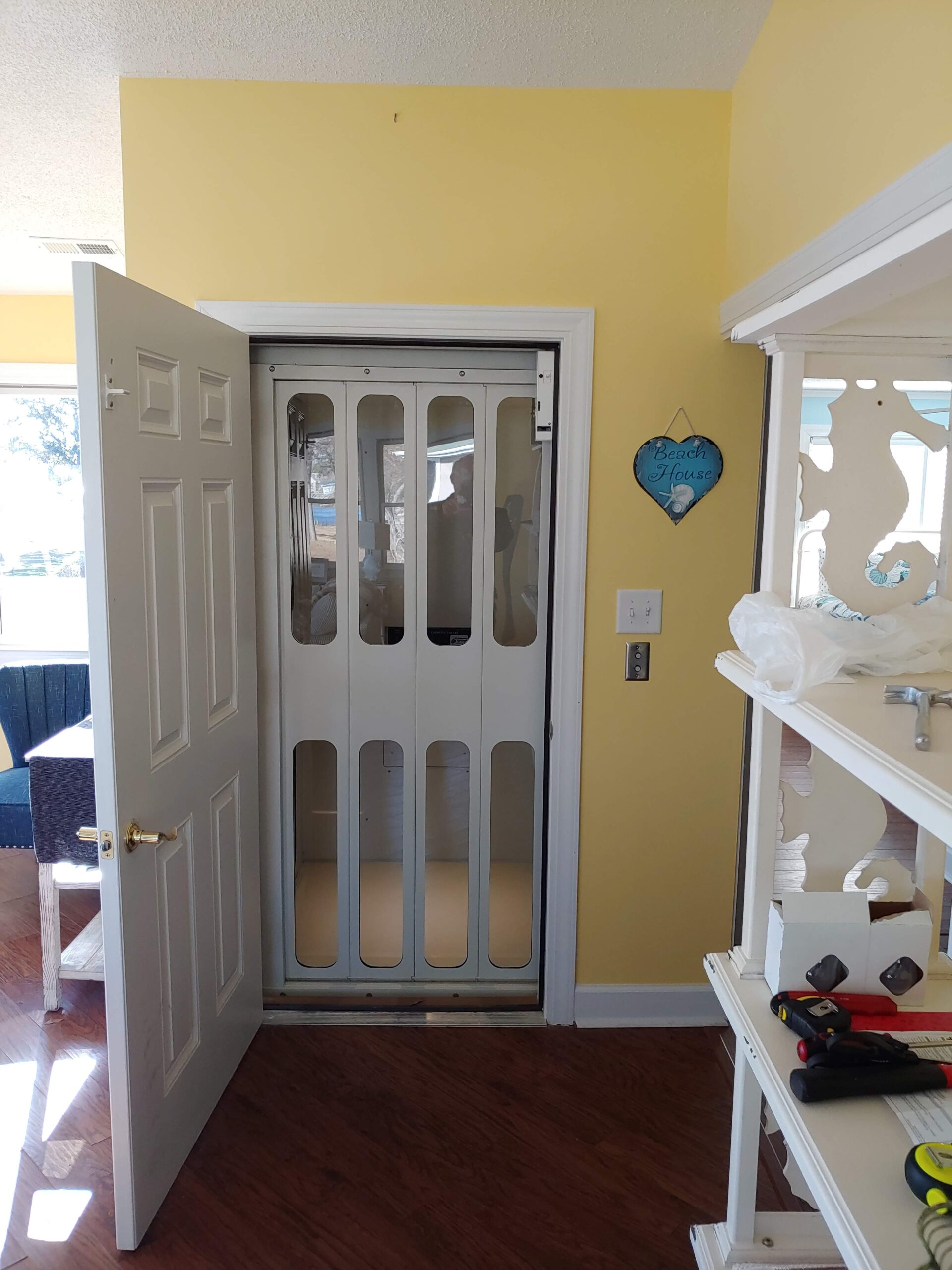

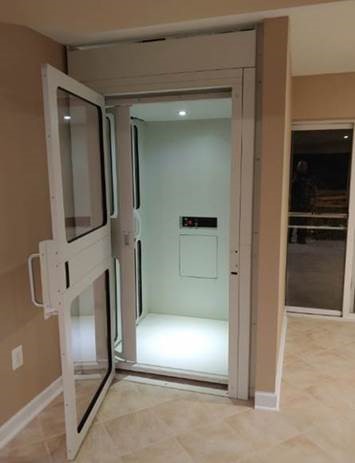

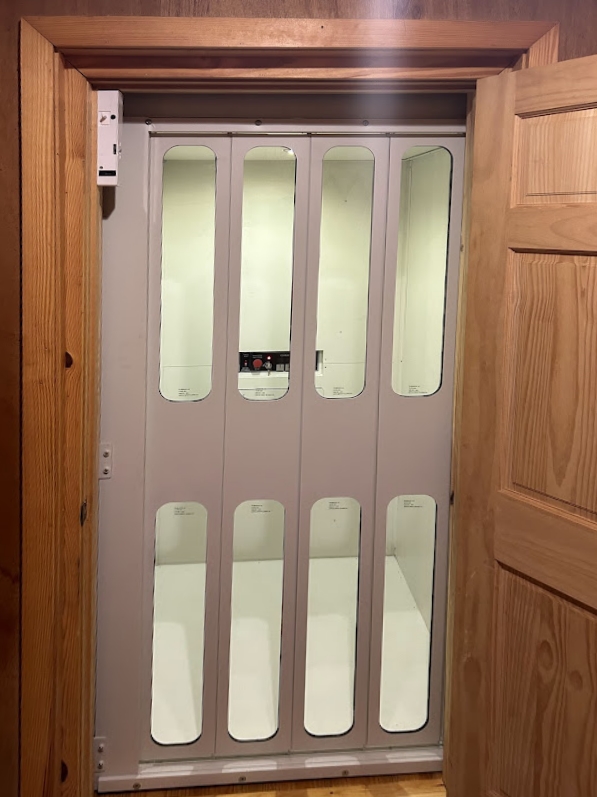

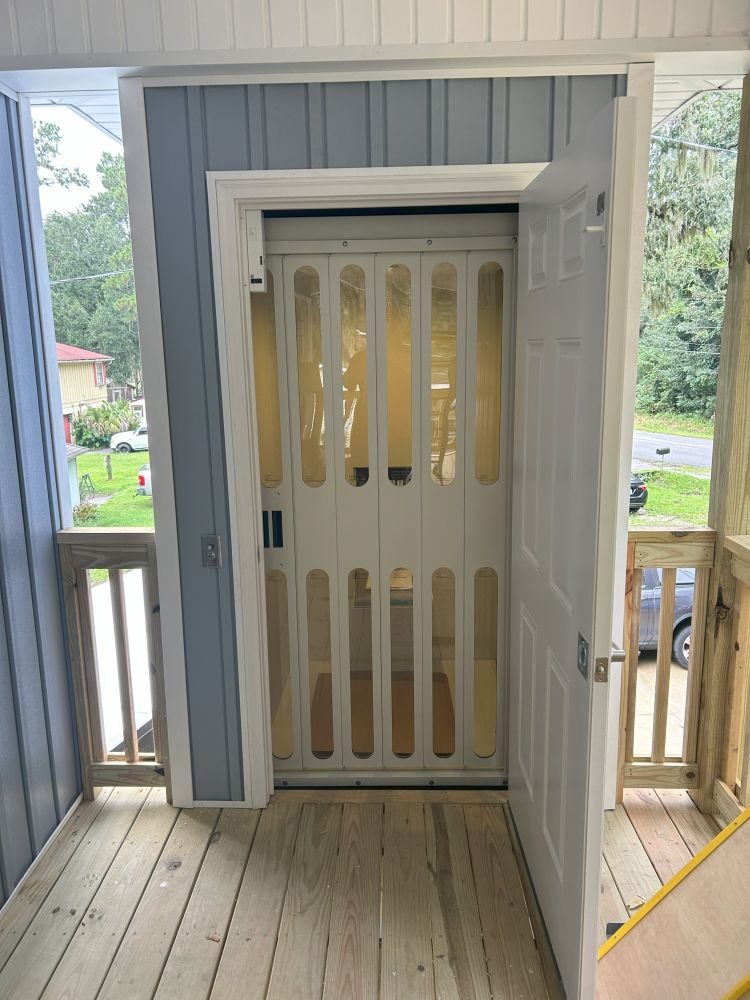

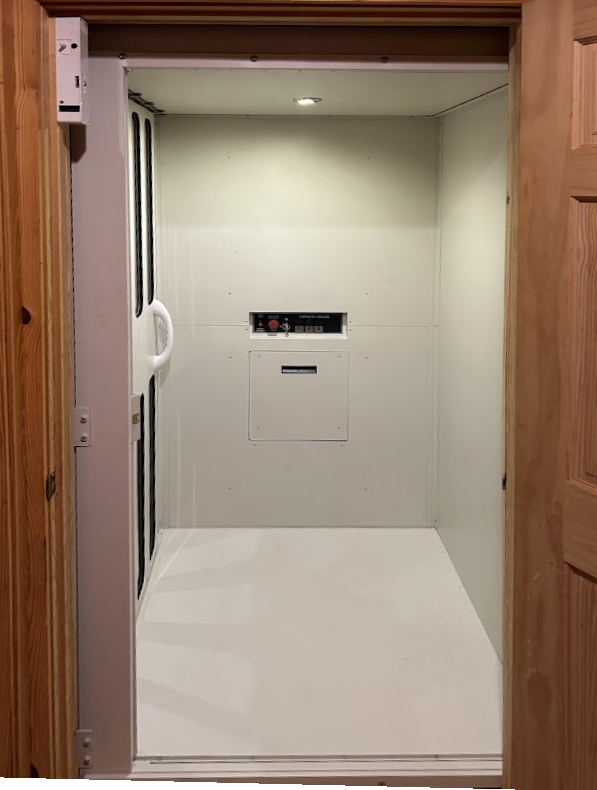

The Crest Enclosed Elevator can be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Enclosed can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.

Included Features:
    GENERAL:
  • Travel to 21' on 3-stop units at 15 fpm
  • Capacity: 500 lbs
  • Extruded 6063 grade aluminum track
  • Dual winding drum drive with ¼" aircraft cables – 7,000 lb breaking strengths
  • Maximum stops: 4
  • Installed in hoistway/enclosure

    • CAR:

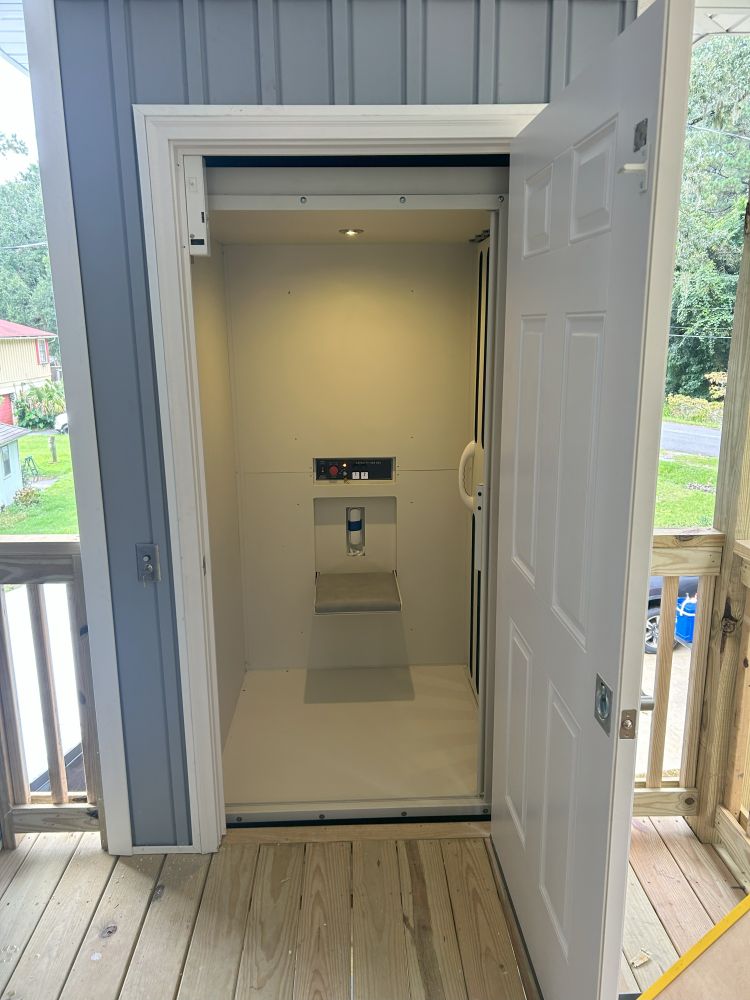

  • Fold down car seat
  • Finish: RAL 9002 powder coated with clear vision panels
  • Automatic lighting system
  • 36” wide car door opening (except for 90 degree applications)

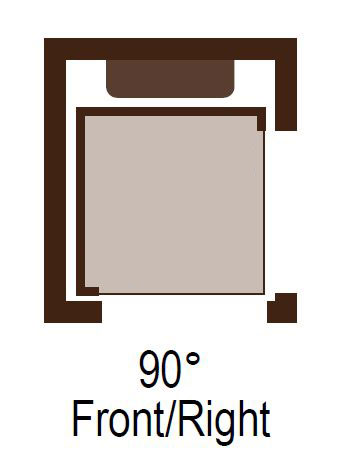

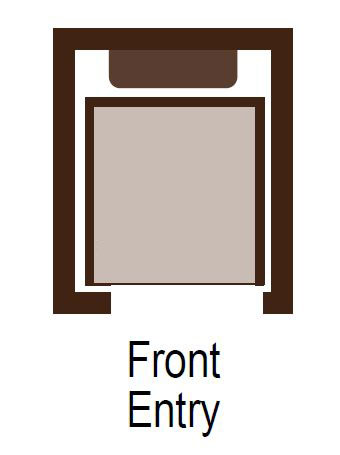

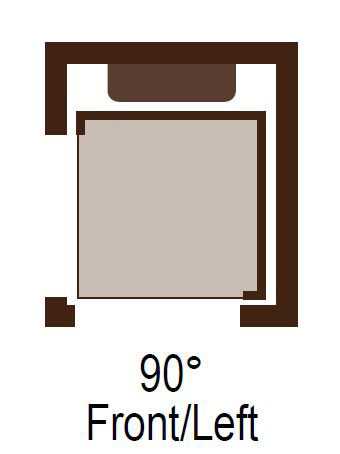

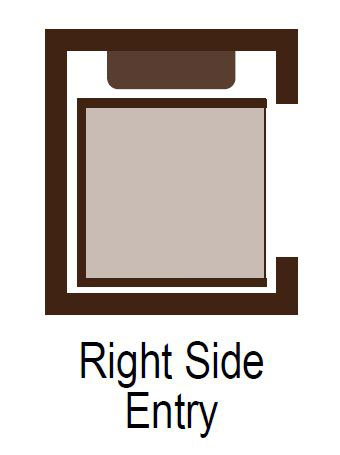

  • Single entry or 90 degree entry configurations

    • CONTROLS:
  • Battery powered with charger
  • Automatic operation
  • RF wireless call stations
  • Diagnostic indicator (LED)

    • SAFETY DEVICES:
  • Emergency stop and alarm
  • Slack cable device
  • Car door switch
  • Honeywell door interlock
  • Phone

Call for Shipping Price
Product Specifications
Applications
Residential
Capacity
500 lb
Maximum Travel Distance
31
Speed (per minute)
15'
Minimum Overhead Required
90"
Drive
Travels with Car
Motor/Pump
DC Motor
Warranty
2 year battery warranty – 3 year warranty on all other items.
Type
Dual Winding Drum
Cab Heights
76
Max Landings
4
Power Requirement
110 VAC 2A
Pit Depth
Pit Not Required
Emergency
Emergency Stop, Telephone in Car
Safety
LED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable



Options Available

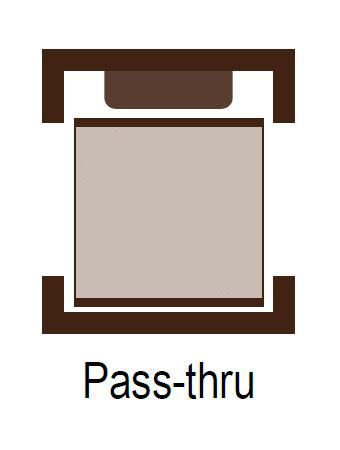

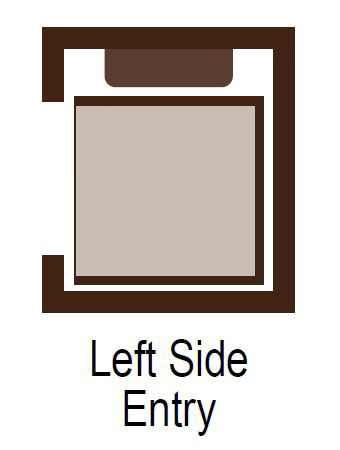

  • Car Configuration
  • Travel Distance

    • Up to 21'   $0.00

    • Over 21' to 31' (EZ6)   $1,429.00

  • Number of Stops

    • 2 Stops (EZ6)   $0.00

    • 3 Stops (EZ6)   $1,429.00

    • 4 Stops (EZ6)   $2,858.00

  • Travel Speed

    • 15 fpm   $0.00

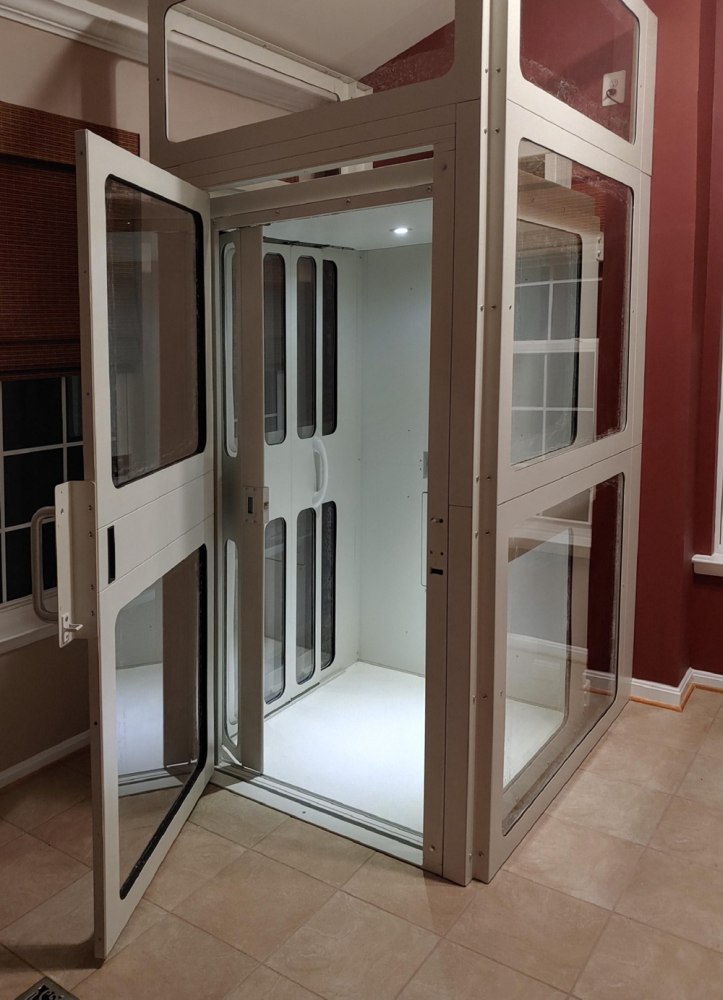

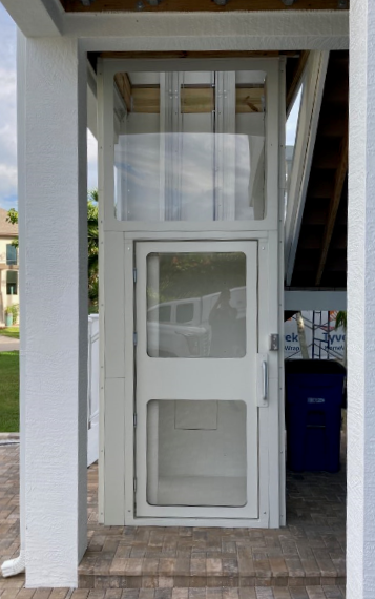

  • Enclosure and Options for Enclosure or Hoistway

    • Acrylic Enclosure 8' Section   $3,708.00

    • Floors over 8' for Extended Enclosure (per floor)   $429.00

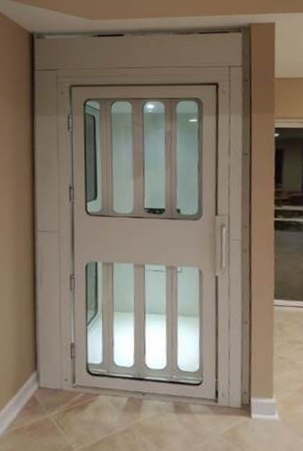

    • 36" Enclosure Style Door w/RDI Interlock   $1,922.00

    • 36" Flush Door Frame w/RDI Interlock (shaft and slab by others)   $1,208.00

    • 36" Fire Rated Steel Door w/RDI Interlock   $4,208.00

    • RDI Interlock with Latch Plate (for doors provided by others)   $429.00

    • Clear Vision Panels in Car Walls   $1,429.00

  • Custom Powder Coat Color (Standard is RAL 9002)

    • Adds to Lead Time and Requires an Approval of a Sample   $0.00

    • Elevator Car Custom Powder Coat   $3,215.00

    • Track / Header Custom Powder Coat   $858.00

    • 3 or 4 Landing Track Custom Powder Coat   $1,000.00

    • Enclosure Custom Powder Coat (per floor)   $1,072.00

    • Enclosure Door Custom Powder Coat (per door)   $822.00

    • RAL Color Code   $0.00

  • Options

    • Key Switch on Call Station (enclosed)   $72.00

    • Wireless Key Fob (per Fob)   $143.00

    • Automatic Return to Home Floor   $429.00

    • State Compliance Package   $572.00

    • Washington State Compliance Package   $572.00

  • Shipping - Call for Price

    • Call for Shipping Price   $0.00
