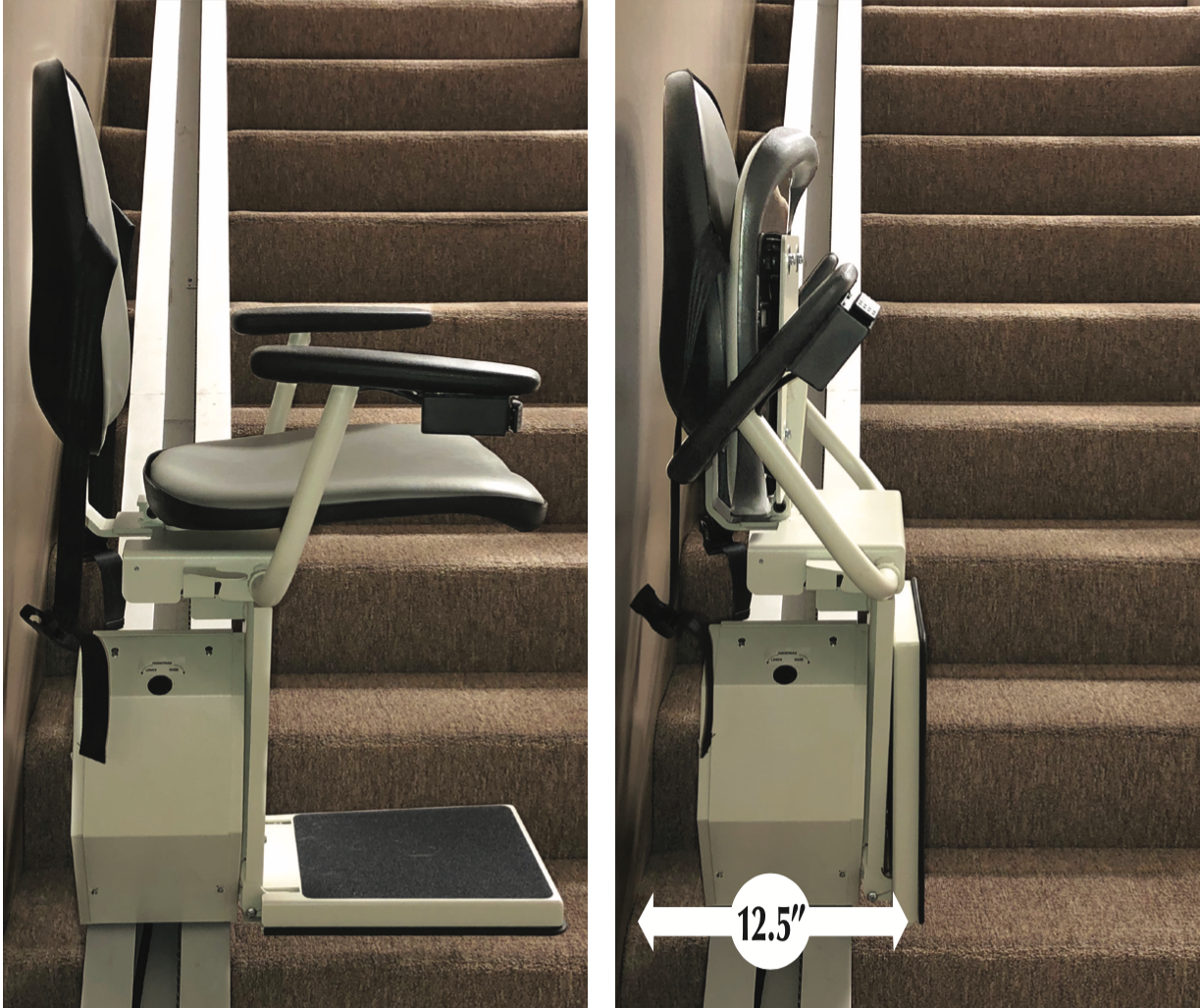

  • Shown Folded for Walkers to Access Stairs
  • Shown at the Top of the Stairs, Swiveled
  • Heading up or down the Stairs
  • Shown at the Bottom of the Stairs
  • Angled View at the Bottom of the Stairs

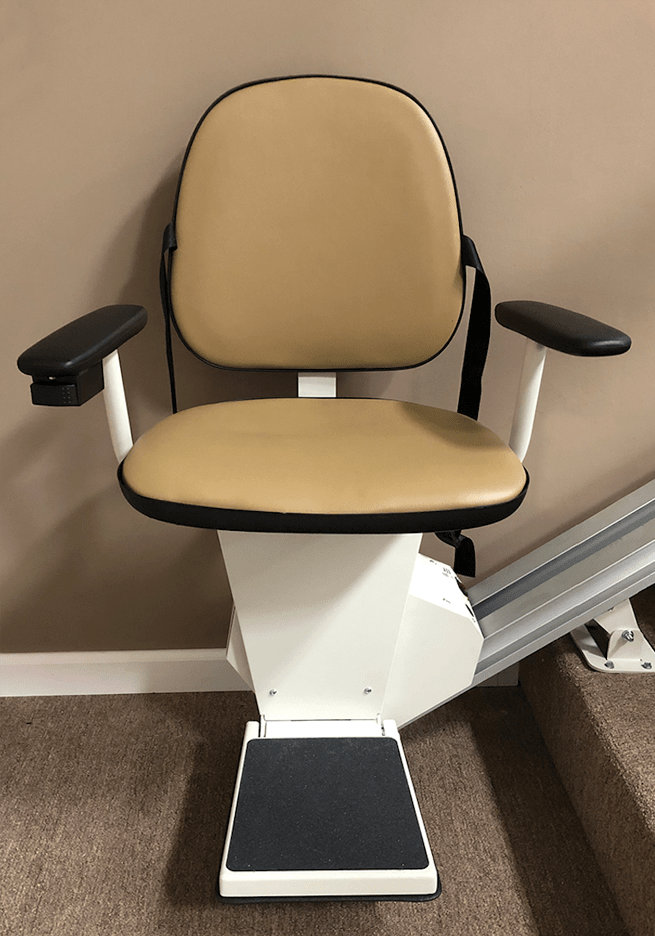

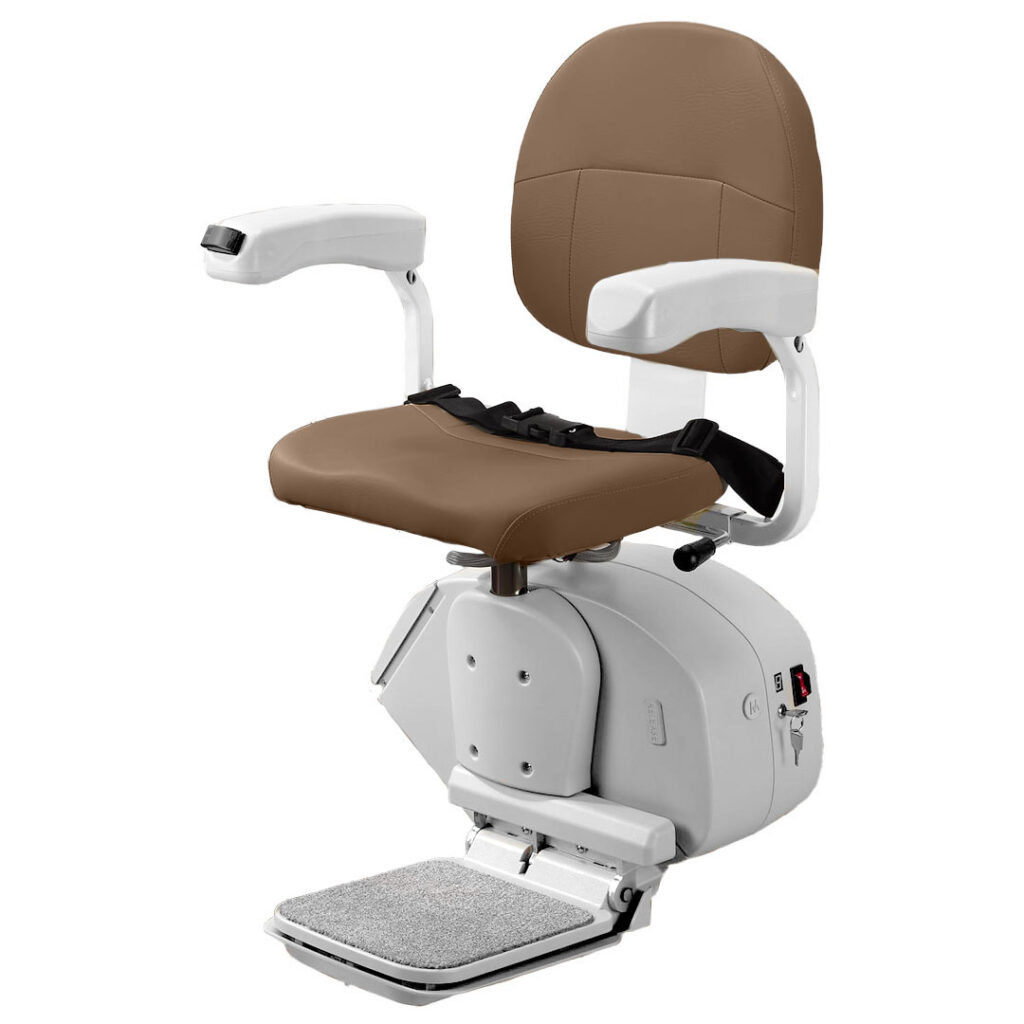

  • Shown in Light Brown

SERVICE / REPAIR
(855) 879-8090phone icon

Stair Lift Repair and Servicing
Certifications: If this product has one.
instant coupon
$2,149.00
+shipping
*Non-Continental U.S. States & Territories
- please call for shipping charges.

The Crest HD Stair Lift delivers exceptional versatility, heavy-duty performance, and advanced safety features. With a 350 lb. weight capacity, its universal design supports both left and right-side installation, while adjustable armrest width, seat height, and toggle control offer customizable comfort. A 2-position swivel seat ensures safe and easy transfers.

Functionality is enhanced with extra-long charging stations and 9Ah batteries, capable of lasting up to 20 days in power-saving sleep mode during outages. Maintenance is streamlined with a battery test point, diagnostic display, and easy-access service panels.

Robust safety features include:
  • 5 directional safety sensors
  • Retractable seat belt
  • Armrest and seat position sensors
  • Over-speed governor
  • Electro-mechanical brake system
  • Key switch for controlled access
An optional automatic hinged rail ensures safe clearance at the bottom of the stairs, making the Crest HD an ideal solution for both performance and peace of mind.

Notes: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option. A 10" overhang is required at the top of the stairs which needs to be calculated into the required track length.

Warranty

* 5 years on the motor gear box *
2 years on components
Drive Type
Rack and Pinion
Battery Powered
Yes
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
350 lb
Max Track Length, Standard
15.75'
Max Track Length, Optional
32'
Rail Angle, Min
25°
Rail Angle, Max
55°
Swivel Seat
Yes
Swivel Seat Rotation
90 Degrees at top landing
Flip-Up Seat
Yes
Flip-Up Armrests
Yes
Constant Pressure Controls
Yes
Footrest Safety Sensor
Yes
Seat Width, Min
16"
Seat Width, Max
20"
Seat Depth
16.36"
Unit Footprint, In Use
23"
Unit Footprint, Parked
13"
Call Stations Included
2 Wireless
Digital Diagnostics Display
No
Key Lock
Yes



  • Stair Lift Orientation (Looking Up the Stairs)
    • Right   $0.00

    • Left   $0.00

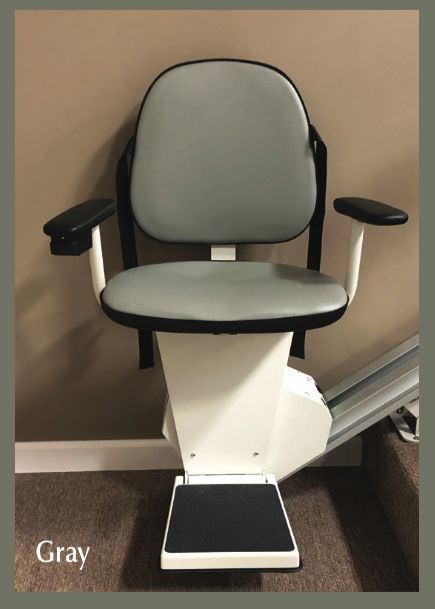

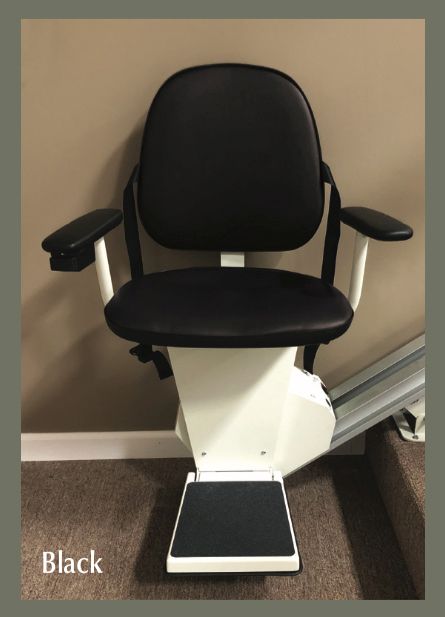

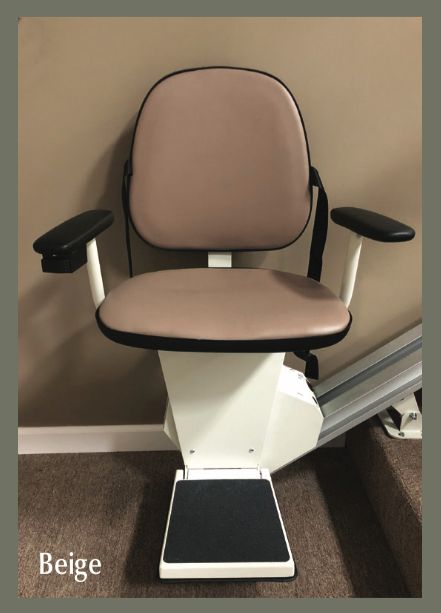

  • Upholstery Color
  • Track Length
    • Standard 16' Of Track   $0.00

    • Additional 8' Section of Track   $384.00

  • Stair Lift Measurements According to Measurement Guide
    • Step 1 - Total Staircase Length   $0.00

    • Step 2 - Top Landing to Bottom Step   $0.00

    • Step 3 - Stair Width   $0.00

    • Step 4 - Available Space at Bottom   $0.00

    • Step 5 - Height of One Step   $0.00

    • Step 6 - Length of One Tread   $0.00

    • Step 7 - One Step Front Edge to Front Edge   $0.00

    • Step 8 - Available Space at Top   $0.00

  • Options

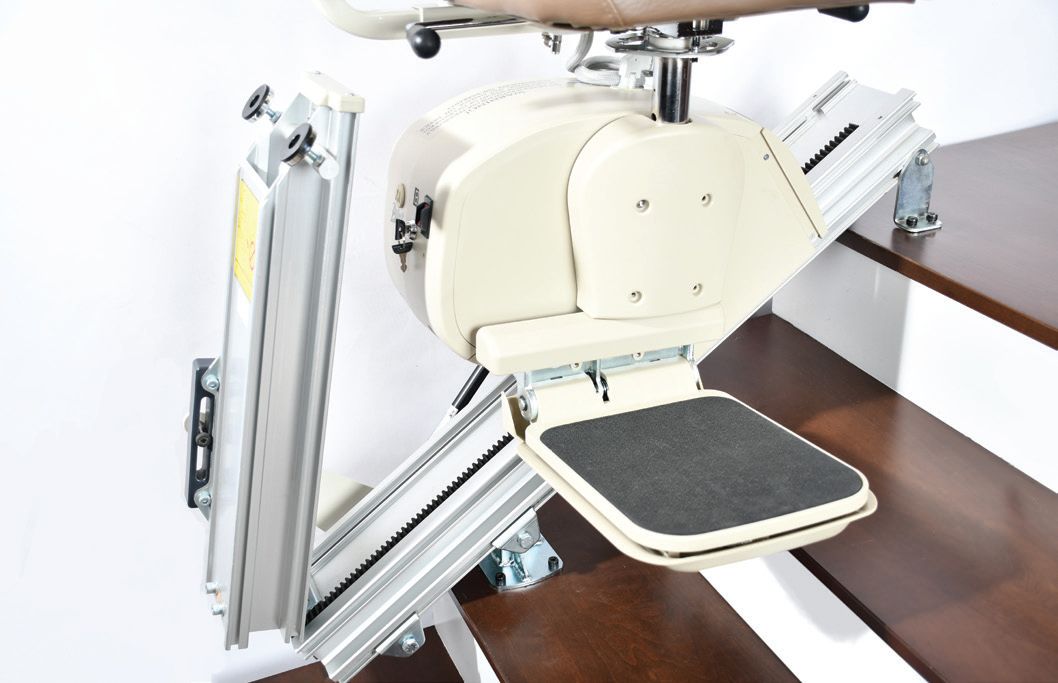

    • Hinge Rail   $834.00

      Hinge Rail
    • 6" Extended Indoor Brackets (each)   $9.00

    • 8' Charging Cable Extension   $15.00

    • Extended Footplate Kit - 2"   $167.00

    • Extended Seat Post Kit - 2"   $42.00

  • Installation
    • Self-Install   $0.00

    • Nationwide Installation Service   $599.00

    • Double Stair Lift Installation Service - Per Stair Lift   $437.50

    • Nationwide Measurement and Installation   $749.00

  • Installation Special Cases
    • Installation In Remote or Limited Access Location   $285.00

    • Installation On Concrete, Steel, or Tile Stairs   $300.00

    • Additional Charge for Installation in the States of: New York, and Massachusetts   $150.00

    • Existing Stair Lift Removal   $499.00

  • Shipping
    • Additional Shipping Charge for Unit with More Than 16' of Track   $154.00

    • Shipping to Alaska or Hawaii (Call for Price)   $0.00
