Crest VPL

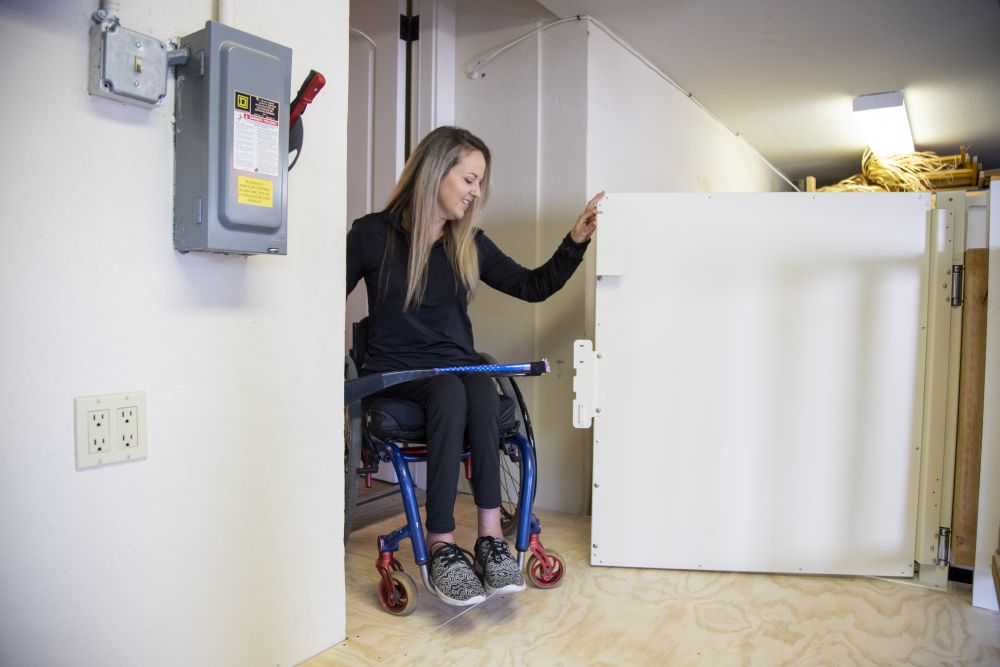

  • Heading Out of Home

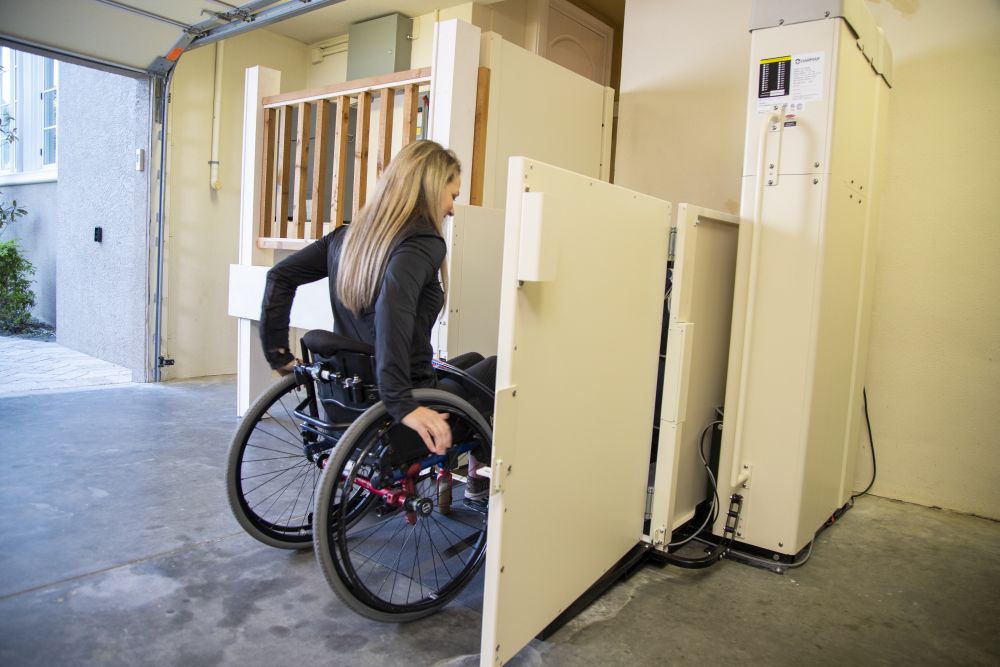

  • Exiting to Garage

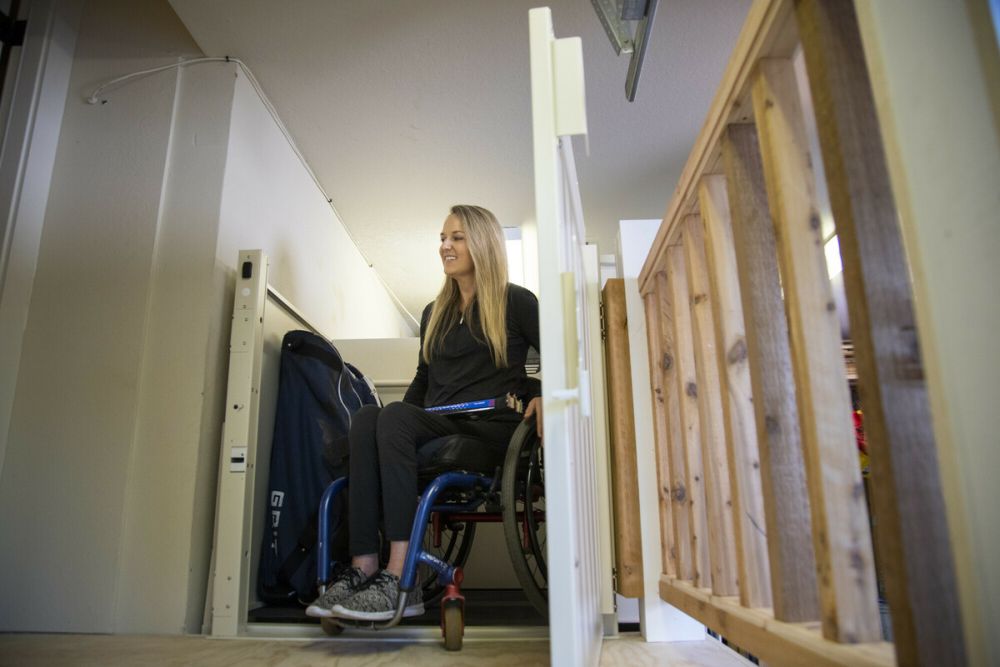

  • Shown Inside a Garage

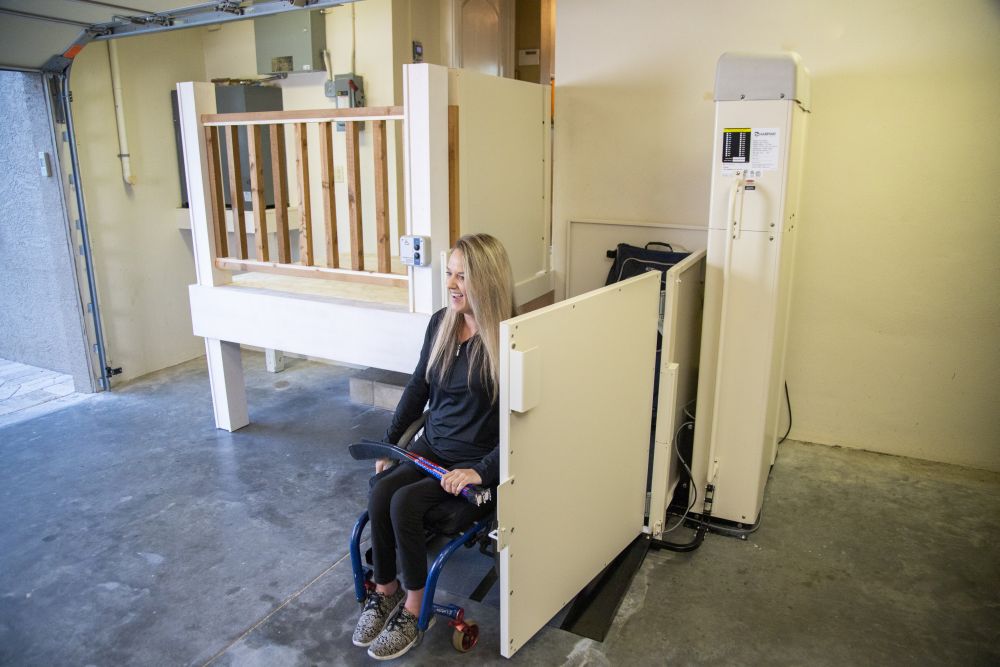

  • Ready to Enter Back into Home

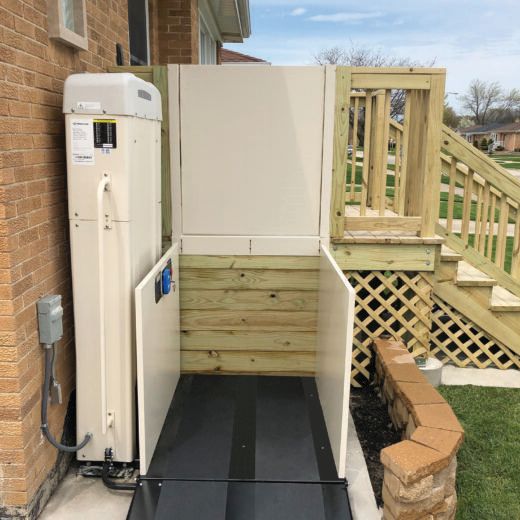

  • Standard Unit Outdoors - Front View
Certifications: If this product has one.
ETL Listed
$5,295.00
+shipping
instant coupon
*Non-Continental U.S. States & Territories
- please call for shipping charges.

Click Here to Submit Your Photos

Sales & Product
Questions
(800) 647-0916

Technical Support
1 (866) 294-4460


Ratings
(0)
(0)
The Crest VPL is a great value in Vertical Platform Lifts. New technologies introduced in the Crest make this VPL more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Crest VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.


Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
Lifting Capacity
750 lb
Standard Lift Height
53"
Maximum Lift Height Upgrade
171"
Arrives Assembled
Yes
Drive System
1" Diameter Acme Screw Drive
Optional Drive Systems
None Availaboe
Battery Powered Option
Yes
Constant Pressure Platform Control
Yes
Emergency Stop Platform Control
Included
Alarm Button
Optional
Keyed Platform Control
Optional
Call-Send Controls
One Per Stop Included
Optional Call-Send Controls
Keyed and/or Wireless
Platform Type
Solid with Non-Skid Coating
Platform Size
36" x 48" (34" Usable Width)
Optional Platform Sizes
36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform Configuration
Straight-Thru Access
Optional Platform Configurations
Same Side Entry-Exit, 90 Degree Adjacent Access
Upper Landing Gate
Optional
Upper Access Ramp
None Available
Lower Access Ramp
36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
Grab Rail
Included
Guard Panel
36", Optional 42"
Maximum Stops
3
Lift Speed (FPM)
10.4
Portable
No
Other Options
Fire-Rated Doors, Automatic Door Openers



  • Lifting Height
    • 53" MAXIMUM LIFT HEIGHT   $0.00

    • 77" MAXIMUM LIFT HEIGHT   $1,080.00

    • 101" MAXIMUM LIFT HEIGHT   $3,390.00

    • 125" MAXIMUM LIFT HEIGHT   $5,390.00

    • 149" MAXIMUM LIFT HEIGHT   $7,390.00

    • 171" MAXIMUM LIFT HEIGHT   $9,390.00

  • Application
    • Residential   $0.00

    • Commercial (adds: Lighted Emergency Stop w/Alarm, Handrail, 42" Platform Panels)   $393.00

  • Power Source
    • AC POWERED   $0.00

    • READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah   $1,070.00

    • READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah   $1,224.00

  • Use Options
    • OUTDOOR USE   $216.00

    • COLD WEATHER PACKAGE (FOR STANDARD UPS)   $262.00

    • COLD WEATHER PACKAGE (FOR PLUS UPS)   $508.00

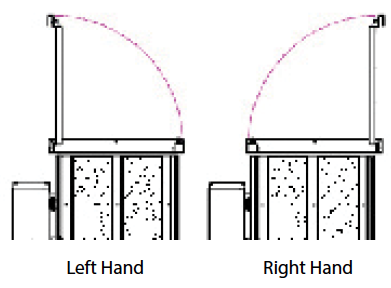

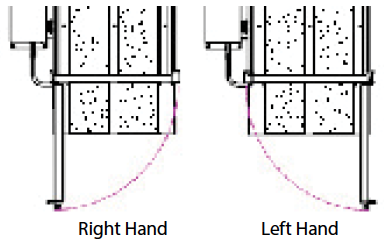

  • Tower Orientation
    • TOWER ON THE LEFT   $0.00

    • TOWER ON THE RIGHT   $0.00

  • Number of Stops
    • 2 STOPS   $0.00

    • 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL   $1,170.00

  • Hoistway Installation
    • INSTALLED IN A HOISTWAY   $0.00

    • NO HOISTWAY   $0.00

  • Platform Type (Width, Depth, Height)
    • Select From Options Below   $0.00

    • [___________36"_High____________]   $0.00

    • Straight Through (180 Degrees)   $0.00

    • 36 X 48 X 36 STRAIGHT THROUGH PLATFORM   $0.00

    • [___________42"_High____________]   $0.00

    • Straight Through (180 Degrees)   $0.00

    • 36 X 54 X 42 STRAIGHT THROUGH PLATFORM   $454.00

    • 36 X 60 X 42 STRAIGHT THROUGH PLATFORM   $839.00

    • 42 X 54 X 42 STRAIGHT THROUGH PLATFORM   $931.00

    • 42 X 60 X 42 STRAIGHT THROUGH PLATFORM   $1,047.00

    • 90 Degrees   $0.00

    • 36 X 54 X 42 90 Degree LEFT PLATFORM   $839.00

    • 36 X 54 X 42 90 Degree RIGHT PLATFORM   $839.00

    • 36 X 60 X 42 90 Degree LEFT PLATFORM   $1,247.00

    • 36 X 60 X 42 90 Degree RIGHT PLATFORM   $1,247.00

    • 42 X 54 X 42 90 Degree LEFT PLATFORM   $1,354.00

    • 42 X 54 X 42 90 Degree RIGHT PLATFORM   $1,354.00

    • 42 X 60 X 42 90 Degree LEFT PLATFORM   $1,454.00

    • 42 X 60 X 42 90 Degree RIGHT PLATFORM   $1,454.00

    • Same Side Entry/Exit (0 Degrees)   $0.00

    • 36 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM   $839.00

    • 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM   $1,247.00

    • 42 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM   $1,354.00

    • 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM   $1,454.00

  • Platform Gate
    • LIFTS 8' AND OVER THAT ARE NOT IN A HOISTWAY REQUIRE A PLATFORM GATE OR AN INTERLOCK FOR A CUSTOMER PROVIDED GATE.   $0.00

    • NO PLATFORM GATE   $0.00

    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT   $1,454.00

      36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT
    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT   $1,454.00

    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT   $1,700.00

    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT   $1,700.00

  • Platform Controls
    • Paddle Controls with Emergency Stop Button   $0.00

    • Emergency Stop Alarm with Lighted Button   $193.00

  • Platform Options
    • 54" HANDRAIL [FOR RESIDENTIAL INSTALLATIONS]   $154.00

    • 60" HANDRAIL [FOR RESIDENTIAL INSTALLATIONS]   $193.00

    • Keylocks for Controls   $108.00

    • CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)   $154.00

  • Ramp Type
    • 36" AUTO-FOLD RAMP   $0.00

    • 42" AUTO-FOLD RAMP   $116.00

    • 36" FIXED RAMP   $0.00

    • 42" FIXED RAMP   $116.00

    • Pit, no Ramp (Add Pit Switch)   $262.00

  • Landing Gate
  • Landing Gate Call/Send
    • CALL-SEND ROCKER SWITCH FOR LANDING GATE   $136.00

    • CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE   $247.00

  • Fire Rated Doors
  • Automatic Opener
    • AUTOMATIC OPENER FOR LANDING GATE   $3,108.00

    • AUTOMATIC DOOR OPENER FOR FULL DOOR   $3,108.00

  • Interlocks
    • INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.   $0.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH   $585.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH   $585.00

    • OTHER INTERLOCK OPTIONS   $0.00

    • WIRING FOR INTERLOCKS PROVIDED BY OTHERS   $300.00

    • KEYED DEAD LATCH FOR USE W/FLUSH MOUNT ELECTRIC STRIKE   $262.00

  • Call Send Options
    • CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)   $262.00

    • KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)   $354.00

    • WIRELESS CALL/SEND CONTROLS FOR 1 LANDING   $393.00

    • WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS   $770.00

    • WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS   $1,154.00

  • Fascia Panels
    • NO FASCIA PANELS   $0.00

    • FASCIA PANEL; 41" WIDE x 24" TALL   $116.00

    • FASCIA PANEL; 41" WIDE x 53" TALL   $162.00

    • FASCIA PANEL; 47" WIDE x 24" TALL   $147.00

    • FASCIA PANEL; 47" WIDE x 53" TALL   $231.00

    • FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT   $239.00

    • FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT   $270.00

  • Additional Options
    • TOWER BRACE WITH BRACKET   $300.00

    • PHONE JACK   $262.00

    • EMERGENCY TOWER LIGHT, BACK-UP   $262.00

    • EXTRA KEYS (EACH)   $47.00

    • CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for color options and price)   $0.00

    • FLOAT LEVEL SWITCH   $262.00

    • Pit Switch   $262.00

  • Delivery Options
    • FLAT BED AND FORKLIFT DELIVERY   $539.00

    • Liftgate Service (for 53" only)   $130.00

    • Residential Delivery or High Cost Delivery Zone   $145.00

    • Pickup at Freight Terminal   $0.00

  • Delivery State
    • Delivery Outside of the United States   $0.00

    • Alabama   $0.00

    • Alaska   $0.00

    • Arizona   $0.00

    • Arkansas   $0.00

    • California   $0.00

    • Colorado   $0.00

    • Connecticut   $0.00

    • Delaware   $0.00

    • District of Columbia   $0.00

    • Florida   $0.00

    • Georgia   $0.00

    • Hawaii   $0.00

    • Idaho   $0.00

    • Illinois   $0.00

    • Indiana   $0.00

    • Iowa   $0.00

    • Kansas   $0.00

    • Kentucky   $0.00

    • Louisiana   $0.00

    • Maine   $0.00

    • Maryland   $0.00

    • Massachusetts   $0.00

    • Michigan   $0.00

    • Minnesota   $0.00

    • Mississippi   $0.00

    • Missouri   $0.00

    • Montana   $0.00

    • Nebraska   $0.00

    • Nevada   $0.00

    • New Hampshire   $0.00

    • New Jersey   $0.00

    • New Mexico   $0.00

    • New York   $0.00

    • North Carolina   $0.00

    • North Dakota   $0.00

    • Ohio   $0.00

    • Oklahoma   $0.00

    • Oregon   $0.00

    • Pennsylvania   $0.00

    • Rhode Island   $0.00

    • South Carolina   $0.00

    • South Dakota   $0.00

    • Tennessee   $0.00

    • Texas   $0.00

    • Utah   $0.00

    • Vermont   $0.00

    • Virginia   $0.00

    • Washington   $0.00

    • West Virginia   $0.00

    • Wisconsin   $0.00

    • Wyoming   $0.00

This product currently has no reviews. Would you like to leave one?
