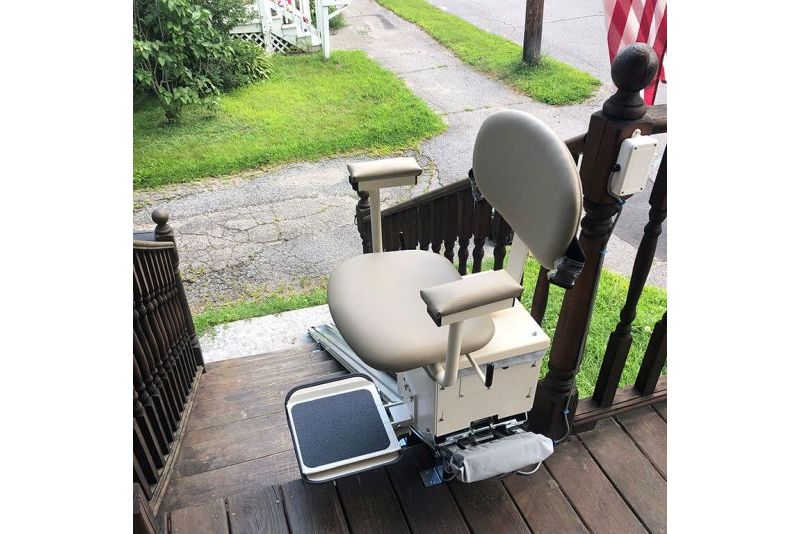

Outdoor Stair Lifts are not intended for use in snow and ice
| Drive Type | Cable |
| Battery Powered | No |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 25' |
| Rail Angle, Min | 30° |
| Rail Angle, Max | 45° |
| Track Material | Extruded Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Seat Width, Min | 19" |
| Seat Width, Max | 21" |
| Seat Depth | 14" |
| Unit Footprint, In Use | 24.25" |
| Unit Footprint, Parked | 14" |
| Track Footprint | 10" |
| Digital Diagnostics Display | No |
| Key Lock | No |
Options Available
- Seat Size
Standard, 19" W $0.00
Extra Wide, 21" W $275.00
Flip-Up Armrest Seat, 19" W $275.00
- Vinyl Seat Color
Light Almond $0.00
- Options
Outdoor Package - Includes covers for the seat & chassis, track header, and between the seat & chassis $0.00
Keylock Package - Keyed Base & Keyed Call-Send Controls $350.00
Keyed Base Only $185.00
Grocery Basket $235.00
- Track Length (15' is Standard *)
* Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs. $0.00
Custom Cut track Less Than 15' $120.00
15' of track (180") $0.00
Track length 16' and over reduces weight capacity to 250 pounds $0.00
Up to 20' of track - 250 lb. capacity $392.00
20' to 25' of track - 250 lb. capacity $558.00
- Orientation (looking UP the staircase)
The stair lift will be on the left $0.00
The stair lift will be on the right $0.00
- Installation
NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout $0.00
Self Installation $0.00
Nationwide Installation $575.00
Nationwide Installation and Measurement Service $725.00
Stair Lift Removal and Disposal $460.00
- Installation Permit
Permit (Required in Kentucky for EACH item being installed) $87.50
- Installation Special Cases
Installation On Concrete, Steel, or Tile Stairs $300.00
Installation In Remote or Limited Access Location $285.00
- Measurements
Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step. $0.00
1. Overall length $0.00
2. Top stair to bottom stair $0.00
3. Staircase width $0.00
4. Bottom clearance $0.00
5. Rise of one step $0.00
6. Tread of one step $0.00
7. Diagonal $0.00
8. Door at the top $0.00
Need help measuring? Print out the "How to Measure" worksheet. $0.00
