Harmar 400-X VPL

Harmar 400-X VPL
  • Ground Level
Certifications: If this product has one.
$6,425.00
+shipping
instant coupon
*Non-Continental U.S. States & Territories - please call for shipping charges.

Click Here to Submit Your Photos

Sales & Product
Questions
(800) 647-0916

Technical Support
1 (866) 294-4460


Ratings
(0)
(0)

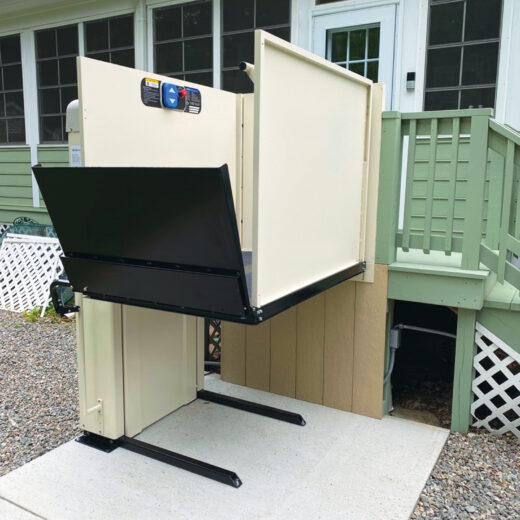

The Harmar 400-X Vertical Platform Lift represents a new generation and evolution in Vertical Platform Lifts.

Innovation is at the heart of this next generation VPL. The Harmar 400-X is an outstanding choice for vertical lifting solutions in home settings where an elevator is impractical or unnecessary. SteadyDrive Ensures a smooth, quiet and stable lift.

Shipping prices are for the Contiguous 48 States. For other delivery location, please call for a quote.
Lifting Capacity
750 lb
Standard Lift Height
53"
Maximum Lift Height Upgrade
53"
Arrives Assembled
Yes
Drive System
Acme Screw Drive
Battery Powered Option
No
Constant Pressure Platform Control
Yes
Platform Size
36" x 48" (34" Usable Width)
Optional Platform Sizes
36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform Configuration
Straight-Thru Access
Guard Panel
36" for 36"x48" Platform, all others 42"
Lift Speed (FPM)
10.4
Portable
No



  • Lifting Height
    • 53" MAXIMUM LIFT HEIGHT   $0.00

  • Application
    • Residential   $0.00

  • Power Source
    • AC POWERED   $0.00

  • Use Option
    • OUTDOOR USE   $202.00

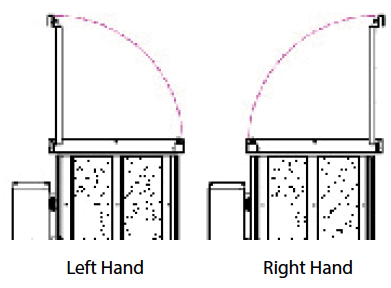

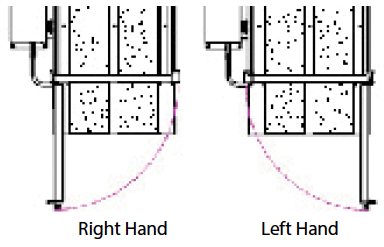

  • Tower Orientation
    • TOWER ON THE LEFT   $0.00

    • TOWER ON THE RIGHT   $0.00

  • Number of Stops
    • 2 STOPS   $0.00

  • Hoistway Installation
    • INSTALLED IN A HOISTWAY   $0.00

    • NO HOISTWAY   $0.00

  • Platform Type (Width, Depth, Height)
    • Select From Options Below   $0.00

    • [___________36"_High____________]   $0.00

    • Straight Through (180 Degrees) Requires Folding Ramp   $0.00

    • 36 X 48 X 36 STRAIGHT THROUGH PLATFORM   $0.00

    • [___________42"_High____________]   $0.00

    • Straight Through (180 Degrees)   $0.00

    • 36 X 54 X 42 STRAIGHT THROUGH PLATFORM   $422.00

    • 36 X 60 X 42 STRAIGHT THROUGH PLATFORM   $779.00

    • 42 X 54 X 42 STRAIGHT THROUGH PLATFORM   $865.00

    • 42 X 60 X 42 STRAIGHT THROUGH PLATFORM   $972.00

    • 90 Degrees (Tower on Left / Right determined by looking into lift from ground level)   $0.00

    • 36 X 54 X 42 90 Degree LEFT PLATFORM   $779.00

    • 36 X 54 X 42 90 Degree RIGHT PLATFORM   $779.00

    • 36 X 60 X 42 90 Degree LEFT PLATFORM   $1,158.00

    • 36 X 60 X 42 90 Degree RIGHT PLATFORM   $1,158.00

    • 42 X 54 X 42 90 Degree LEFT PLATFORM   $1,258.00

    • 42 X 54 X 42 90 Degree RIGHT PLATFORM   $1,258.00

    • 42 X 60 X 42 90 Degree LEFT PLATFORM   $1,350.00

    • 42 X 60 X 42 90 Degree RIGHT PLATFORM   $1,350.00

  • Platform Gate
    • 42" High Gates Below not for 36" High Platform   $0.00

    • NO PLATFORM GATE   $0.00

    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT   $1,350.00

      36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT
    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT   $1,350.00

    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT   $1,579.00

    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT   $1,579.00

  • Platform Controls
    • Emergency Stop Alarm with Lighted Button   $165.00

  • Platform Options
    • 54" HANDRAIL [Not applicable for 36x48x36]   $143.00

    • 60" HANDRAIL [Not applicable for 36x48x36]   $179.00

    • Keylocks for Controls   $108.00

    • CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)   $143.00

  • Ramp Type
    • 36" AUTO-FOLD RAMP [Must Select for 36x48x36 Platform]   $0.00

    • 42" AUTO-FOLD RAMP   $108.00

    • 36" FIXED RAMP   $0.00

    • 42" FIXED RAMP   $108.00

    • Pit, no Ramp (Add Pit Switch)   $243.00

  • Interlocks
    • INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.   $0.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH   $543.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH   $543.00

    • OTHER INTERLOCK OPTIONS   $0.00

    • WIRING FOR INTERLOCKS PROVIDED BY OTHERS   $279.00

  • Landing Gate
  • Landing Gate Call/Send
    • CALL-SEND ROCKER SWITCH FOR LANDING GATE   $136.00

    • CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE   $229.00

  • Call Send Options
    • CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)   $243.00

    • KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)   $329.00

  • Fascia Panels
    • NO FASCIA PANELS   $0.00

    • FASCIA PANEL; 41" WIDE x 24" TALL   $108.00

    • FASCIA PANEL; 41" WIDE x 53" TALL   $150.00

    • FASCIA PANEL; 47" WIDE x 24" TALL   $136.00

    • FASCIA PANEL; 44" WIDE x 53" TALL   $215.00

    • FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT   $222.00

    • FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT   $250.00

  • Additional Options
    • TOWER BRACE WITH BRACKET   $279.00

    • EXTRA KEYS (EACH)   $43.00

    • FLOAT LEVEL SWITCH   $243.00

    • CUSTOM COLOR (ALLOW 6-8 WEEKS - Call for Availability and Price)   $0.00

  • Delivery Options
    • FLAT BED AND FORKLIFT DELIVERY   $539.00

    • Liftgate Service   $130.00

    • Residential Delivery or High Cost Delivery Zone   $130.00

    • Pickup at Freight Terminal   $0.00

  • Delivery State
    • Delivery Outside of the United States   $0.00

    • Alabama   $0.00

    • Alaska   $0.00

    • Arizona   $0.00

    • Arkansas   $0.00

    • California   $0.00

    • Colorado   $0.00

    • Connecticut   $0.00

    • Delaware   $0.00

    • District of Columbia   $0.00

    • Florida   $0.00

    • Georgia   $0.00

    • Hawaii   $0.00

    • Idaho   $0.00

    • Illinois   $0.00

    • Indiana   $0.00

    • Iowa   $0.00

    • Kansas   $0.00

    • Kentucky   $0.00

    • Louisiana   $0.00

    • Maine   $0.00

    • Maryland   $0.00

    • Massachusetts   $0.00

    • Michigan   $0.00

    • Minnesota   $0.00

    • Mississippi   $0.00

    • Missouri   $0.00

    • Montana   $0.00

    • Nebraska   $0.00

    • Nevada   $0.00

    • New Hampshire   $0.00

    • New Jersey   $0.00

    • New Mexico   $0.00

    • New York   $0.00

    • North Carolina   $0.00

    • North Dakota   $0.00

    • Ohio   $0.00

    • Oklahoma   $0.00

    • Oregon   $0.00

    • Pennsylvania   $0.00

    • Rhode Island   $0.00

    • South Carolina   $0.00

    • South Dakota   $0.00

    • Tennessee   $0.00

    • Texas   $0.00

    • Utah   $0.00

    • Vermont   $0.00

    • Virginia   $0.00

    • Washington   $0.00

    • West Virginia   $0.00

    • Wisconsin   $0.00

    • Wyoming   $0.00
