Harmar Highlander Enclosed VPL

(800) 647-0916

call for special offers
& product assistance

$8,090.00
+shipping

instant coupon

    Add to Cart
*Non-Continental U.S. States & Territories - please call for shipping charges.

Sales & Product
Questions
(800) 647-0916

Technical Support
1 (866) 294-4460

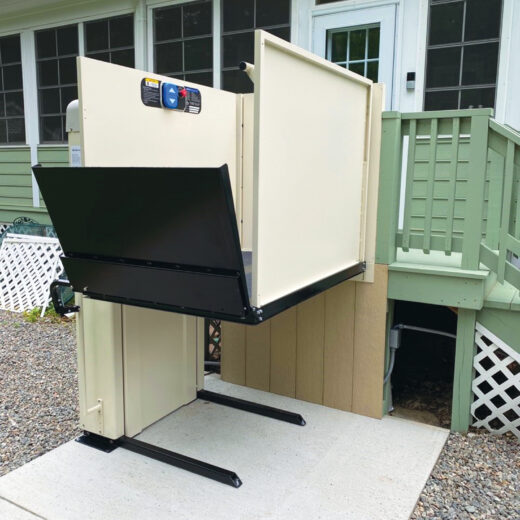

Harmar Highlander Enclosed VPL
Ratings
(0)
(0)
Write a Review!
Certifications: If this product has one.
ETL Listed
Product Description
The Highlander Enclosed VPL represents a new generation and evolution in VPL's. New technologies introduced in the Highlander Enclosed VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
  • Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.

Warranty

Product Specifications
Lifting Capacity
750 lb
Standard Lift Height
53"
Maximum Lift Height Upgrade
17"
Arrives Assembled
Yes
Drive System
1" diameter ACME Scrwe
Battery Powered Option
Yes
Constant Pressure Platform Control
Yes
Emergency Stop Platform Control
Pit Switch Standard, Safety Underpan Option
Alarm Button
Lighted Emergency Stop with Alarm Option
Keyed Platform Control
Optional
Call-Send Controls
One per Stop Included
Optional Call-Send Controls
Keyed and/or Wireless
Platform Type
Solid with Non-Skid Coating
Platform Size
36" x 60" x 42" (34" Usable)
Optional Platform Sizes
42"x 60" (40" Usable)
Platform Configuration
Straight Thru Access
Optional Platform Configurations
Same Side Entry-Exit, 90 Degree Adjacent Access
Upper Access Ramp
None Available
Lower Access Ramp
36" or 42" Fixed Ramp
Grab Rail
Optional
Guard Panel
42"
Maximum Stops
3
Lift Speed (FPM)
10
Other Options
Fire-Rated Doors, Automatic Door Openers

Options Available

  • Included for Stratos Enclosed VPL

    • Lower Landing Door   $0.00

    • Upper Landing Gate   $0.00

    • Pit Switch   $0.00

  • Lifting Height

    • 53" MAXIMUM LIFT HEIGHT   $0.00

      Harmar Highlander VPL

    • 77" MAXIMUM LIFT HEIGHT   $1,170.00

    • 101" MAXIMUM LIFT HEIGHT   $3,690.00

    • 125" MAXIMUM LIFT HEIGHT   $5,850.00

    • 149" MAXIMUM LIFT HEIGHT   $8,010.00

    • 173" MAXIMUM LIFT HEIGHT   $10,170.00

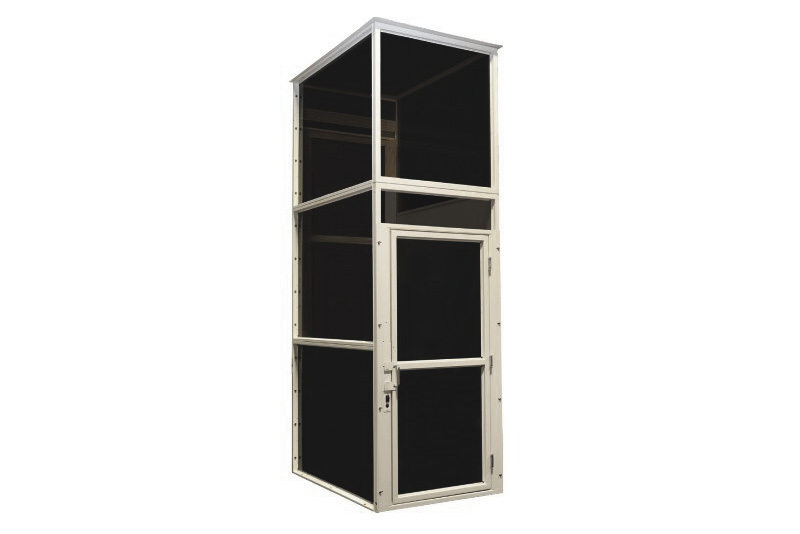

  • Enclosure Kit (Must Match VPL Lifting Height Above)

    • ENCLOSURE KIT FOR 53" MAXIMUM LIFT HEIGHT   $0.00

    • ENCLOSURE KIT FOR 77" MAXIMUM LIFT HEIGHT   $736.00

    • ENCLOSURE KIT FOR 101" MAXIMUM LIFT HEIGHT   $1,475.00

    • ENCLOSURE KIT FOR 125" MAXIMUM LIFT HEIGHT   $2,210.00

    • ENCLOSURE KIT FOR 149" MAXIMUM LIFT HEIGHT   $2,945.00

    • ENCLOSURE KIT FOR 171" MAXIMUM LIFT HEIGHT   $3,680.00

  • Enclosure Width

    • Enclosure Width must Match Platform Width Selected Below   $0.00

    • 36" Wide Enclosure   $0.00

    • 42" Wide Enclosure   $1,350.00

  • Enclosure Material

    • Steel Panels   $0.00

    • Acrylic Panels   $1,350.00

  • Residential/Commercial

    • Residential   $0.00

    • Commercial (Includes Lighted E-Stop w/Alarm, and Handrail)   $345.00

  • Power Source

    • AC POWERED   $0.00

    • READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah   $995.00

    • READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah   $1,136.00

  • Use Options

    • OUTDOOR USE   $186.00

    • COLD WEATHER PACKAGE (FOR STANDARD UPS)   $229.00

    • COLD WEATHER PACKAGE (FOR PLUS UPS)   $443.00

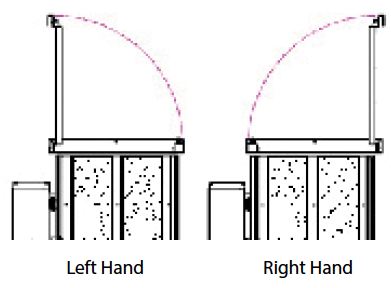

  • Tower Orientation

    • TOWER ON THE LEFT   $0.00

    • TOWER ON THE RIGHT   $0.00

  • Number of Stops

    • 2 STOPS   $0.00

    • 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL   $1,029.00

  • Platform Type (Width, Depth, Height)

    • Select From Options Below   $0.00

    • Straight Through (180 degrees)   $0.00

    • 36 X 60 X 42 STRAIGHT THROUGH PLATFORM   $736.00

    • 42 X 60 X 42 STRAIGHT THROUGH PLATFORM   $922.00

    • 90 Degree   $0.00

    • 36 X 60 X 42 90 Degree LEFT PLATFORM   $1,100.00

    • 36 X 60 X 42 90 Degree RIGHT PLATFORM   $1,100.00

    • 42 X 60 X 42 90 Degree LEFT PLATFORM   $1,286.00

    • 42 X 60 X 42 90 Degree RIGHT PLATFORM   $1,286.00

    • Same Side Entry/Exit (0 degrees)   $0.00

    • 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM   $1,100.00

    • 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM   $1,286.00

  • Platform Controls

    • Paddle Controls with Emergency Stop Button   $0.00

    • Emergency Stop Alarm with Lighted Button - Included   $165.00

  • Platform Options

    • Keylocks for Controls   $100.00

    • CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)   $136.00

  • Handrail (for Residential VPL)

    • No Handrail (for Residential VPL)   $0.00

    • 54" Handrail (for Residential VPL)   $136.00

    • 60" Handrail (for Residential VPL)   $165.00

  • Ramp Type

    • Pit, no Ramp, (Pit Switch is Included)   $0.00

    • 36" FIXED RAMP   $0.00

    • 42" FIXED RAMP   $100.00

  • Landing Gate Call/Send

    • CALL-SEND ROCKER SWITCH FOR LANDING GATE   $129.00

    • CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE   $215.00

  • Fire Rated Doors

    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH   $3,465.00

      36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH

    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH   $3,465.00

    • Temporarily Unavailable - 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH   $3,600.00

    • Temporarily Unavailable - 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH   $3,600.00

    • Temporarily Unavailable - 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH   $3,429.00

    • Temporarily Unavailable - 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH   $3,429.00

    • Temporarily Unavailable - 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH   $4,122.00

    • Temporarily Unavailable - 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH   $4,122.00

  • Automatic Opener

    • AUTOMATIC OPENER FOR LANDING GATE   $2,743.00

    • AUTOMATIC OPENER FOR LANDING DOOR   $2,743.00

  • Interlocks

    • INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.   $0.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH   $515.00

    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH   $515.00

  • General Enclosure Options

    • 3-Sided Enclosure (required for non-Enter/Exit Same Side)   $515.00

    • Enter/Exit Same-Side Upgrade   $515.00

    • 90 Degree Upper Landing Upgrade   $1,015.00

    • Upper 6'8" (20.7 m) Enclosure Door Upgrade LH   $858.00

    • Upper 6'8" (20.7 m) Enclosure Door Upgrade RH   $858.00

    • Middle 6'8" (20.7 m) Enclosure Door LH   $2,029.00

    • Middle 6'8" (20.7 m) Enclosure Door RH   $2,029.00

    • 42" Wide Upper 6'8" Enclosure Door Upgrade   $1,358.00

    • Acrylic Door Panel (Each)   $343.00

    • Platform Safety Pan   $515.00

    • Acrylic Roof (Requires 6'8" Enclosure)   $858.00

    • Power Ventilation System (for Enclosure WITH Roof)   $2,536.00

  • Top Door Upgrade (all doors include extra side panels)

    • Upper Landing Gate is Included   $0.00

    • 36" Steel LH   $2,550.00

    • 36" Steel RH   $2,550.00

    • 36" Acrylic LH   $3,736.00

    • 36" Acrylic RH   $3,736.00

    • 42" Steel LH   $2,758.00

    • 42" Steel RH   $2,843.00

    • 42" Acrylic LH   $4,029.00

    • 42" Acrylic RH   $4,029.00

  • Top Extra Side Panels (add to included Top Gate)

    • No Panels Needed - Ordered Top Door Upgrade   $0.00

    • 36" Steel   $850.00

    • 36" Acrylic   $879.00

    • 42" Steel   $1,172.00

    • 42" Acrylic   $1,172.00

  • Call Send Options

    • CALL/SEND STATION IN-FRAME CONTROL BOX - TOP/BOTTOM (EACH)   $186.00

    • KEYED CALL/SEND IN-FRAME STATION CONTROL BOX - TOP/BOTTOM (EACH)   $300.00

    • WIRELESS CALL/SEND CONTROLS FOR 1 LANDING   $343.00

    • WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS   $679.00

    • WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS   $1,015.00

    • In-Frame Call Station (EACH)   $186.00

  • Additional Options

    • PLATFORM SAFETY PAN   $515.00

    • TOWER BRACE WITH BRACKET   $265.00

    • PHONE JACK   $229.00

    • EMERGENCY TOWER LIGHT, BACK-UP   $229.00

    • EXTRA KEYS (EACH)   $36.00

    • CUSTOM COLOR (ALLOW 6-8 WEEKS)   $0.00

    • FLOAT LEVEL SWITCH   $229.00

    • lighted E-Stop w/Audible Alarm (for Residential Units)   $165.00

  • State Required Inspections / Permits

    • PERMIT (REQUIRED IN KENTUCKY)   $87.50

    • GEORGIA PERMIT & INSPECTION FEES   $250.00

  • Delivery Options

    • FLAT BED AND FORKLIFT DELIVERY   $539.00
