Product Description

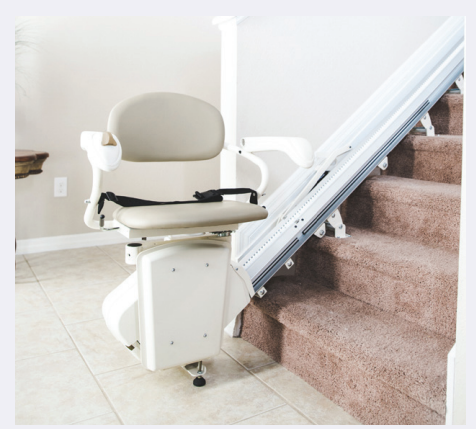

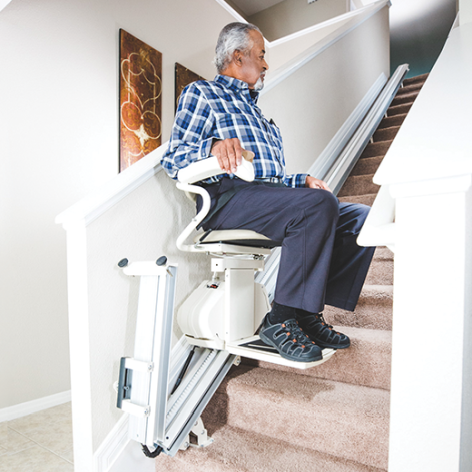

The Pinnacle SL300 Stair Lift is competitively priced with plenty of value. Very compact, it runs smoothly, and requires little to no maintenance.

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.

The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.

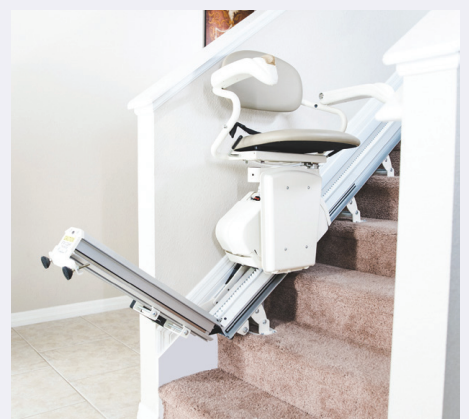

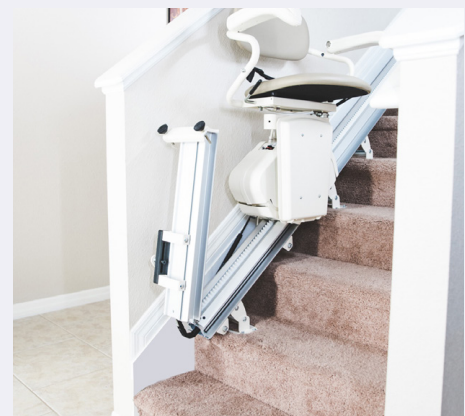

Harmar's exclusive automatic and mechanical folding rail removes obstructions and trip hazards at the lower landing area. Its operation is automatic, the user does not need to stop or have someone else assist. And since it’s mechanical, there are no additional switches or controls.
Product Specifications
Drive Type
Polymer Worm / Worm-Rack
Battery Powered
Yes
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
300 lb
Max Track Length, Standard
15.5'
Max Track Length, Optional
70'
Rail Angle, Min
32°
Rail Angle, Max
45°
Swivel Seat
Yes
Flip-Up Seat
Yes
Flip-Up Armrests
Yes
Constant Pressure Controls
Yes
Footrest Safety Sensor
Yes
Seat Width, Min
19"
Seat Depth
16"
Unit Footprint, Parked
13.6"
Digital Diagnostics Display
No
Key Lock
Yes

Options Available

  • Track Lengths Selection: 15' (180") is Standard *

    • * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.   $0.00

    • 15' (180") of Track   $0.00

    • Length in inches if Shorter than 180" (allow +7" for entry/exit)   $0.00

  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • Up to 3' of Additional Track   $235.00

    • Up to 5' of Additional Track   $372.00

    • Up to 7'9" (93") of Additional Track   $515.00

  • Additional Brackets (comes with standard)

    • Standard Brackets   $29.00

    • Tall Brackets   $29.00

  • Options

    • Seat Belt   $0.00

    • Track Cut to Custom Length (Required for any track cut)   $136.00

    • Key Lock on Chasis   $136.00

  • Call Stations

    • Top & Bottom Call-Send Stations   $0.00

  • Orientation (looking UP the staircase)

    • The stair lift will be on the left   $0.00

    • The stair lift will be on the right   $0.00

  • Installation

    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout   $0.00

    • Self Installation   $0.00

    • Nationwide Installation   $599.00

    • Nationwide Installation and Measurement Service   $749.00

    • Double Stair Lift Installation Service - Per Stair Lift   $437.50

    • Stair Lift Removal and Disposal   $499.00

  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs   $300.00

    • Installation In Remote or Limited Access Location   $285.00

  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   $0.00

    • 1. Overall length   $0.00

    • 2. Top stair to bottom stair   $0.00

    • 3. Staircase width   $0.00

    • 4. Bottom clearance   $0.00

    • 5. Rise of one step   $0.00

    • 6. Tread of one step   $0.00

    • 7. Diagonal   $0.00

    • 8. Door at the top   $0.00

    • Need help measuring? Please see our "How to Measure" page.   $0.00
