Harmar Pinnacle Stair Lift HD

SERVICE / REPAIR
(855) 879-8090phone icon

Stair Lift Repair and Servicing
Certifications: If this product has one.
instant coupon
$7,250.00
+shipping
    Add to Cart
*Non-Continental U.S. States & Territories
- please call for shipping charges.

Sales & Product
Questions
(800) 746-5647

Technical Support
1 (866) 294-4460


Click Here to Submit Your Photos
Product Description
Ratings
(0)
(0)
Write a Review!

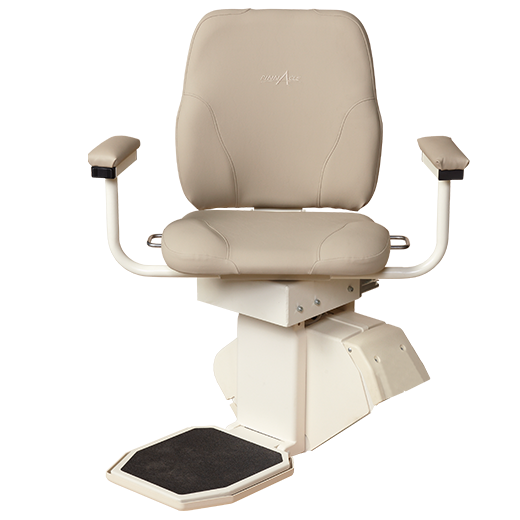

The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
Product Specifications
Drive Type
Helical Worm Drive
Battery Powered
Yes
Self Installable
Yes
Basic Installation Included
No
Standard Capacity
600 lb
Max Track Length, Standard
15.5'
Max Track Length, Optional
40'
Rail Angle, Min
32°
Rail Angle, Max
52°
Track Material
Clear Anodized Aluminum
Swivel Seat
Yes
Flip-Up Seat
Yes
Flip-Up Armrests
No
Constant Pressure Controls
Yes
Footrest Safety Sensor
Yes
Seat Width, Min
24"
Seat Depth
16"
Warranty
3-Year on Components, 10-Year on Rack , 1-Year on Batteries
Call Stations Included
2 Wireless
Digital Diagnostics Display
No
Key Lock
Yes



Options Available

  • Track Lengths Selection: 15' (180") is Standard *

    • * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.   $0.00

    • 15' (180") of Track   $0.00

    • Length in inches if Shorter than 180" (allow +7" for entry/exit)   $0.00

  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • Up to 3' of Additional Track   $250.00

    • Up to 5' of Additional Track   $393.00

    • Up to 7'9" (93") of Additional Track   $536.00

  • Additional Brackets (comes with standard)

    • Standard Brackets   $29.00

    • Tall Brackets   $29.00

  • Options

    • Track Cut to Custom Length (Required for any track cut)   $143.00

    • Key Lock on Chasis   $143.00

    • Seatbelt Extension   $100.00

    • Manual Lowering Tool   $50.00

  • Call Stations

    • Top & Bottom Call-Send Stations   $0.00

  • Orientation (looking UP the staircase)

    • The stair lift will be on the left   $0.00

    • The stair lift will be on the right   $0.00

  • Installation

    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout   $0.00

    • Self Installation   $0.00

    • Nationwide Installation   $599.00

    • Nationwide Installation and Measurement Service   $749.00

    • Double Stair Lift Installation Service - Per Stair Lift   $437.50

  • Installation Special Cases

    • Installation On Concrete, Steel, or Tile Stairs   $300.00

    • Installation In Remote or Limited Access Location   $285.00

    • Additional Charge for Installation in the States of: New York, and Massachusetts   $150.00

    • Existing Stair Lift Removal   $499.00

  • Measurements

    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   $0.00

    • 1. Overall length   $0.00

    • 2. Top stair to bottom stair   $0.00

    • 3. Staircase width   $0.00

    • 4. Bottom clearance   $0.00

    • 5. Rise of one step   $0.00

    • 6. Tread of one step   $0.00

    • 7. Diagonal   $0.00

    • 8. Door at the top   $0.00

    • Need help measuring? Please see our "How to Measure" page.   $0.00
