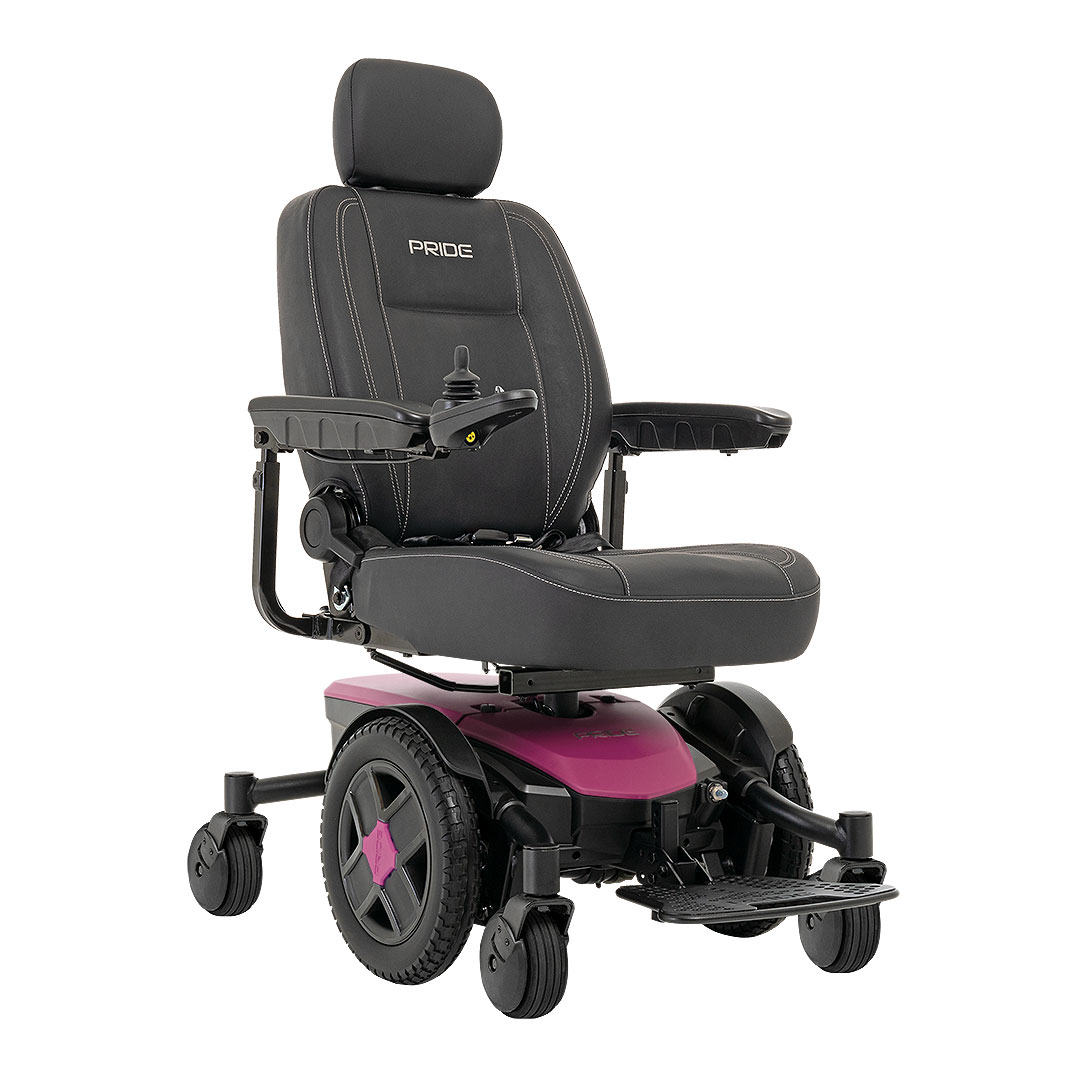

Pride Jazzy Evo 613FDA Class II medical device*
- this here if they are not any documents
- Brochure
- Specifications
- Owner's Manual
- Warranty
- please call for shipping charges.

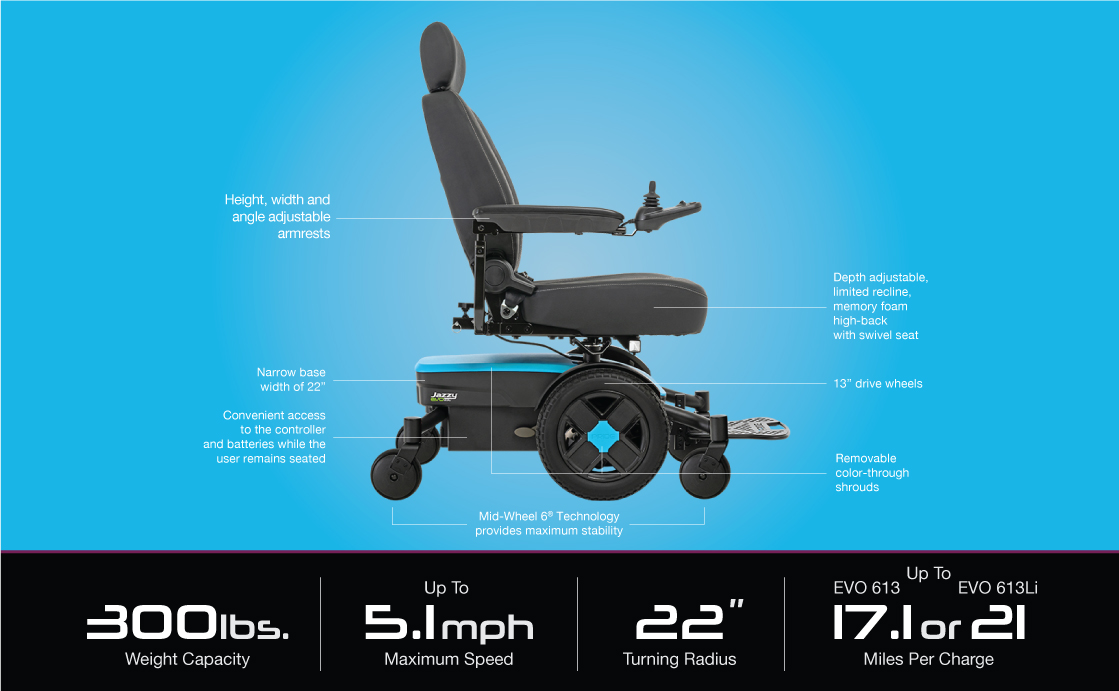

The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac Suspension and exclusive Mid-Wheel 6 Technology that provide you with a smoother, stable ride.
And it does all that while pushing the limits of mileage and speed capabilities. A single charge can carry you up to 21 miles with the lithium battery, and top speeds up to 5.1 mph.
The Jazzy EVO 613 series of power wheelchairs with lithium batteries represent a philosophy shared at Pride Mobility: "If you're not constantly improving, ever innovating, and pushing boundaries, you might as well fall behind."
If you select the Lithium Iron Phosphate Battery option you will get:
- Faster charging time
- Sustained power performance
- Lighter weight
- More useable energy
- Longer life
Options Available
- Color (all are matte colors)
- Batteries
U-1 AGM Batteries (set of 2) $0.00
Lithium Iron Phosphate (not airline compliant) $440.00
Choosing the Lithium Iron Phosphate Battery will also choose the appropriate other accessories required for the battery. $0.00
- Joystick Mount (In-line Supplied with Chair)
Swing-away Mount, Left $245.00
Swing-away Mount, Right $245.00
- Seating
Captain Seat, Depth-Adjustable, Memory Seat, Limited Recline, High Back $0.00
16″W×16″–18″D $0.00
18″W×18″–20″D $0.00
20″W×18″–20″D $0.00
Solid Seat Pan, Depth-Adjustable, Comfort Seat, Limited Recline, High Back $0.00
16″W×16″–18″D $0.00
18″W×18″–20″D $0.00
Solid Seat Pan, Deluxe Contour Seat, Limited Recline, High Back, with Solid and Full-Length Armrests $0.00
20″W×20″D $0.00
- Leg Rests
Elevating Leg Rests, 8.5" x 6" Footplates $342.00
Swing Away Leg Rests, 7.25" x 6" Footplates $172.00
Swing Away Leg Rests, 8.5" x 6" Footplates $172.00
- Leg Rest Accessories
Heel Loops for Swing-away Leg Rests (pair) $53.00
Heel Loops for Elevating Leg Rests (pair) $53.00
Residual Limb Support, Left $342.00
Residual Limb Support, Right $342.00
- Armrests (Required - Armrests will be Matched to the Chair)
Height Adjustable Flip-Up Armrests - Left $90.00
Height Adjustable Flip-Up Armrests - Right $90.00
- Rear Accessories (Only One Can Be Attached at a Time)
Rear Basket for Deluxe Contour Seat $118.00
Rear Basket for Comfort/Memory Seat $118.00
Cane & Crutch Holder for Deluxe Contour Seat $110.00
Cane & Crutch Holder for Comfort/Memory Seat $110.00
Oxygen Tank Holder for Deluxe Contour Seat $118.00
Oxygen Tank Holder for Comfort/Memory Seat $140.00
Walker Holder for Deluxe Contour Seat $125.00
Walker Holder for Comfort/Memory Seat $103.00
- Other Accessories
Medium Weather Cover $168.00
Cup Holder for Deluxe Contour Seats $32.00
Cup Holder for Comfort/Memory Seats $30.00
Flag Holder for Deluxe Contour Seats $35.00
Flag Holder for Comfort/Memory Seats $35.00
Cell Phone Holder $50.00
Saddle Bag 11.75" x 17" $40.00
Saddle Bag 12.5" x 9.875" $40.00
- Lap Belt (60" included with all orders)
60" Included $0.00
50" $39.90
70" $39.90
80" $39.90
90" $39.90
- Military Branch Patches
- Warranty
1 Year In-Home Parts & Labor Warranty $0.00
2 Year In-Home Labor Warranty $269.00
How To Measure For A Power Wheelchair
alt="Wheelchair Measuring Diagram - Side"/>Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.
Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.
Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.
Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.
Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.
