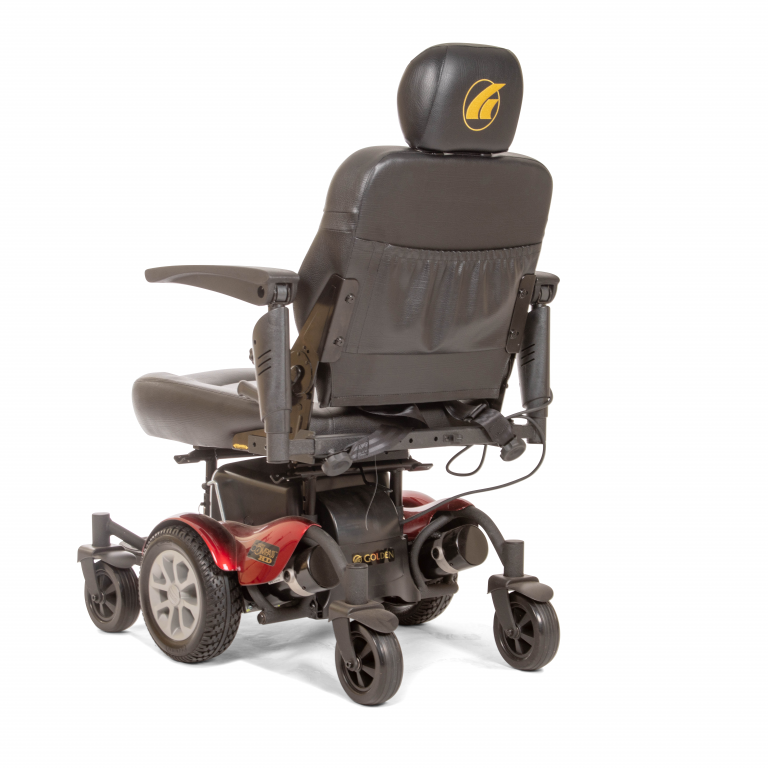

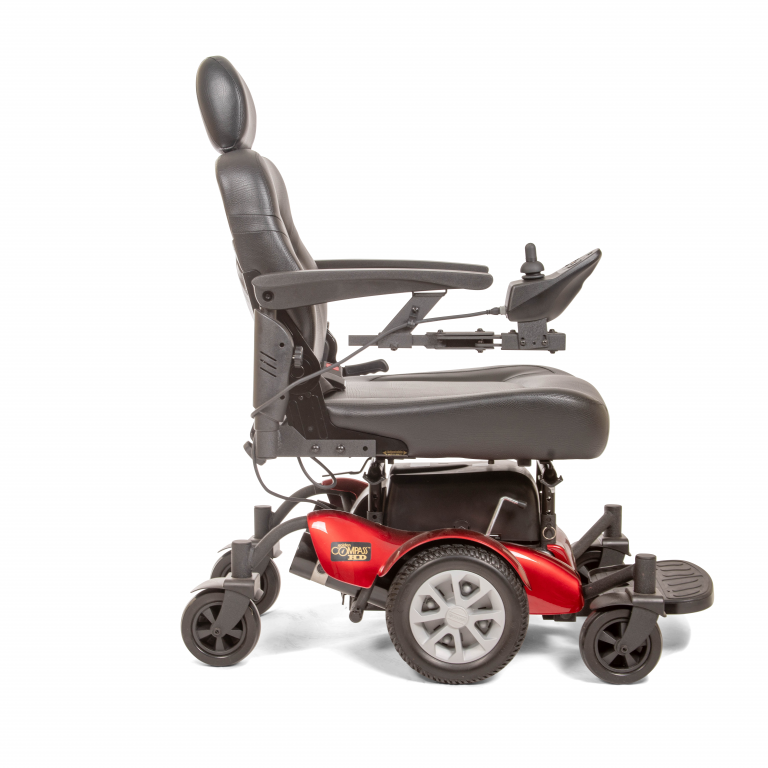

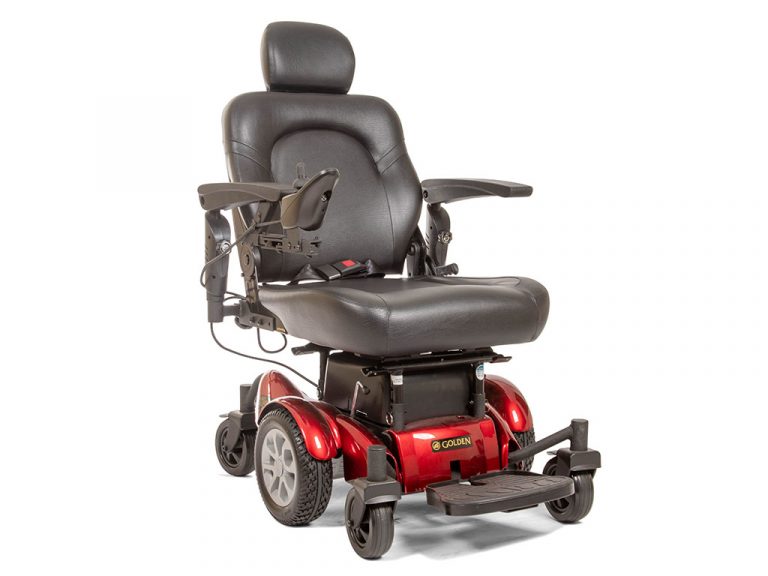

The heavy duty version of Golden's popular Compass power wheelchair features larger 22NF batteries, a wide Captain's seat, and a 450 pound capacity. You can choose from several other types of seats up to 24" wide, including pan seats. A Proflex seating frame is also an option.

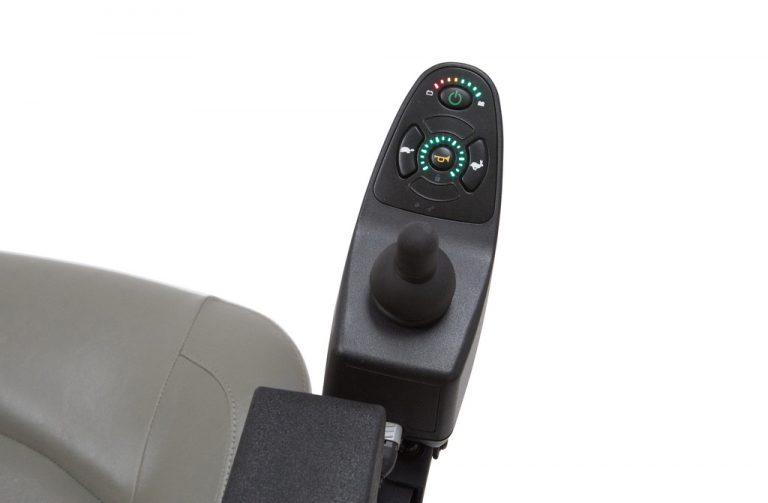

Control the Compass HD with the standard Dynamic Shark joystick. This controller is fully programmable and can handle up to 75 amp at peak levels. Other features of the Compass HD include adjustable seat posts, a sliding seat bracket, a fold-flat seat, and a 3-way adjustable foot rest.
Weight Capacity450 lb
Overall Length39.8"
Overall Width25"
Range12 mi
Top Speed4 mph
Turning Radius20"
Weight, Total209 lb
Weight, Base90 lb
Weight, Seat35 lb
Weight, Batteries70 lb
Minimum Seat Height20.5"
Maximum Seat Height23.5"
Drive Wheels10" Flat Free
Caster Wheels6" Flat Free
Controller TypeDynamic Shark, 75 Amp Programmable
Charger TypeOff-board, 5 Amp
Battery Type22NF x 2
  • Color
    • Candy Apple Red   $0.00

      Candy Apple Red
    • Blue   $0.00

  • Batteries
    • 22NF Batteries (set of 2)   $0.00

      No Image
  • Controller Position
    • Controller On The Left   $0.00

      No Image
    • Controller On The Right   $0.00

      No Image
  • Seating
    • High Back Captain's Chair, 20" W x 20" D   $0.00

      No Image
    • High Back Captain's Chair, 22" W x 20" D   $0.00

      No Image
    • High Back Captain's Chair, 24" W x 20" D   $0.00

      No Image
    • Custom Seat Sizes, Pan Seats, or Proflex Seating Frames   $360.00

      No Image
  • Seat Color
    • Two-Tone Charcoal Vinyl   $0.00

      No Image
    • Two-Tone Sand Vinyl   $0.00

      No Image
  • Leg Rests & Supports
    • Adjustable Footplate   $0.00

      No Image
    • Swing Away Footrests   $168.00

      No Image
    • Elevating Leg Rests   $256.00

      No Image
  • Accessories
    • Lap Belt   $0.00

      No Image
    • Large Power Chair Cover   $139.00

      Power Chair Cover, Large
    • Cane Holder Tube   $38.40

      Cane Holder Tube
    • Forearm Crutch Holder   $56.00

      Crutch Holder
    • Flag   $15.35

      Safety Flag
  • Accessories Requiring a Rear Mounting Bracket
    • Rear Mounting Bracket   $25.60

      No Image
    • Rear Basket   $57.60

      Rear Basket
    • Walker Holder   $84.50

      Walker Holder
    • Oxygen Tank Holder   $105.60

      Oxygen Tank Holder
    • Quad Cane Holder   $69.25

      Quad Cane Holder
  • Service & Delivery
    • Free 1 Year In-Home Parts & Labor Coverage   $0.00

      No Image
    • 2 Year In-Home Extended Labor Warranty   $159.00

      No Image
    • 3 Year In-Home Extended Labor Warranty   $220.00

      No Image
    • Standard Delivery   $0.00

      No Image
Wheelchair Measuring Diagram - Front
Wheelchair Measuring Diagram - Side

 Seat Width: Measure the widest point of your body between the knees and hips. Add at least one inch- to this measurement for some extra breathing room. If you typically wear bulky or heavy clothing, such as during outdoor use in winter, you may wish to add two inches to this measurement to give yourself adequate room to move.


Back Height: This measurement will determine the distance from the seat base to the top of the wheelchair's seat back. Typically, you'll want to measure from the most posterior point of your body to the center point between your shoulder blades. Some users may prefer a higher back for added support, but remember that the higher the back of the chair is, the less room you'll have to rotate your upper body while seated.


Front Seat to Floor: Measure your leg from the back of your knee to the sole of your foot. Unless you are choosing a foot-propelled wheelchair, you will want to add two inches to this measurement to give yourself plenty of clearance for a footrest.


Seat Depth: Measure from the most posterior point of your body to the interior of your knee, deducting two inches from the total. You may require a greater amount of leg overhang to lift your legs during use; if so, consult your rehabilitation professional for guidance on adjusting your measurements accordingly, or speak with one of our power wheelchair specialists by dialing 1 (800) 794-9813 to get the right fit.


Hanger Angle: This measurement specifies how far your toes will extend from your body when seated, and is measured horizontally. The tighter your hanger angle, the less space you'll need to turn your wheelchair around. The flexibility of your legs and knees may also impact the hanger angle you will want to choose. Most wheelchairs have a hanger angle of about 70 degrees, and the farthest hanger angle available on any wheelchair is 60 degrees. Pediatric chairs have a hanger angle of 90 degrees to accommodate the shorter leg length of child users. A hanger angle is difficult for a wheelchair user to measure on their own, so we highly recommend calling one of our power wheelchair experts at 1 (800) 794-9813 to help you find a chair with the optimal hanger angle for your needs.


1 review
Certified Customer
Its OK
Apr 8, 2017 10:06 AM

A Little About Myself

Retired college prof


Good looking unit


Arm & foot rest needs attention

Service & Delivery

White glove del. was on invoice but came street side del. and left for me to find a way to get it out of street into home and setup. Then we discovered no batteries or instruction book.
Arm supports not long enough to help in exiting chair!
