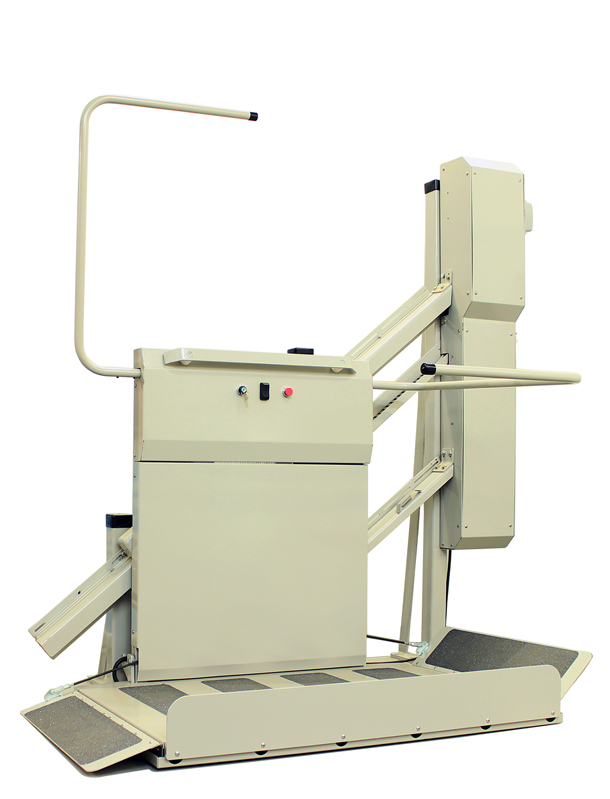

Titan Incline Platform Lift - Commercial

spacer

model: AC-105

Titan Incline Platform Lift - Commercial
Click to enlarge
spacer

Additional Resources
Call (800) 790-4792 to learn more about our special offers.
Your Price$14,999.00
Regular Price$16,995.00
Additional Shipping?Yes
*Non-Contiguous U.S. States & Territories - please call for shipping charges.

Warranty Info

Click Here
Product Review
(0)
(0)
Installation Included
No Sales Tax in most states.

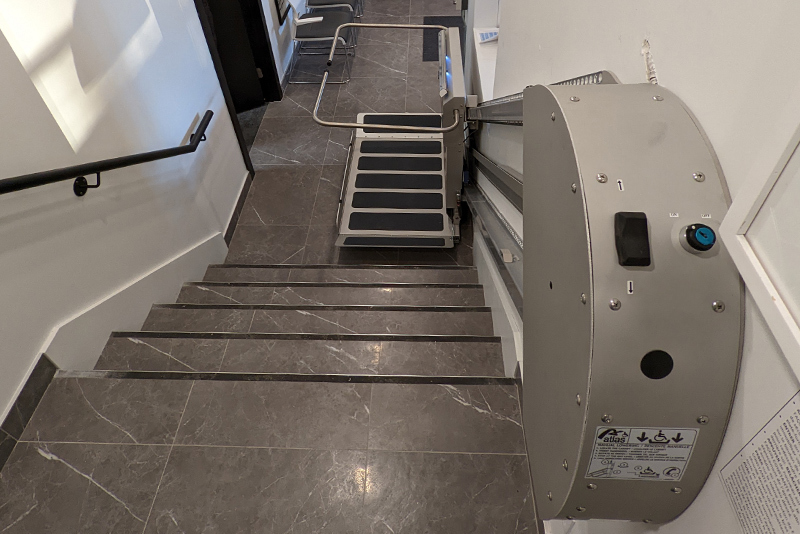

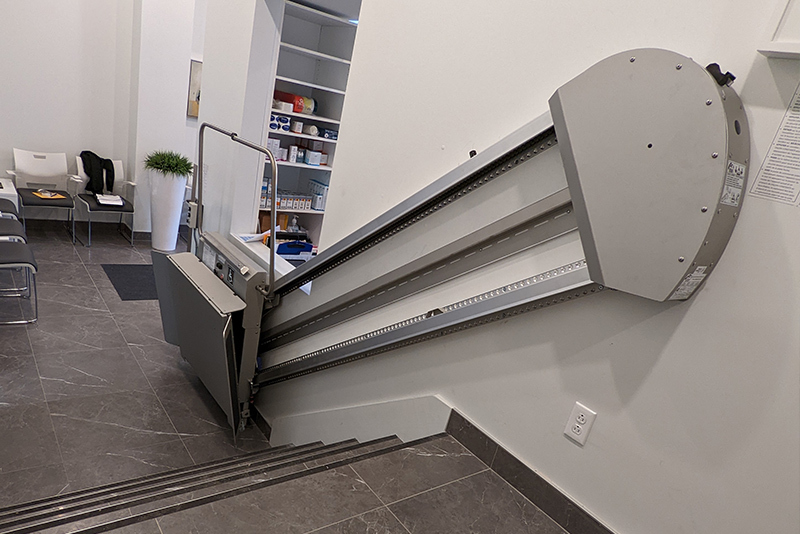

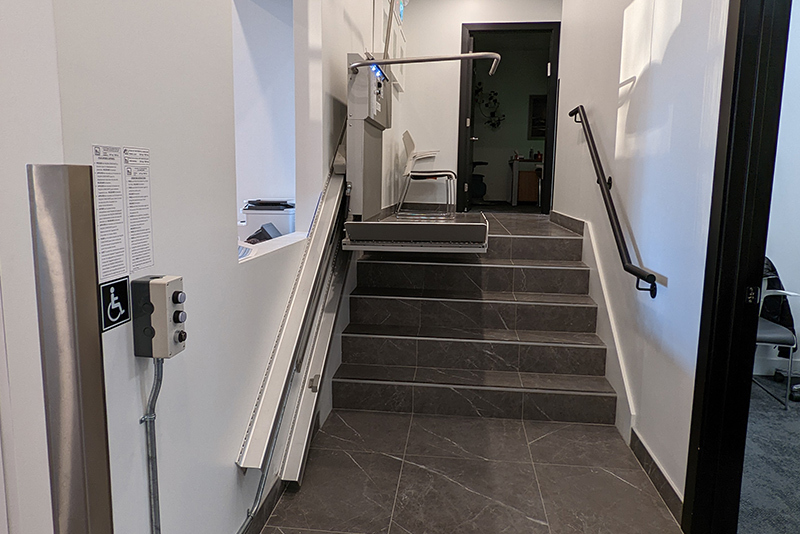

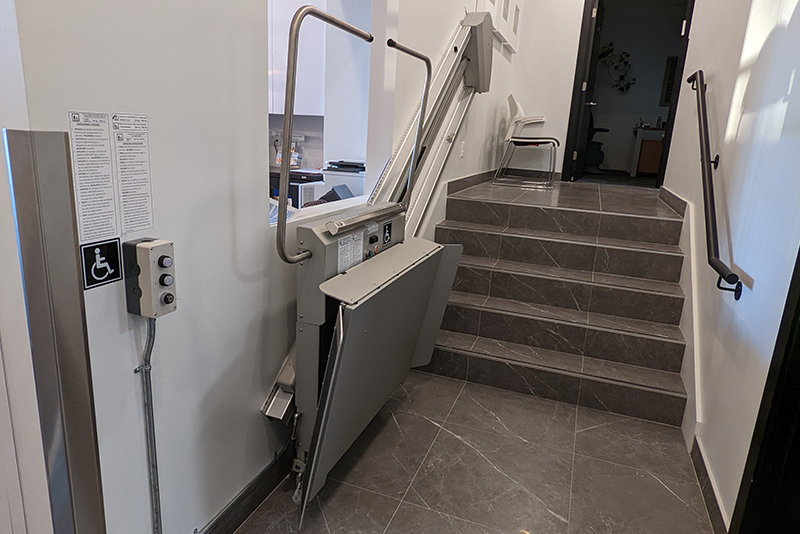

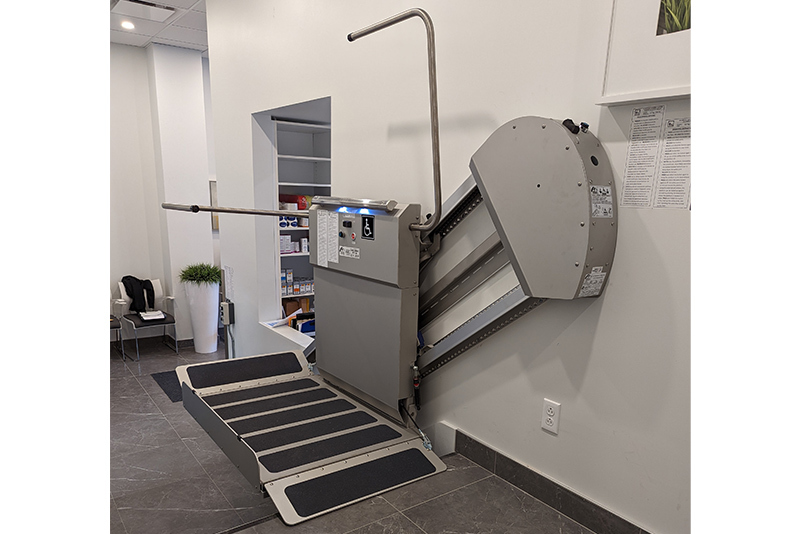

The Titan Incline Platform Lift - Commercial is the ideal solution for making stairs in a commercial building wheelchair accessible. This particular model offers a lifting capacity of 550 pounds (one person in a wheelchair). While built to fulfill code requirements in much of the United States, additional options can be configured to fulfill requirements for your specific locale. To start the process, call our Commercial Incline Platform Lift experts and we will be happy to provide advice and the most ideal solution for your application.

Base pricing includes track, which is cut to the length needed for your staircase, as well as a "straight through" entry/exit platform. Custom platform sizes are available and can be built to your requirements. Safety features and additional options include: Call/send controls with a key lock (post, surface, or flush mount), fold down seat, and handsfree phone. Installation is included at this unbeatable price.

Give us a call to learn how AmeriGlide can help make your commercial building wheelchair accessible with the Titan Incline Platform Lift.

Drive TypeSprocket and Chain Drive
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedYes
Standard Capacity550 lb
Max Track Length, Standard16'
Max Track Length, Optional31'
Rail Angle, Min25°
Rail Angle, Max50°
Track MaterialAluminum
Swivel SeatNo
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorNo
Track Footprint13"
Call Stations IncludedUpper Landing on Drive Column, Bottom has Options
Digital Diagnostics DisplayNo
Key LockYes
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Information

    • $0.00
      No Image
      Please Call For More Information
      spacer
  • Track Length

    • $0.00
      No Image
      Track Length Required
      spacer
  • Cab Entrance/Exit

    • $0.00
      Straight Through
      Straight Through
      spacer
    • $1,020.00
      AC105-90 Degree Entrance
      90 Degree
      spacer
  • Orientation (looking UP the staircase)

    • $0.00
      No Image
      Rail On The Left
      spacer
    • $0.00
      No Image
      Rail On The Right
      spacer
  • Platform

    • $0.00
      No Image
      30" Wide x 40" Long (requires at least a 36" wide stair case)
      spacer
    • $0.00
      No Image
      30" Wide x 44" Long (requires at least a 36" wide stair case)
      spacer
    • $1,445.00
      No Image
      Custom Size (28" to 32" Wide x 38" to 48" Long)
      spacer

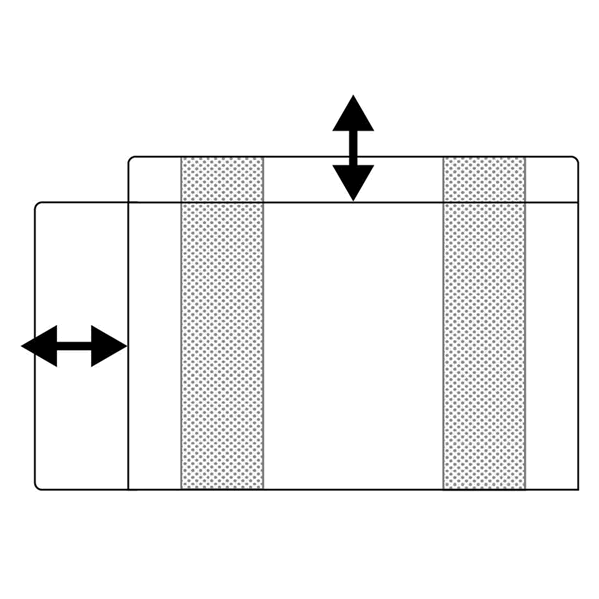

  • Custom Platform Dimensions

    • $0.00
      No Image
      Custom Platform Width (28" to 32")
      spacer
    • $0.00
      No Image
      Custom Platform Length (38" to 48")
      spacer
  • Bottom Landing Call w/Key Lock

    • $0.00

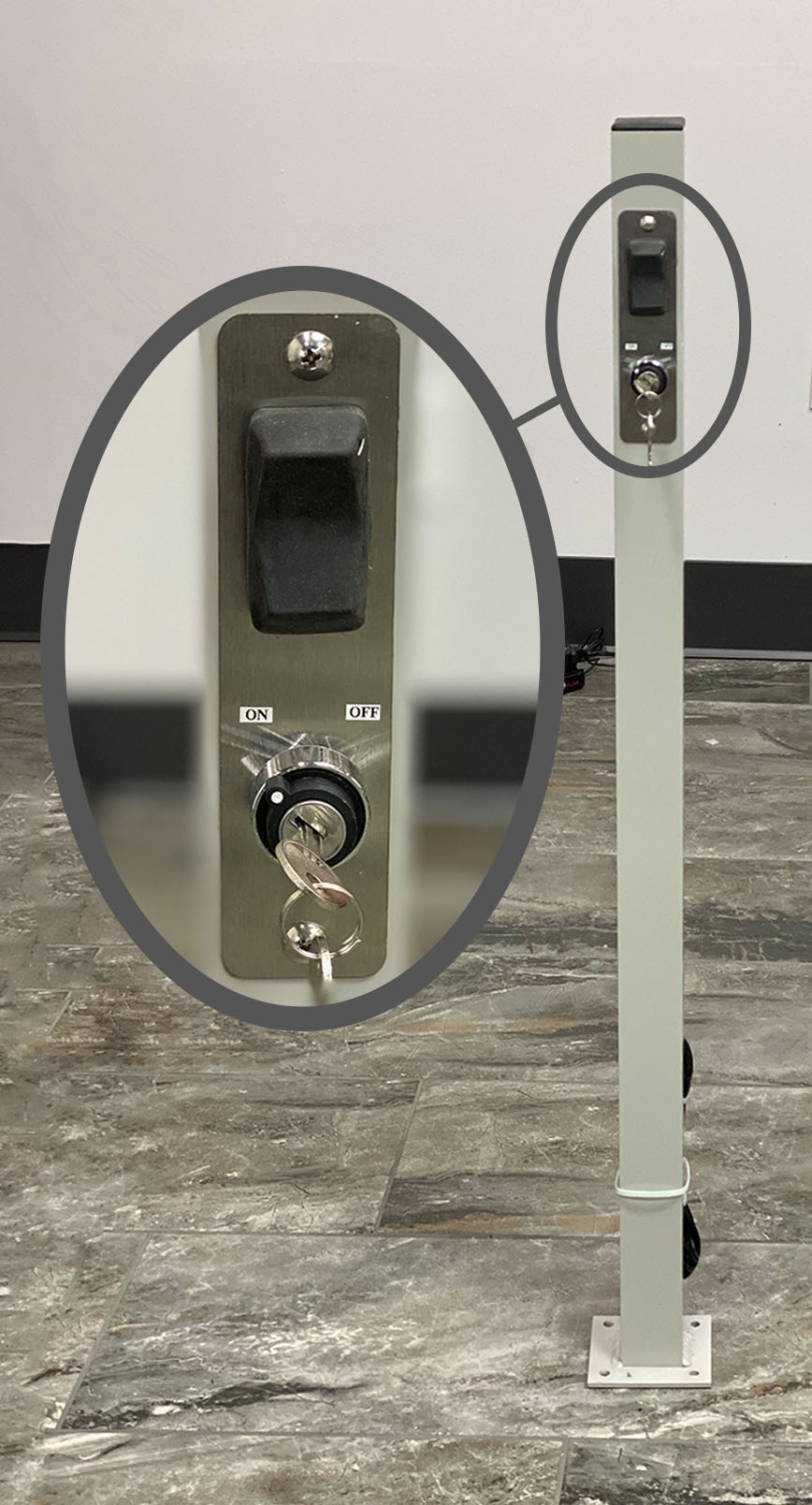

      Hercules DC 750 Call/Send Post
      Post Mount
      spacer
    • $0.00

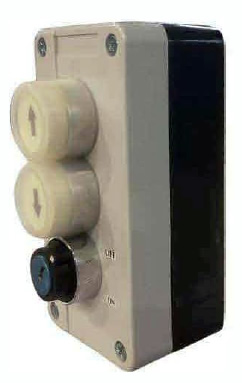

      Hercules DC 750 Surface Mount Call/Send
      Surface Mount
      spacer
    • $0.00

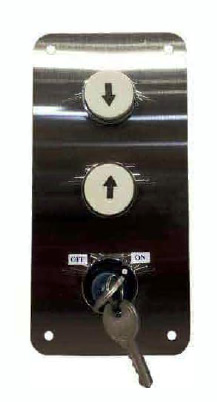

      Hercules DC 750 Flush Mount Call/Send
      Flush Mount
      spacer
  • Options

    • $450.00
      No Image
      Fold Down Seat
      spacer
    • $450.00
      No Image
      Handsfree Phone
      spacer
    • $965.00
      No Image
      Custom Color (Call for Color Availability)
      spacer
    • $116.00
      No Image
      Mounting Posts (if not wall mounted) One Per Every 2 Steps - Price Each
      spacer
  • Installation (Customer must pull required permits.)

    • $0.00
      No Image
      Basic Installation Included
      spacer
    • $300.00
      No Image
      Install on Concrete, Steel, or Tile Stair Treads
      spacer
    • $400.00
      No Image
      Install on Concrete or Concrete Block Walls
